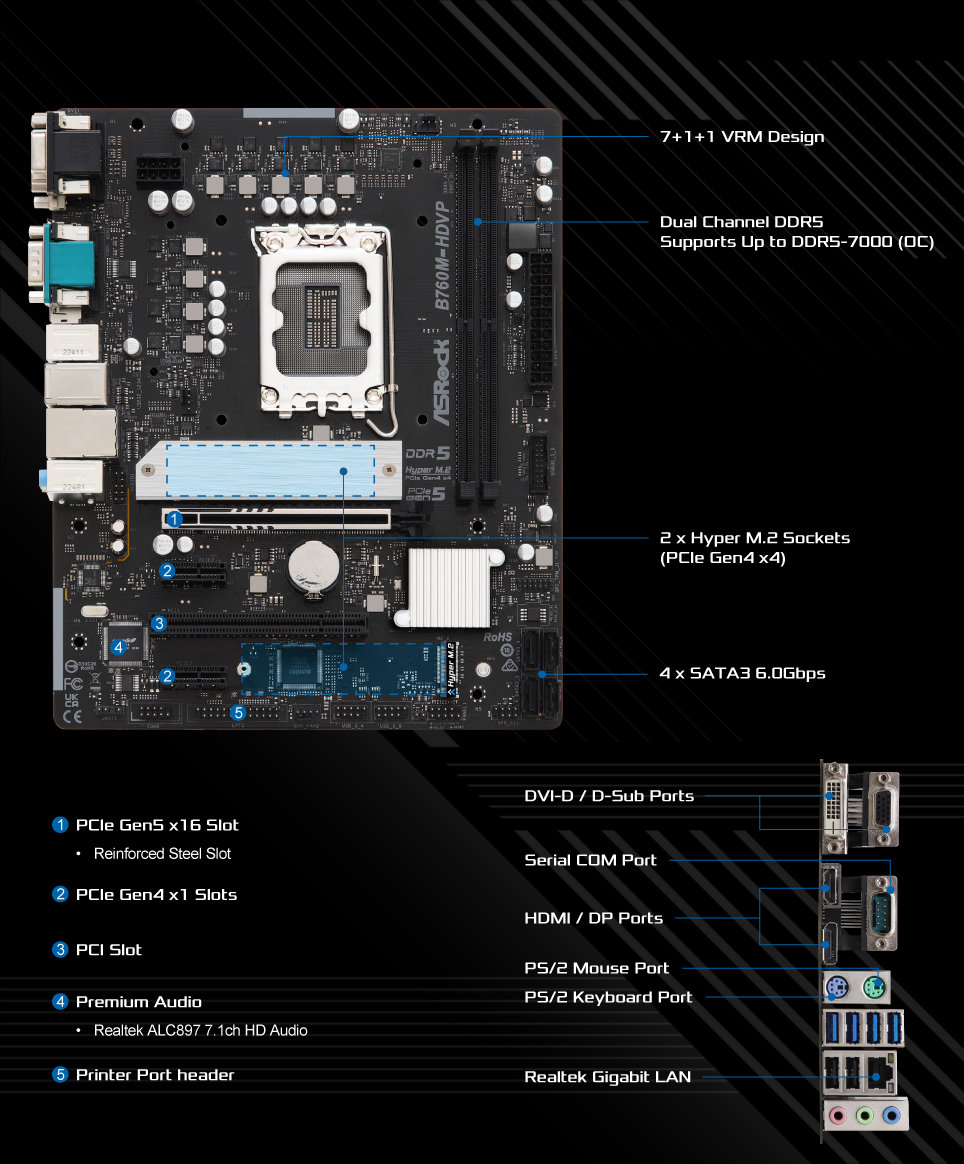

• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphics)
  - Dual Channel DDR5
  Rock-Solid Durability

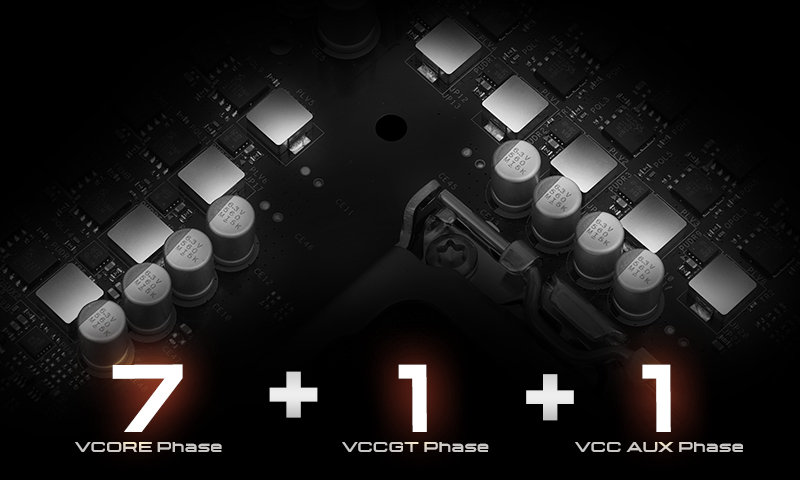

  - 7+1+1 Power Phase
  EZ Update
  - ASRock Auto Driver Installer
• CPU
  - Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
  - Supports Intel^® Hybrid Technology
  - Supports Intel^® Turbo Boost Max 3.0 Technology
  - Supports Intel^® Thermal Velocity Boost (TVB)
  - Supports Intel^® Adaptive Boost Technology (ABT)
• Chipset
  - Intel^® B760
• Memory
  - Dual Channel DDR5 Memory Technology
  - 2 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
  - Max. capacity of system memory: 128GB
  - Supports Intel^® Extreme Memory Profile (XMP) 3.0



  *1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
  1DPC 2R Up to 6600+ MHz (OC), 5200 MHz Natively.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  - Intel^® Xe Graphics Architecture (Gen 12)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz



  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - Realtek 8111H
• Slots
  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
  ASMedia ASM1083:
  - 1 x PCI Slot



  *Supports NVMe SSD as boot disks
• Storage
  CPU:

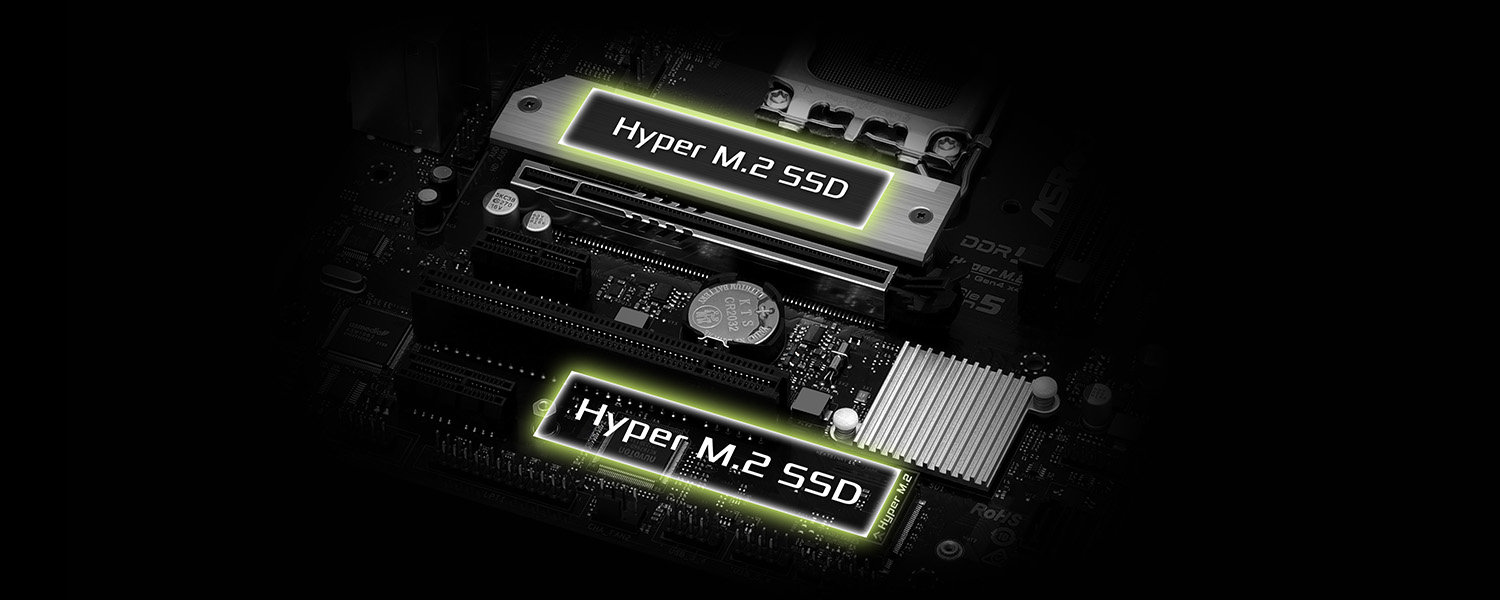

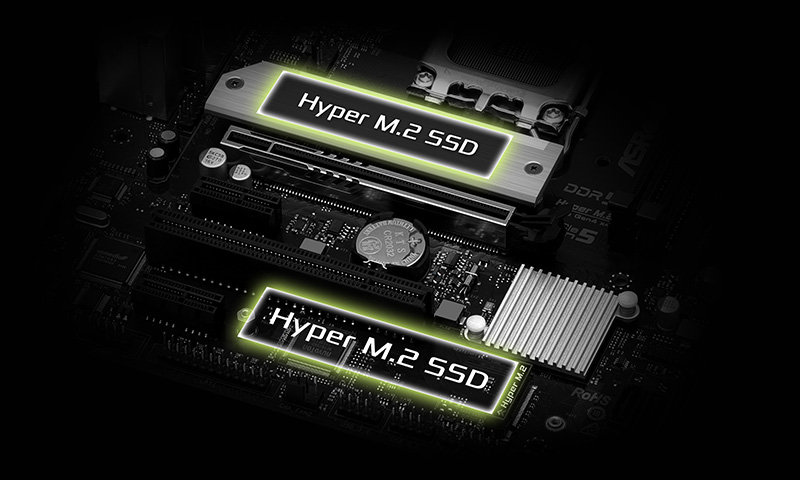

  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 4 x SATA3 6.0 Gb/s Connectors



  *Supports Intel^® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
• RAID
  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
  - 2 x USB 3.2 Gen2 Type-A (Rear)
  - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)



  *All USB ports support ESD Protection
• Connector
  - 1 x Print Port Header
  - 1 x COM Port Header
  - 1 x SPI TPM Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis Fan Connector (4-pin)**
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)



  *CPU_FAN1 supports the fan power up to 1A (12W).

  **CHA_FAN2 supports the fan power up to 1A (12W).

  ***CHA_FAN1/WP supports the fan power up to 2A (24W).
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

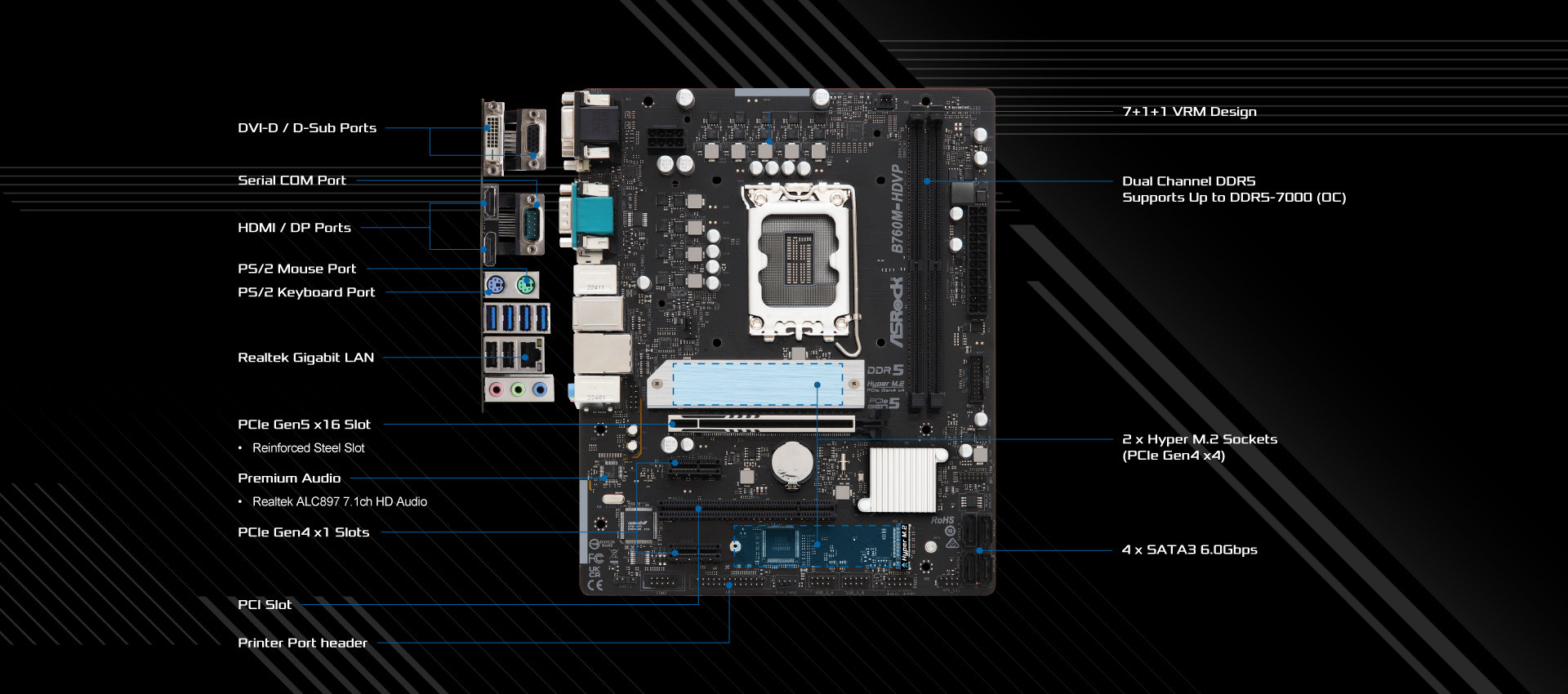

• Rear Panel I/O
  - 1 x PS/2 Keyboard Port
  - 1 x PS/2 Mouse Port
  - 1 x Serial Port: COM1
  - 1 x D-Sub Port
  - 1 x DVI-D Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 2 x USB 3.2 Gen2 Type-A Ports
  - 2 x USB 3.2 Gen1 Type-A Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  - ASRock Motherboard Utility (A-Tuning)
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash
  - ASRock Easy RAID Installer



  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories
  - 1 x User Manual
  - 1 x I/O Shield
  - 2 x SATA Data Cables
  - 2 x Screws for M.2 Sockets
  - 1 x Standoff for M.2 Socket
• Form Factor
  - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
• OS
  - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certifications
  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
