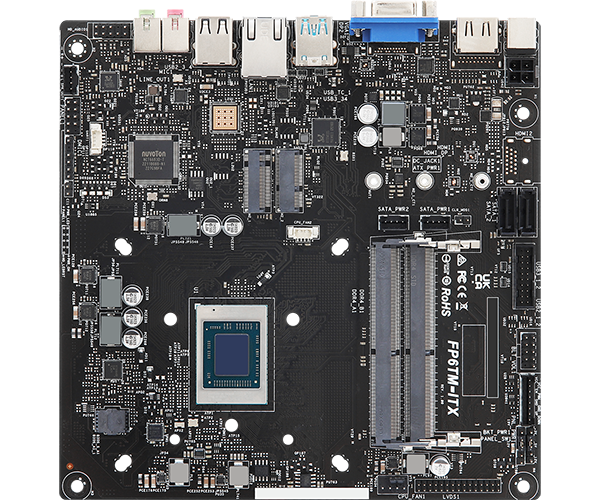

FP6TM-ITX

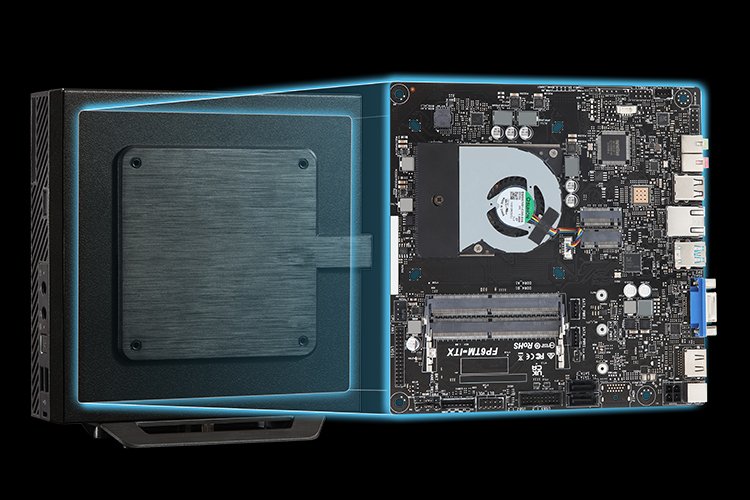

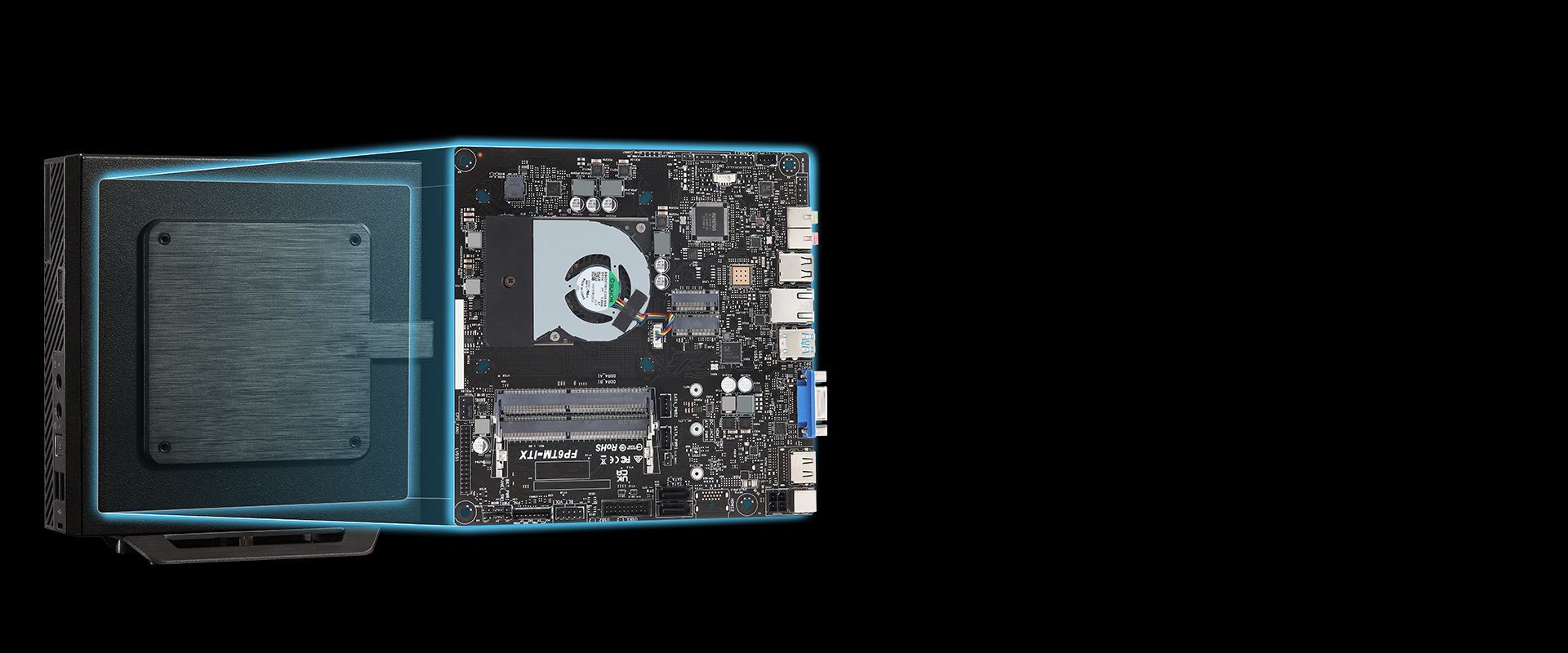

Thin Mini-ITX

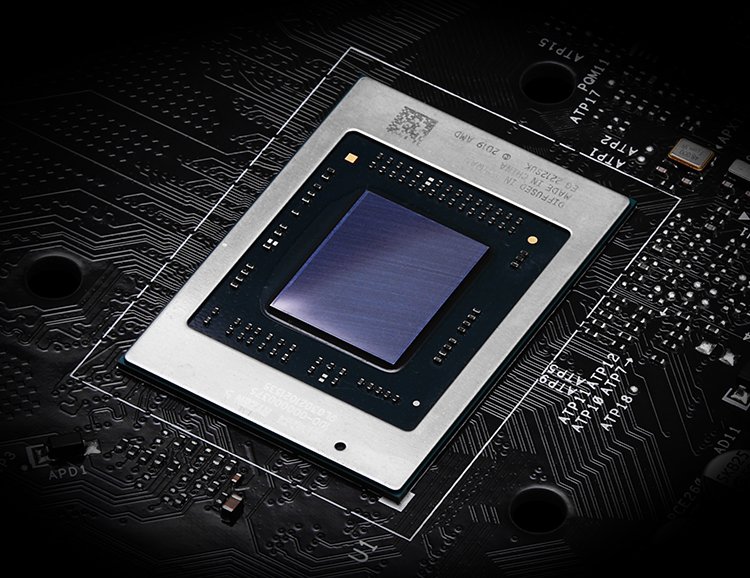

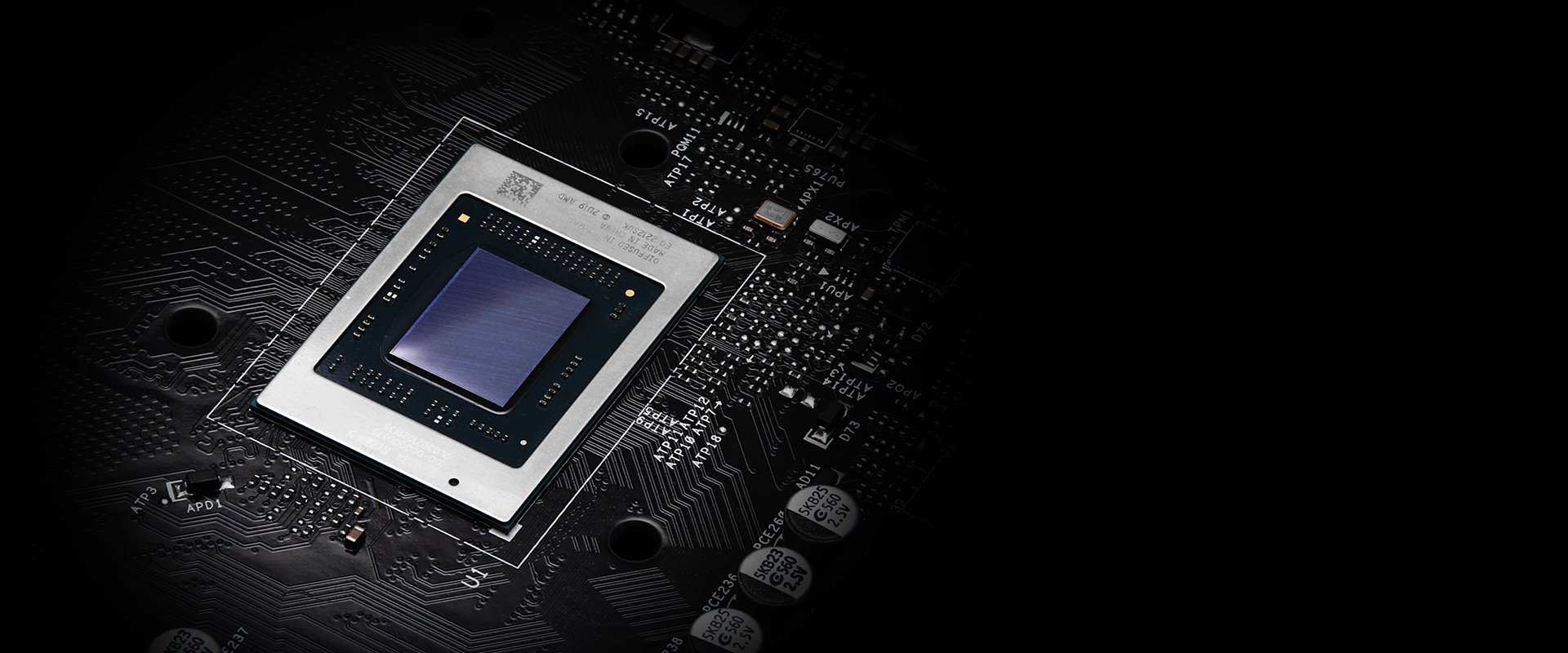

AMD Ryzen 4000U/5000U/7000U Series Mobile CPU

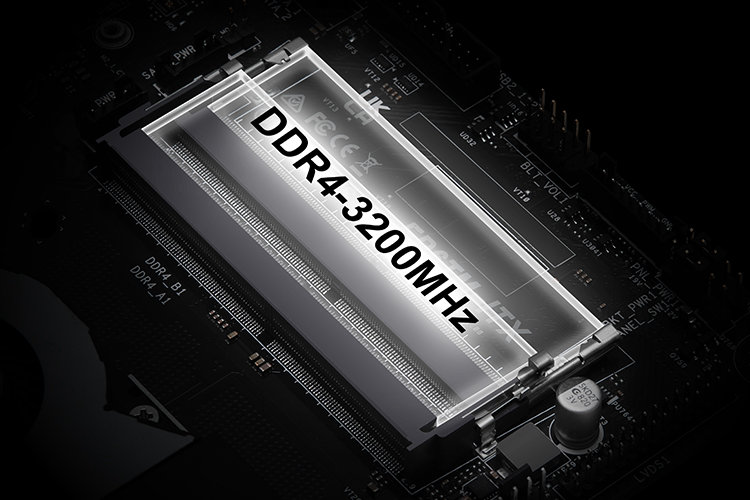

Supports Dual Channel DDR4-3200MHz, Max. 64GB (non-ECC)
Graphics Output Options: HDMI, D-Sub (co-lay DisplayPort)
Supports LVDS

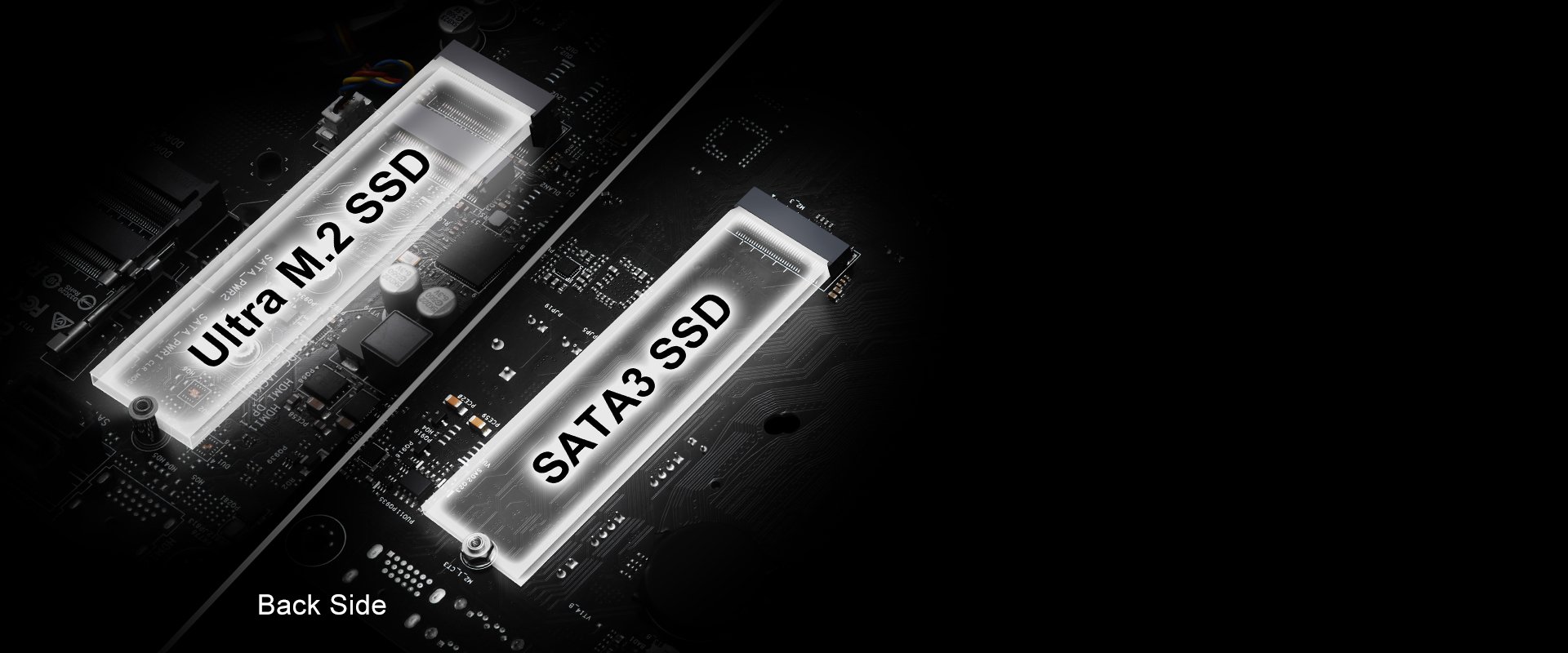

1 x Ultra M.2 2260/2280 slot (PCIe Gen3 x4)
1 x M.2 2280 slot (SATA3)
2 x SATA3
1 x USB 3.2 Gen1 Type-C Port, 1 x USB 3.2 Gen1 Type-A Port
2 x USB 2.0 Type-A Ports
1 x M.2 Key-E for Wi-Fi

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Overview
Specification
Support

Where to Buy

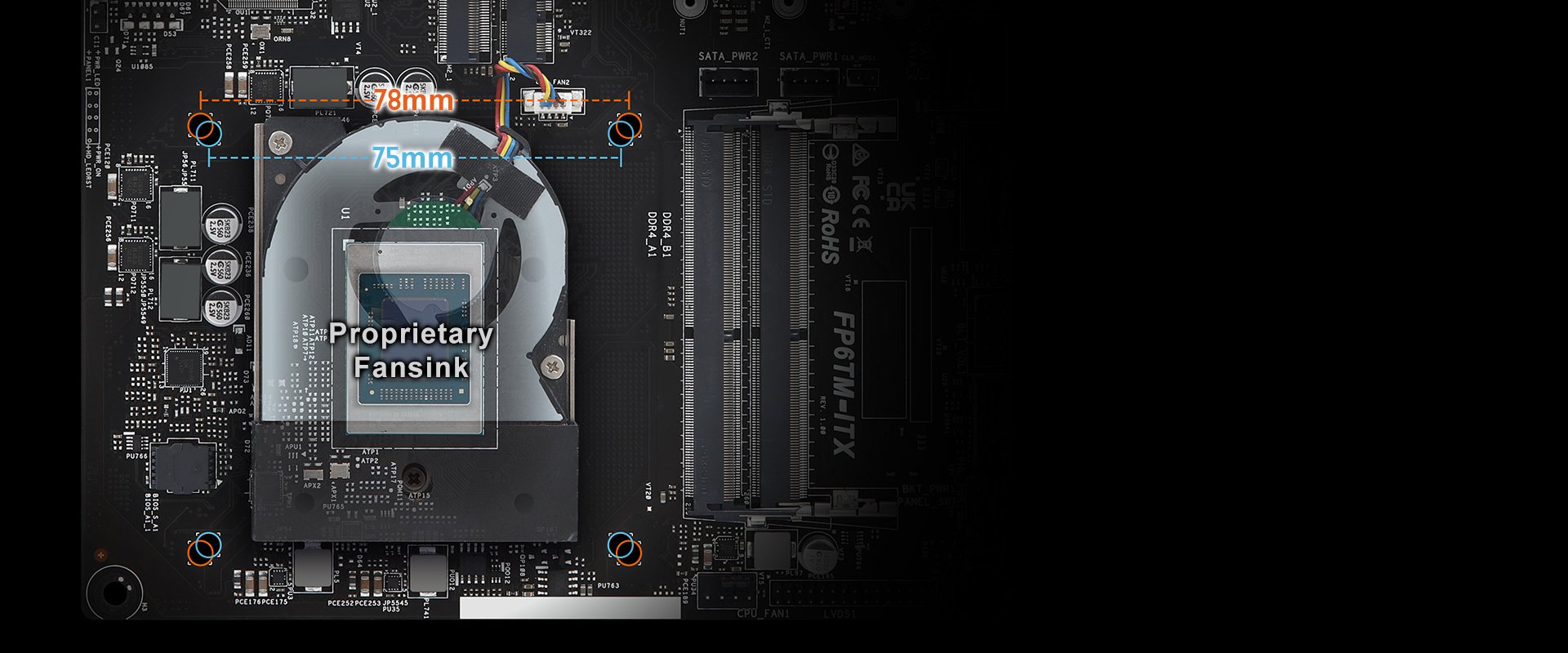

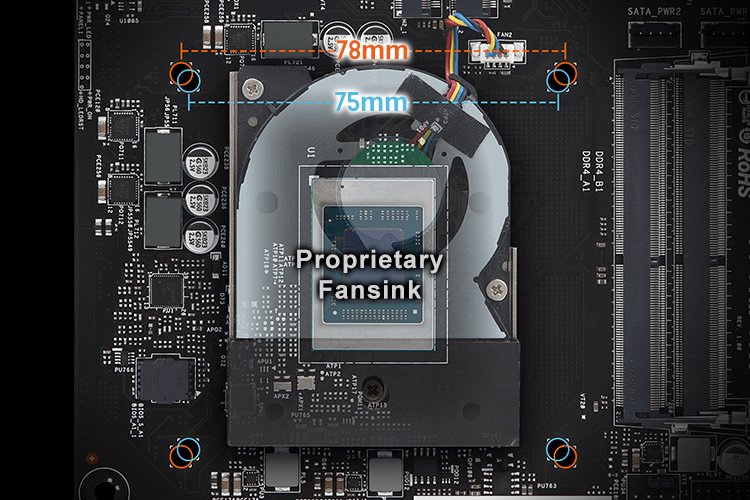

CPU
- Supports AMD FP6 Lucienne, Cezanne, Renoir, Barcelo, Barcelo-R
- 4 Power Phase design
Chipset
- SOC
Memory
- Dual Channel DDR4 Memory Technology

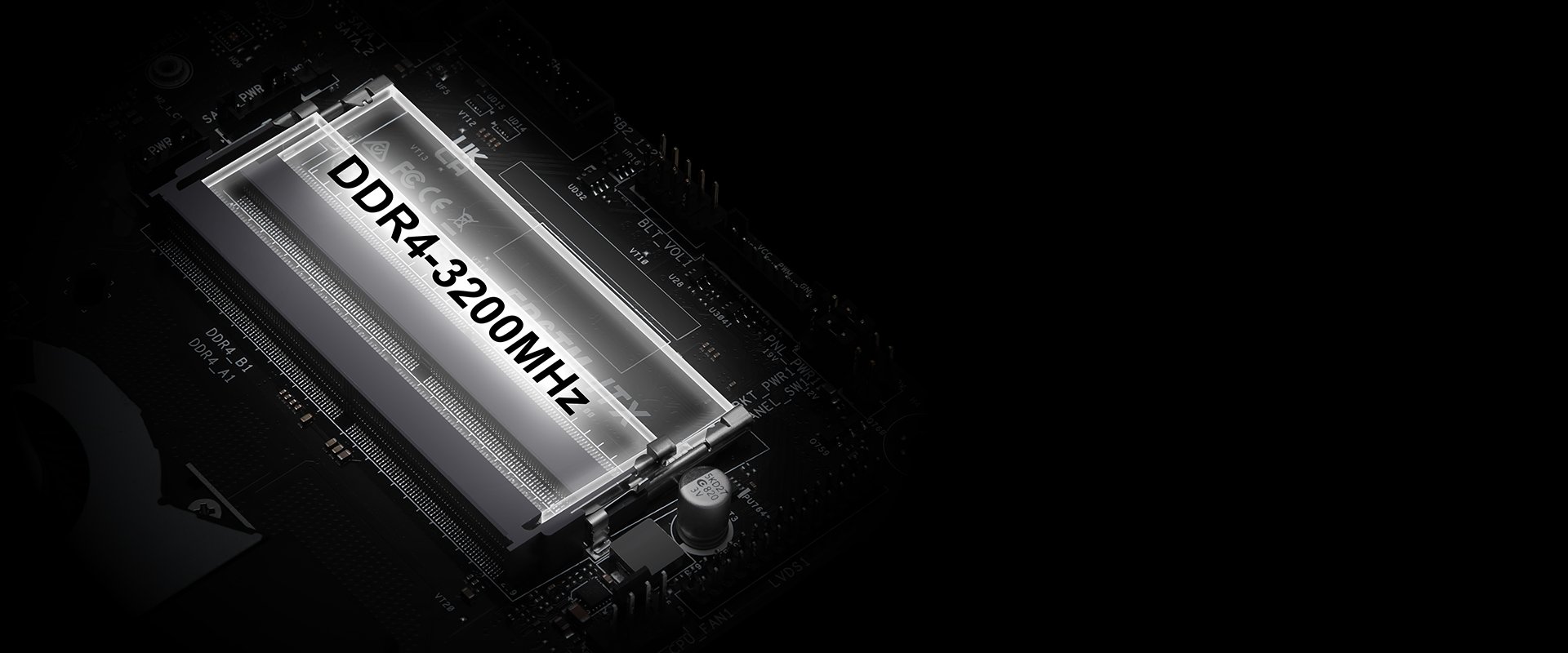

- 2 x DDR4 SO-DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Max. capacity of system memory: 64GB
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB.
- Four graphics output options: HDMI, DisplayPort, LVDS, D-Sub ports
- Supports HDMI with max. resolution up to 4K@ 60Hz (HDMI x 1 port (Rear) )
* (optional) Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz + HDMI x 1 port (Rear)
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports LVDS with max. resolution up to 1920x1080 @ 60Hz
* (optional) Supports HDMI with max. resolution up to 4K@ 60Hz (HDMI x 1 port (Internal) )
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 1.4 Port

*Actual support may vary by CPU
Audio
- Realtek ALC269 Audio Codec
- 1 x MIC IN
- 1 x Line out
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
* (optional) Realtek RTL8111FP (DASH LAN)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage

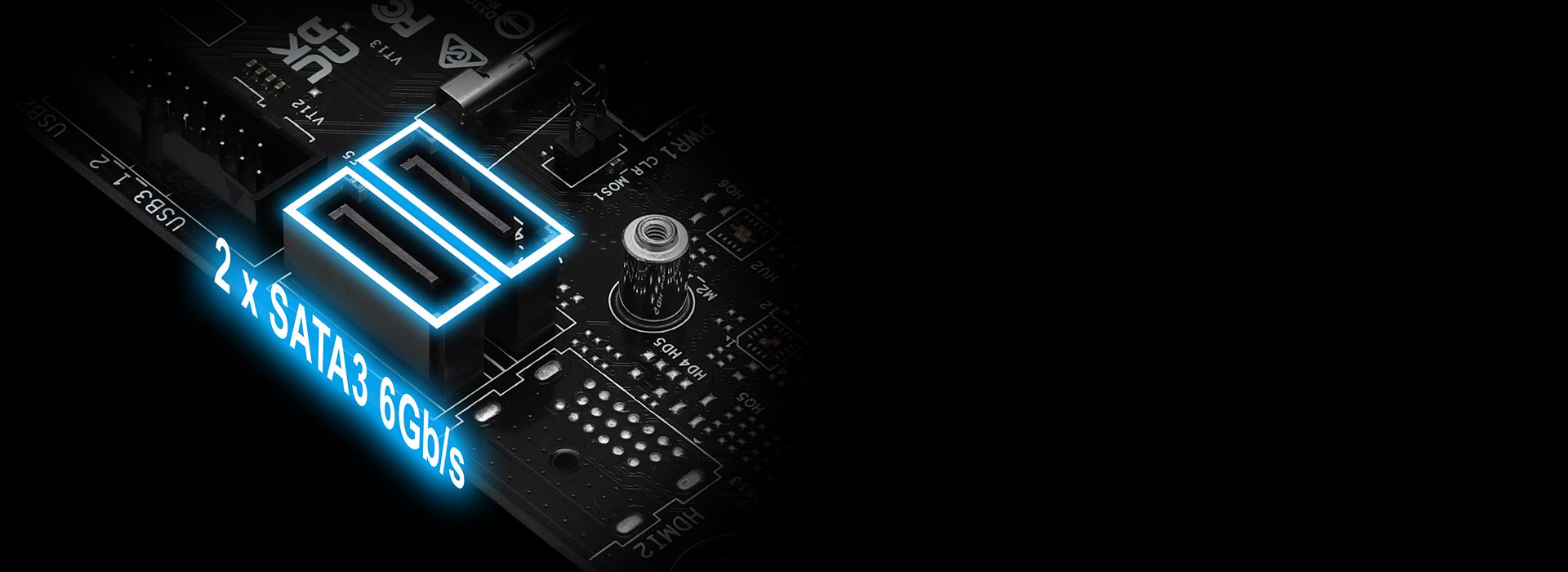

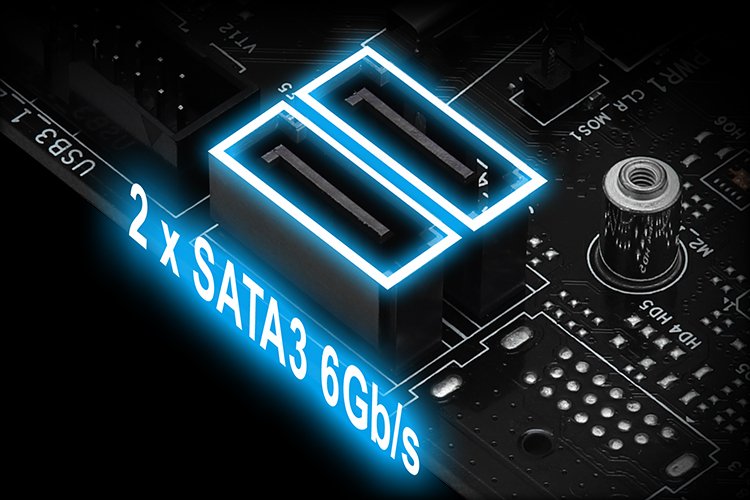

- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

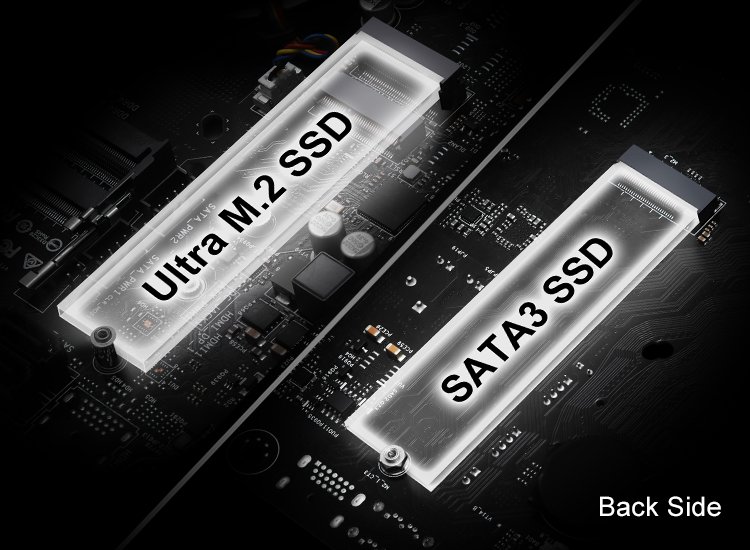

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x M.2 Socket (M2_3), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module

*Supports NVMe SSD as boot disks
Connector
* (optional) 1 x Onboard TPM 2.0 (INFINEON SLB9672)
- 1 x Chassis Intrusion Header
- 1 x Panel Voltage Selection Header
- 1 x Backlight Inverter Voltage Selection Header
- 1 x FPD Brightness Header
- 1 x Panel Off Header
- 1 x LVDS Connector
* (optional) 1 x HDMI2 (Internal)
- 1 x CPU Fan Connector (4-pin)*
- 1 x 4 pin 19V Power Connector (2-Pin)
- 1 x Front Panel Audio Connector
- 1 x Internal Speaker Header (4-Pin)
- 1 x Digital MIC Header
- 2 x SATA Power Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

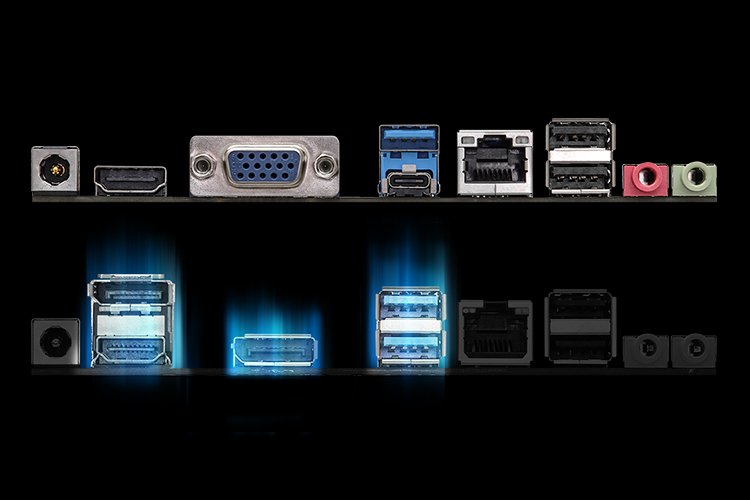

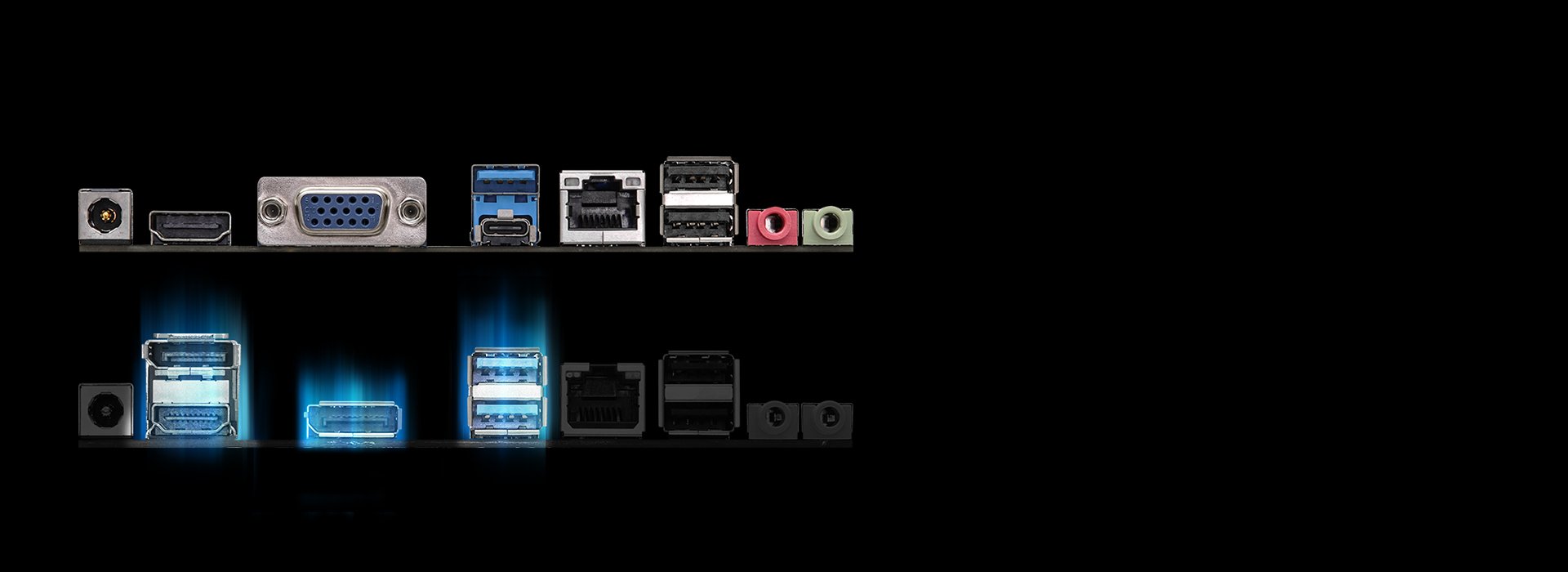

Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
* (optional) 1 x DisplayPort 1.4
- 1 x HDMI Port: HDMI1 (Rear)
* (optional) 1 x DisplayPort 1.4 + 1 x HDMI Port: HDMI1 (Rear)
- 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
* (optional) 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Support ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line out / Microphone
Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
Accessories
- I/O Shield (optional)
- 1 x SATA Data Cable (optional)
- 1 x SATA Power Cable (optional)
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Hardware Monitor
- CPU Temperature Sensing
- CPU Fan Tachometer
- CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU Fan Multi-Speed Control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

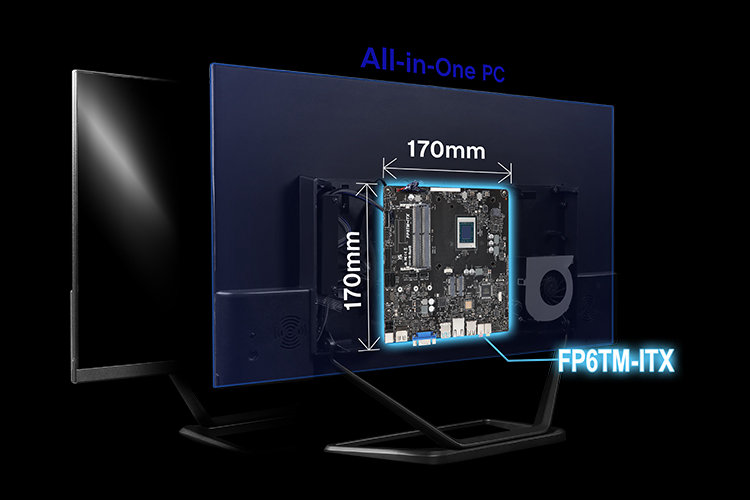

Form Factor

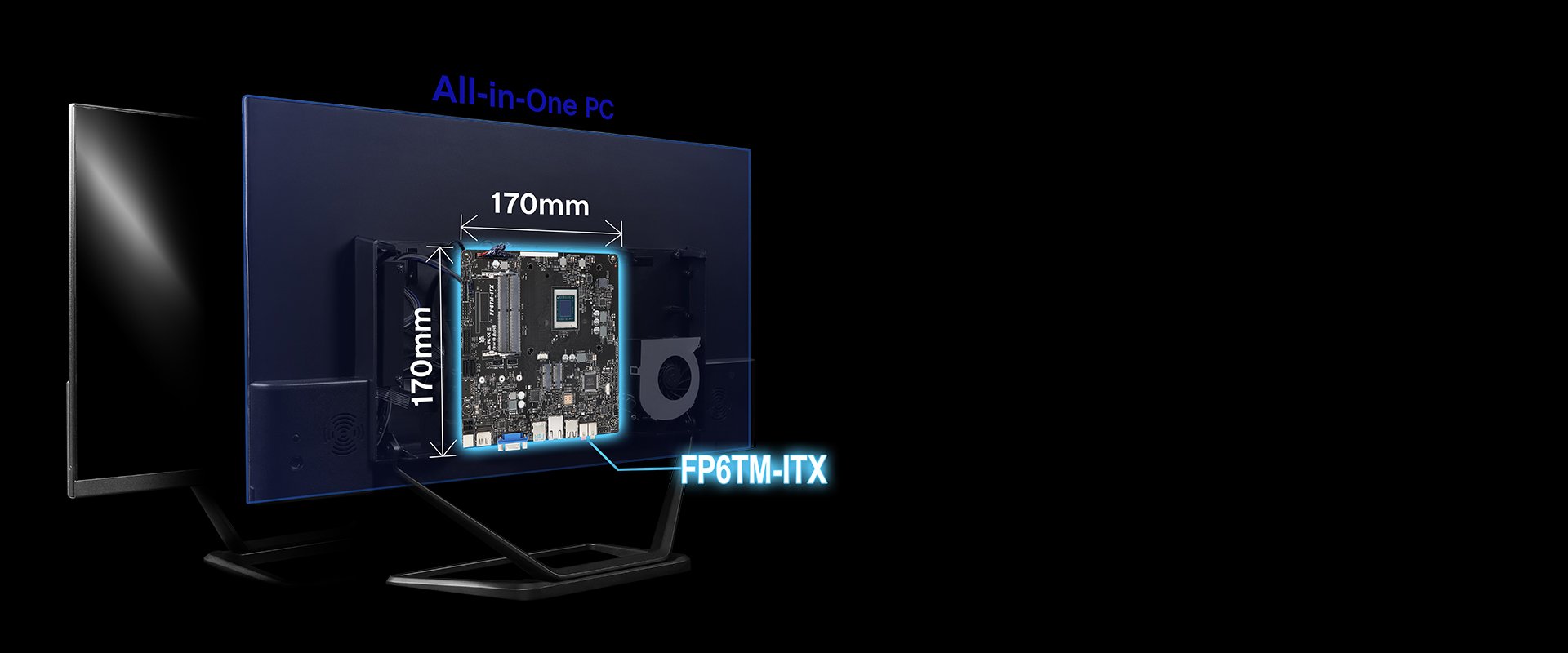

- Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX)
- Solid Capacitor design
OS
- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
