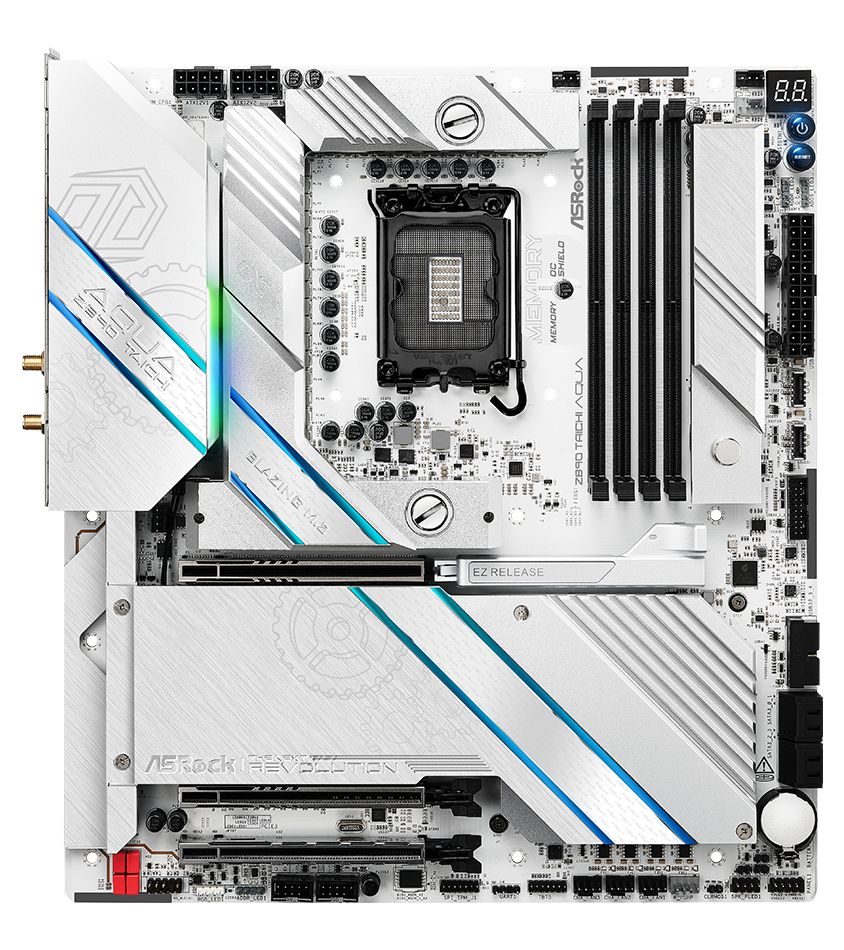

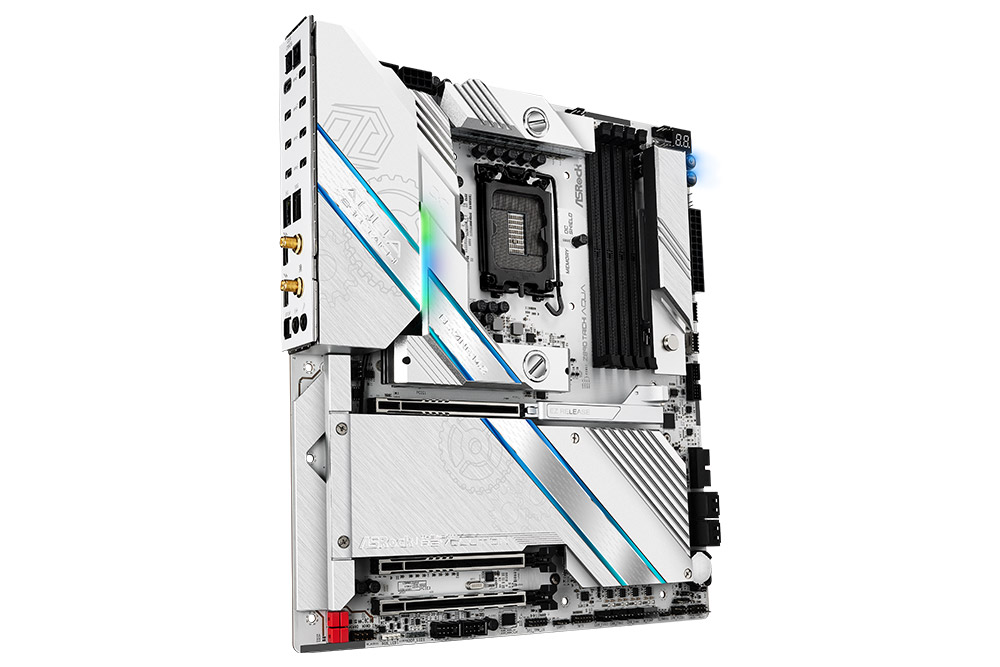

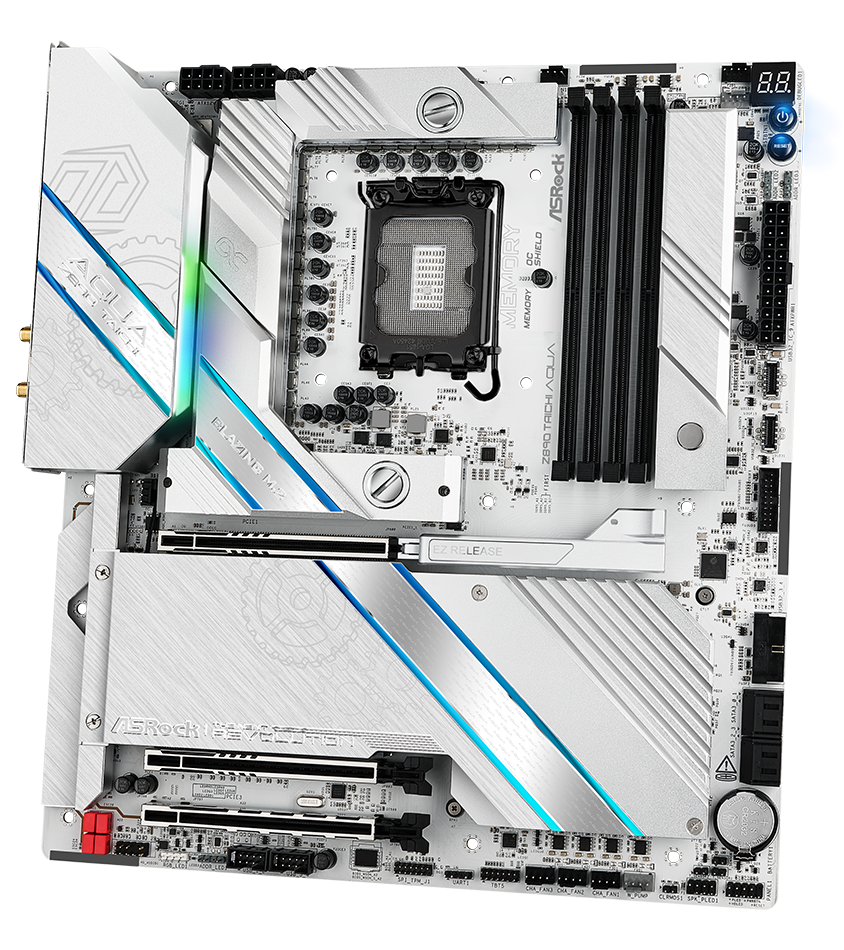

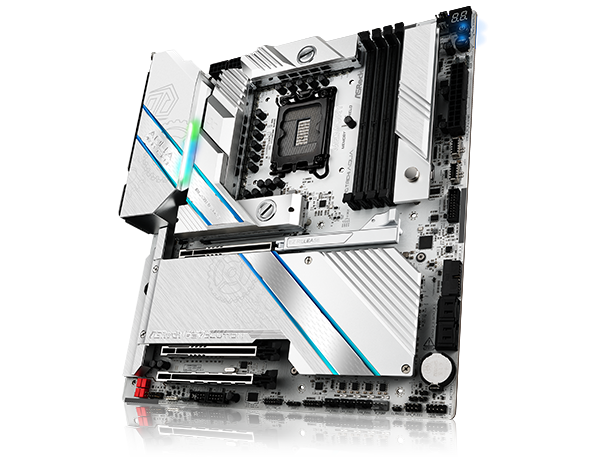

Pioneering the future

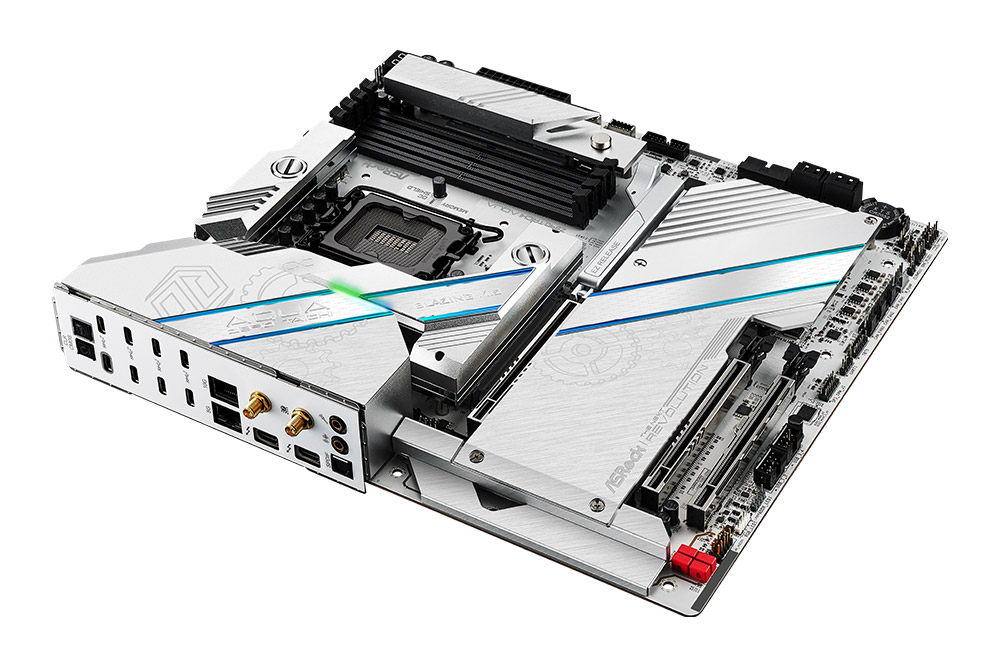

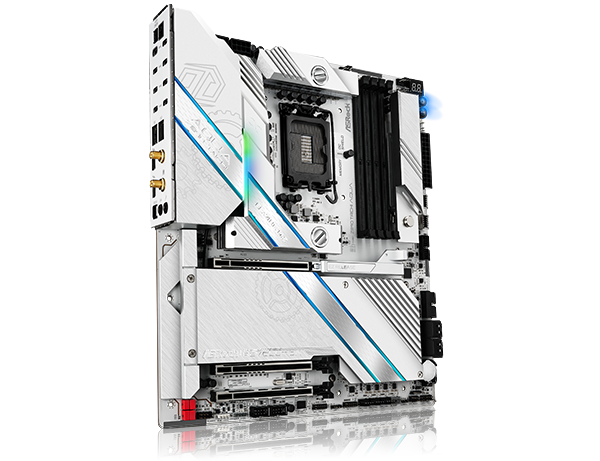

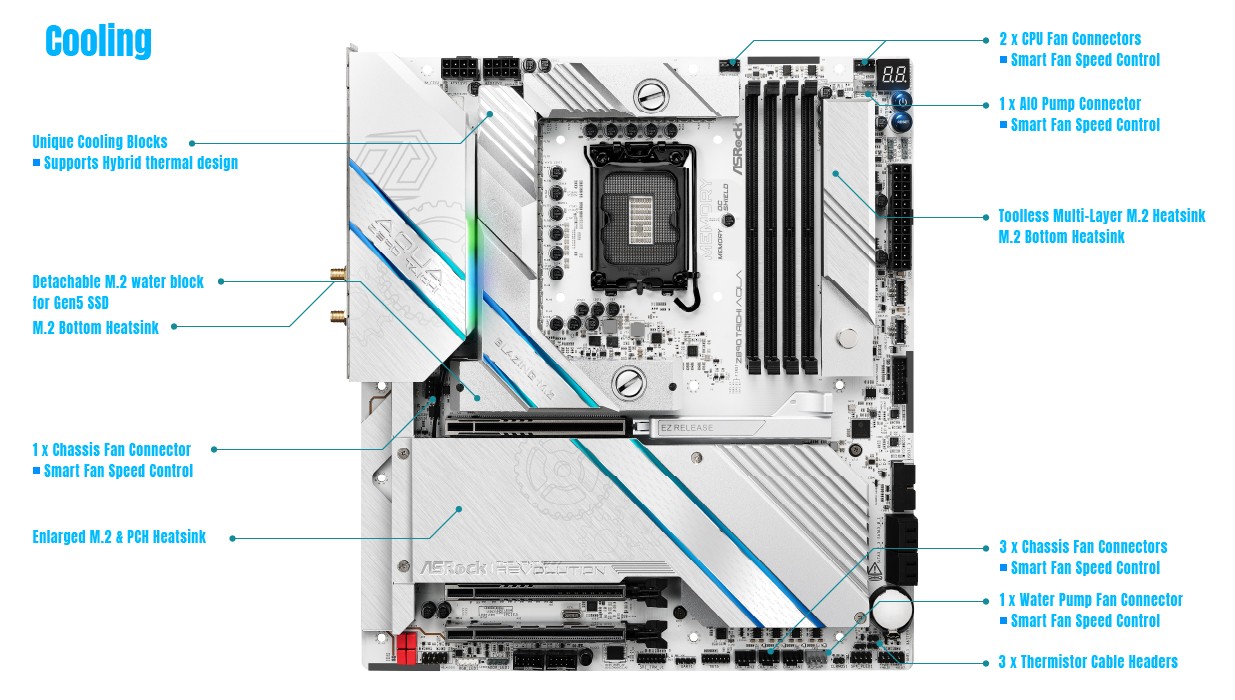

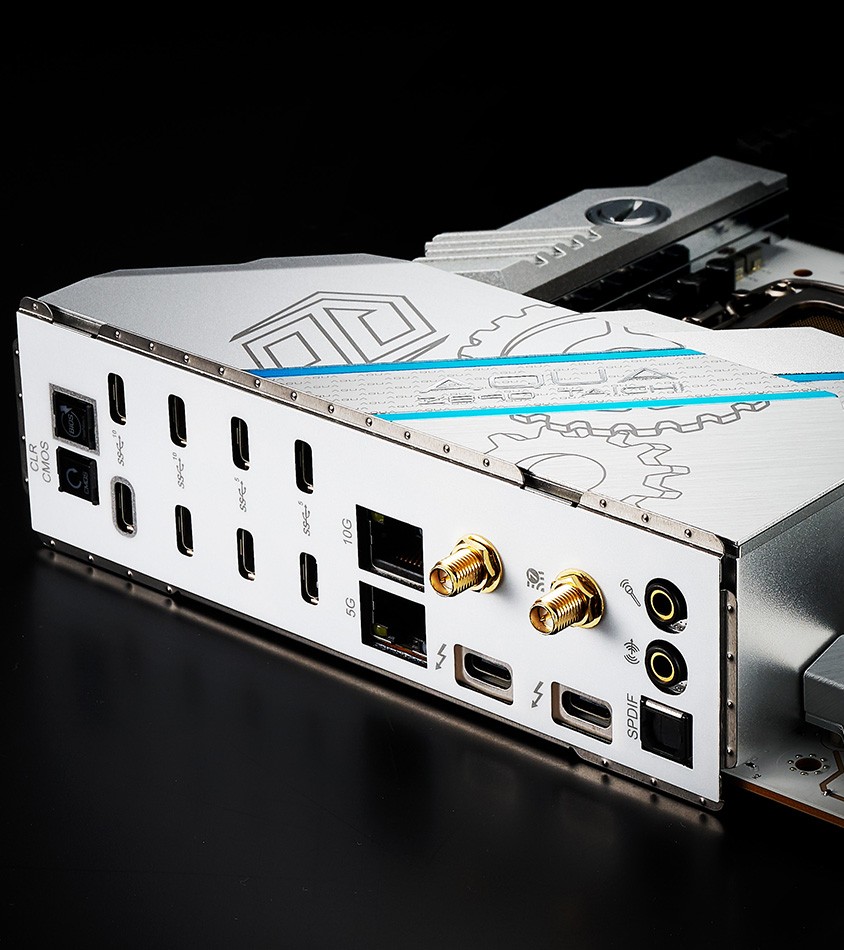

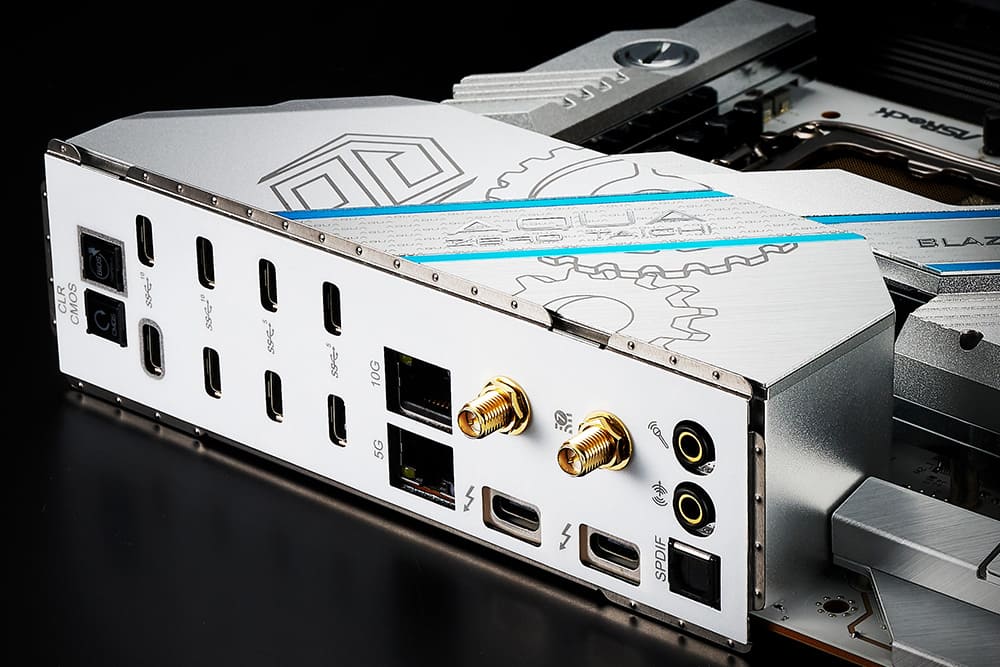

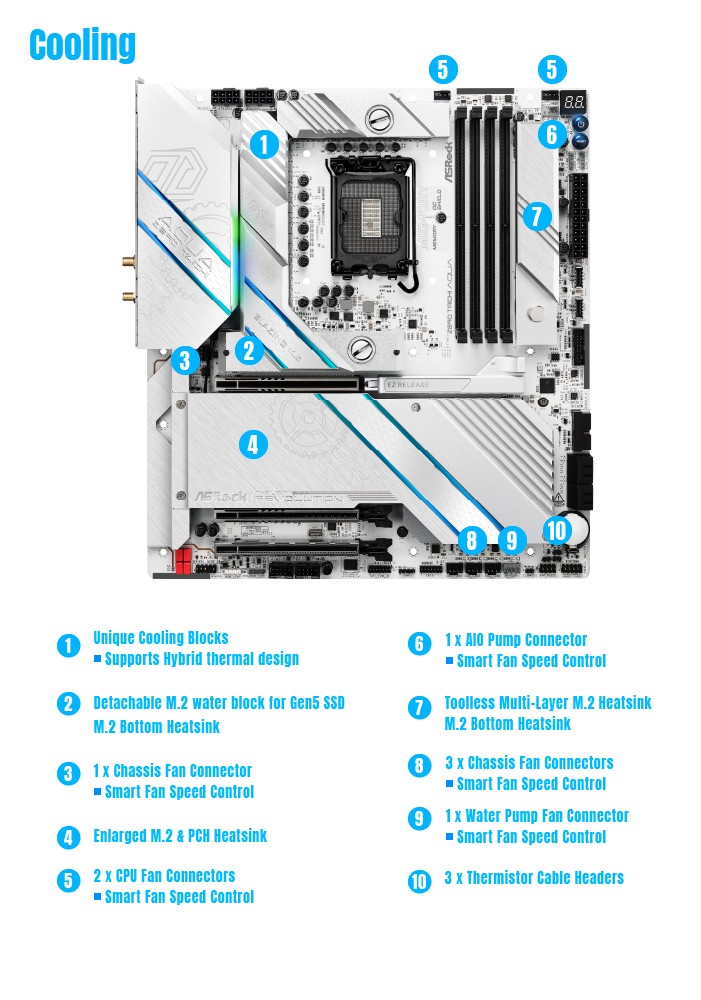

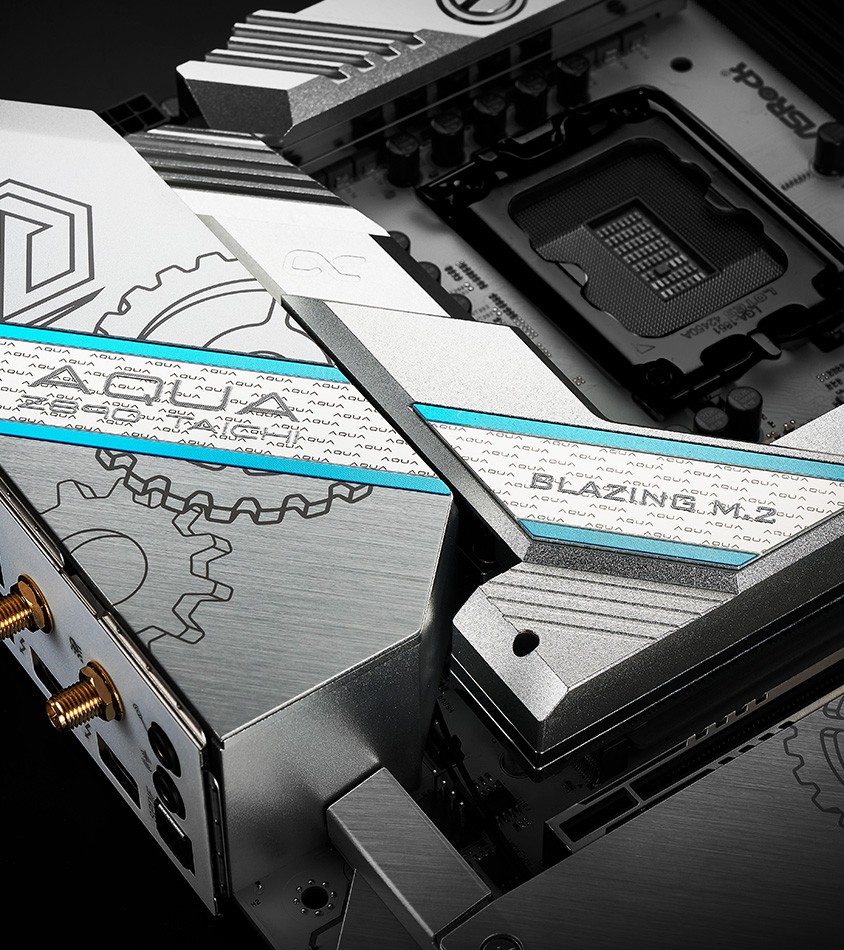

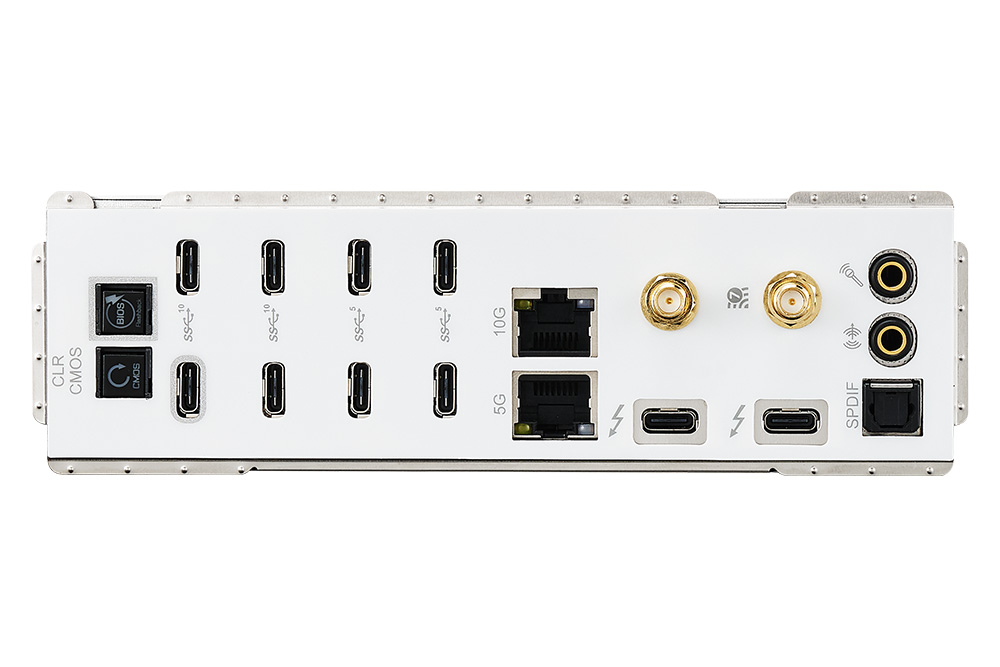

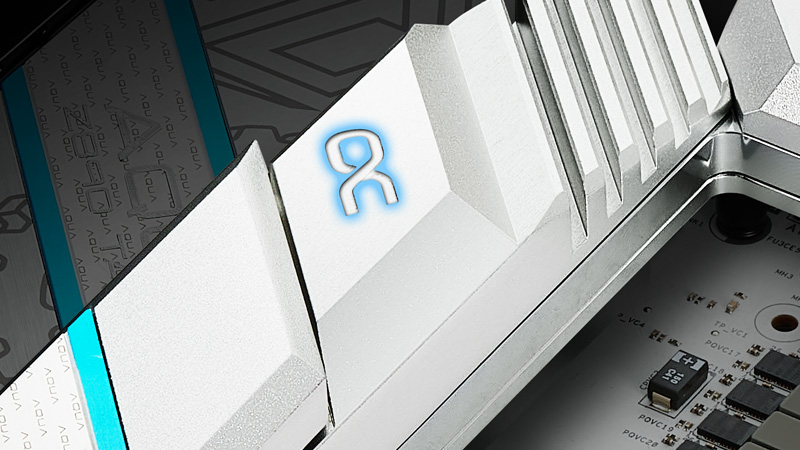

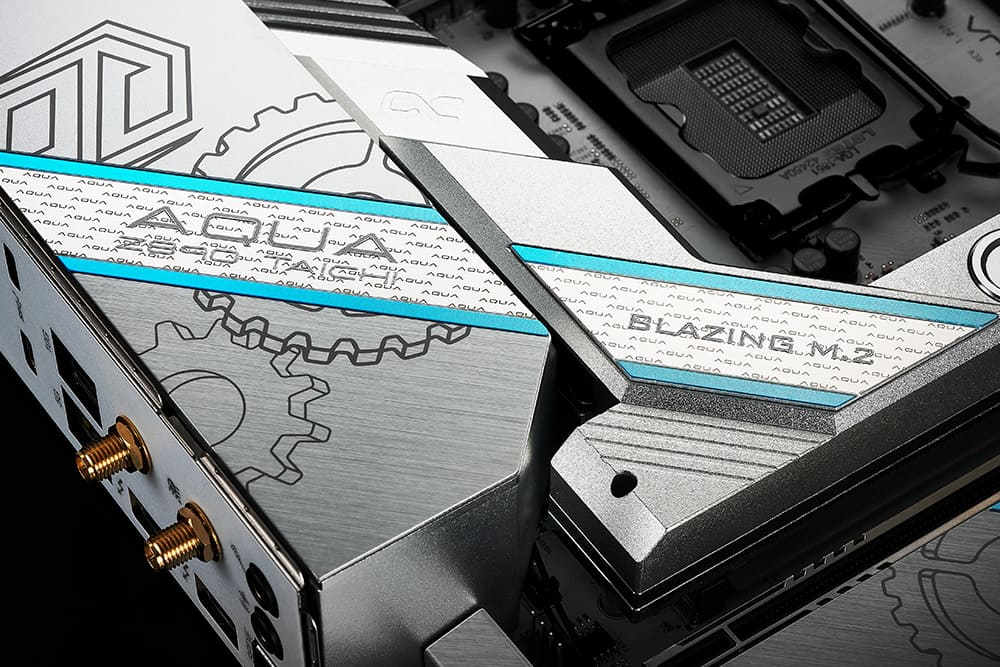

Z890 Taichi AQUA sets a new industry standard with its pioneering hybrid cooling design, featuring the first-ever detachable VRM and M.2 water block. Additionally, the innovative All USB Type-C On Rear IO configuration marks a leap forward in connectivity. Our mission is to lead the future and establish a new benchmark for top-tier motherboards.

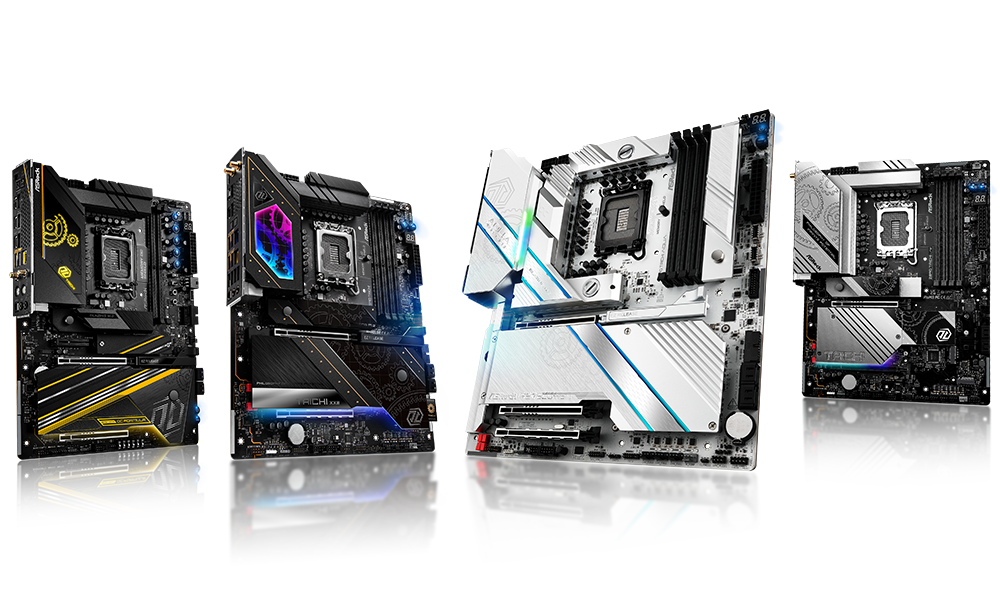

A New Era of Taichi

ASRock's flagship motherboard lineup is undergoing a major overhaul, unifying water cooling, extreme overclocking, and all-around flagship models into a powerful Taichi family.

This expansion incorporates the highly acclaimed AQUA series water-cooling motherboards and OC Formula series overclocking motherboards, resulting in the Taichi AQUA for custom water cooling, Taichi OCF for extreme overclocking, and the all-around flagship Taichi/Taichi Lite.

This transformation refines product positioning, centralizing ASRock's flagship offerings under the Taichi brand to meet the diverse needs of high-end PC enthusiasts. This strategic combination enhances the brand's impact, delivering exponential synergy and reinforcing its status as a premier flagship motherboard brand.

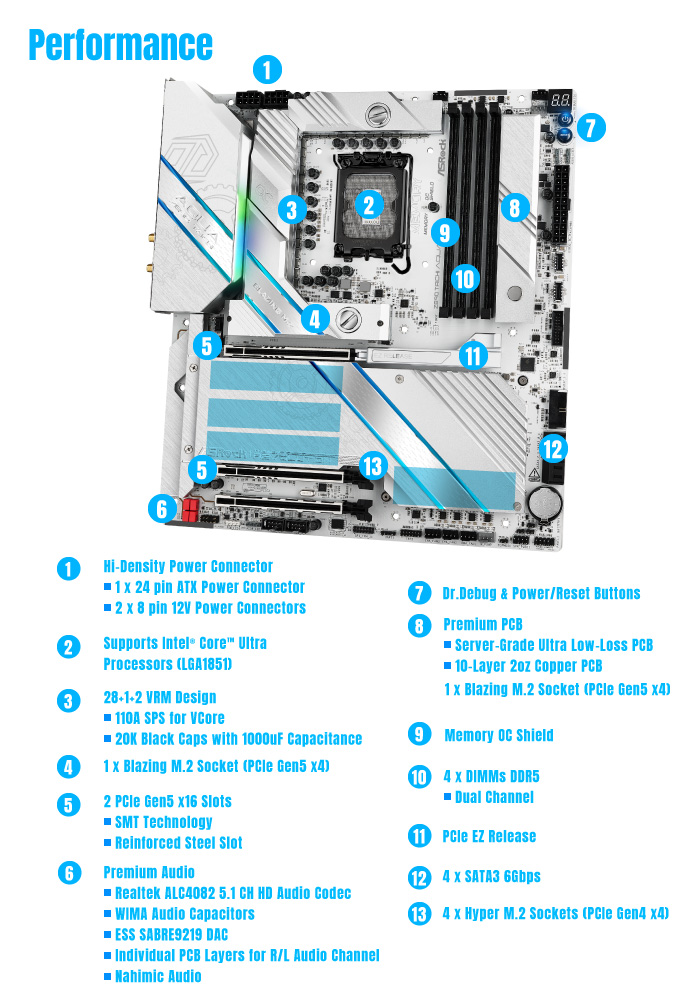

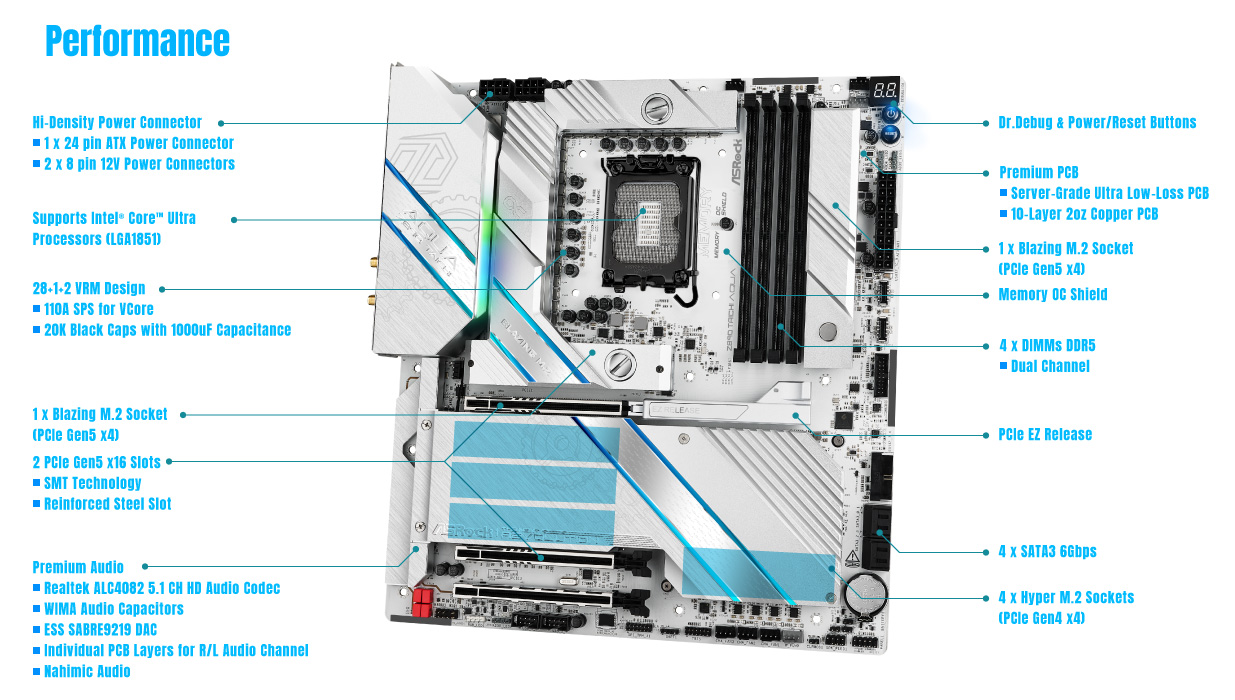

OVERVIEW

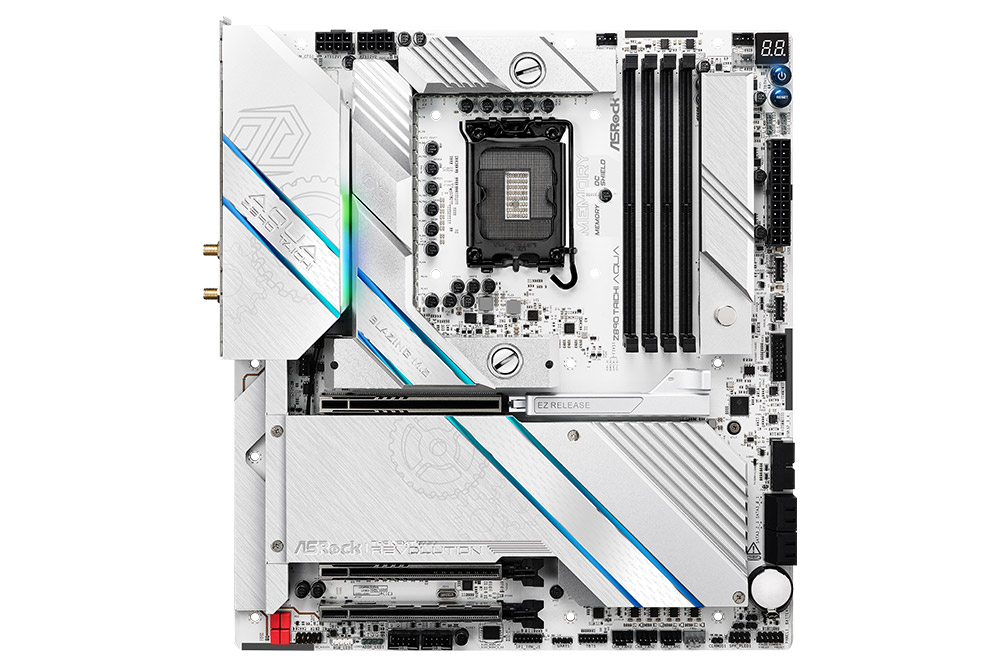

  • Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)

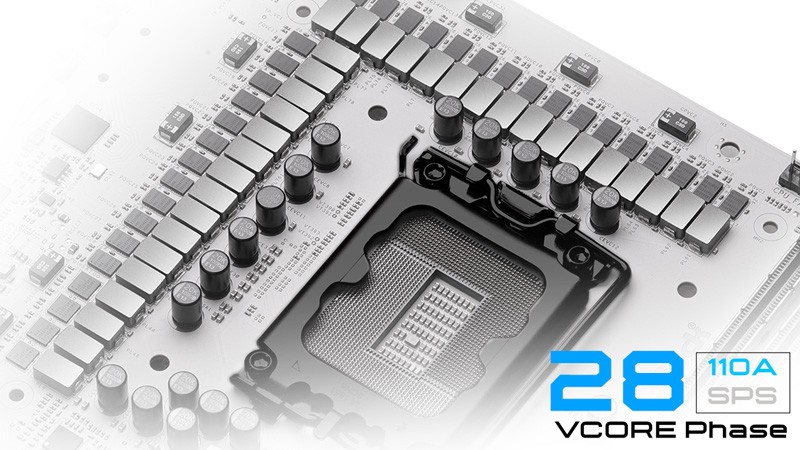

  • 28+1+2+1+1 Power Phase, 110A SPS for VCore
  • 4 x DDR5 DIMMs
    Supports Dual Channel, up to 9600+ (OC)
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16
  • Graphics Output Options: 2 Thunderbolt™ 4 Type-C
  • Realtek ALC4082 5.1 CH HD Audio Codec,
    ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
  • 4 SATA3

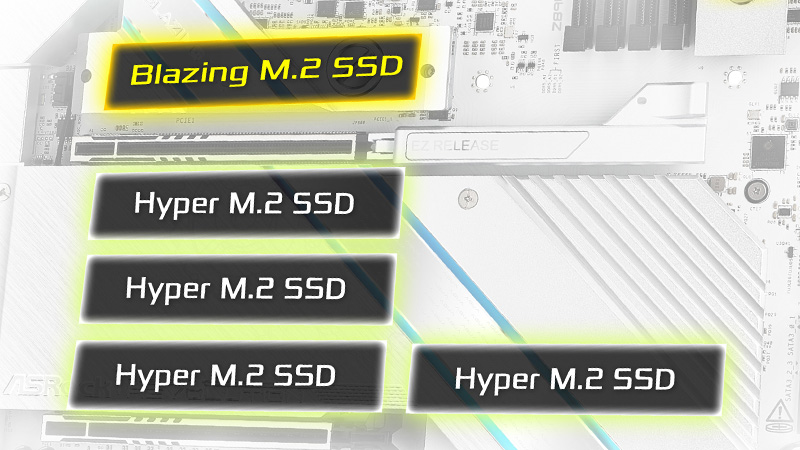

    2 Blazing M.2 (PCIe Gen5 x4)
    3 Hyper M.2 (PCIe Gen4 x4)
    1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

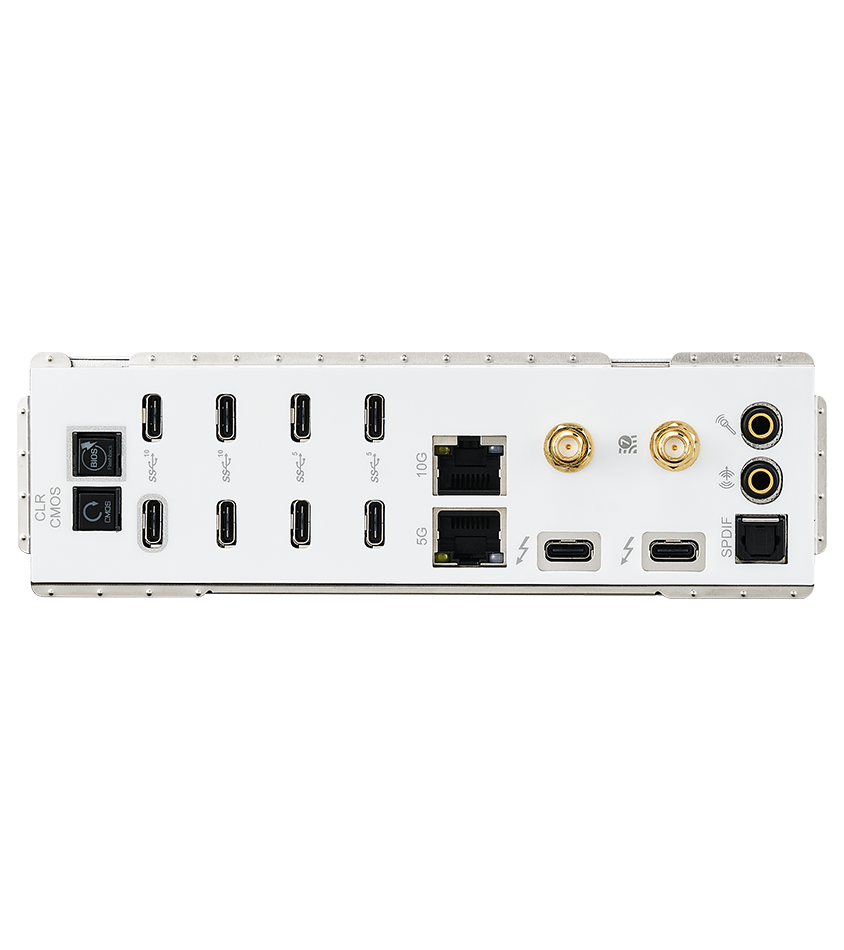

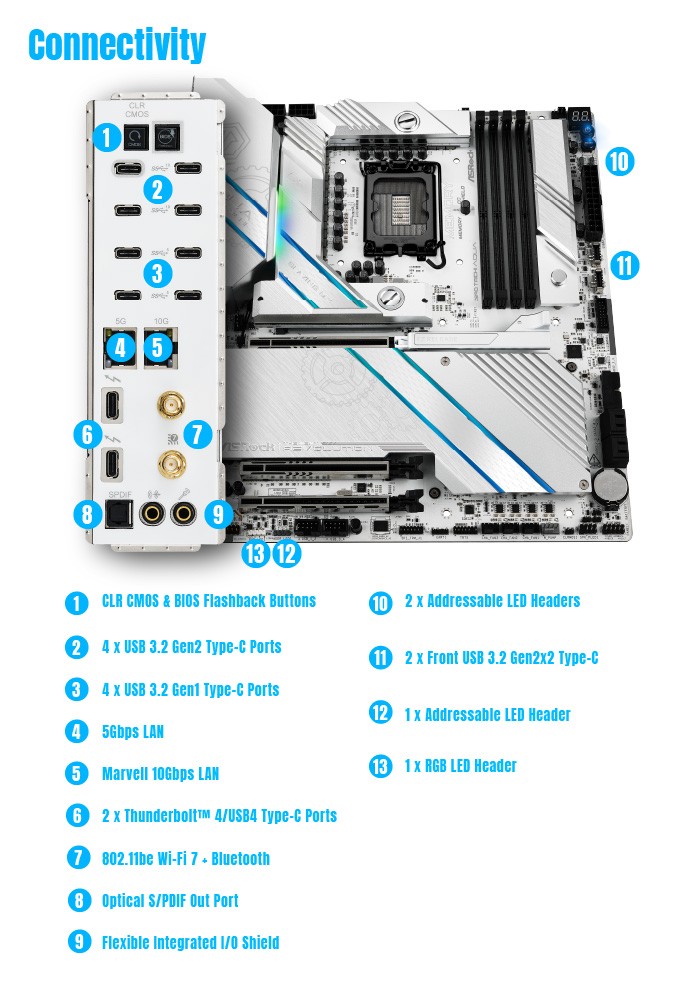

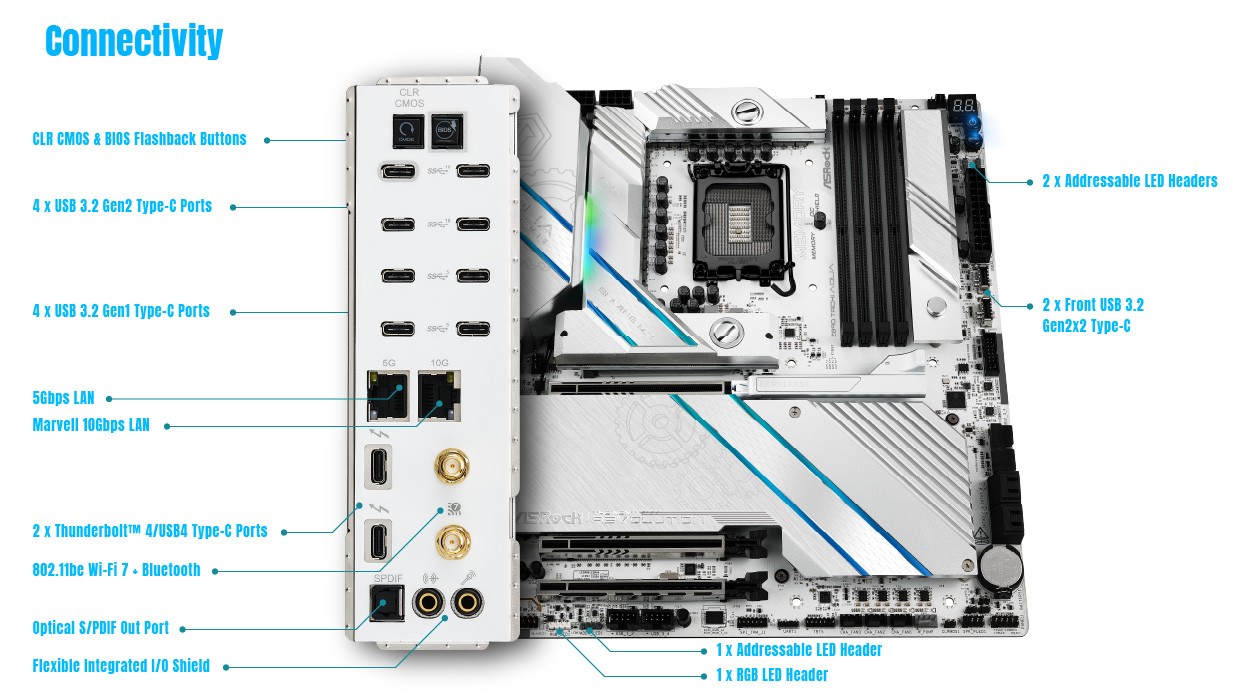

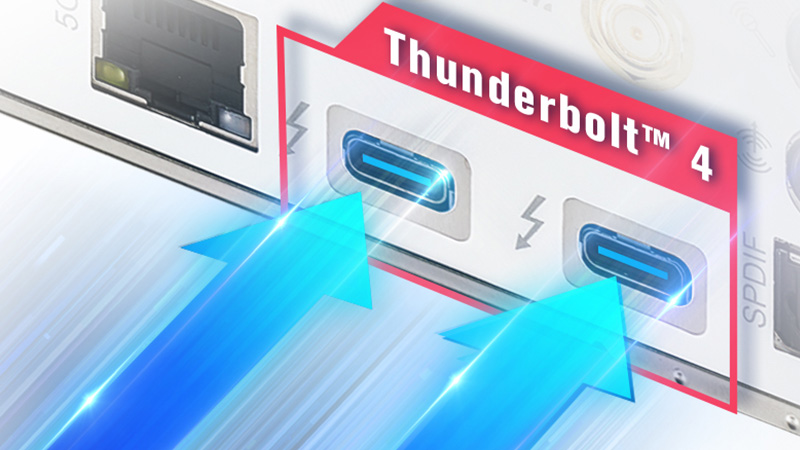

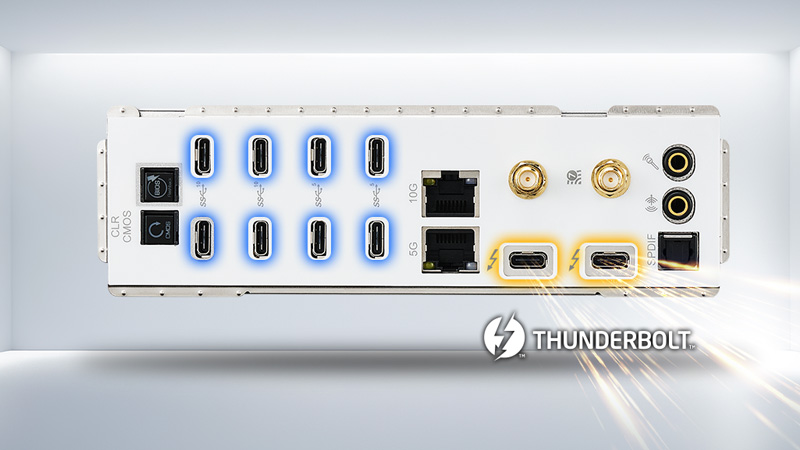

  • 2 Thunderbolt™ 4 Type-C (Rear)
    2 USB 3.2 Gen2x2 Type-C (Front)
    4 USB 3.2 Gen2 Type-C (Rear)
    4 USB 3.2 Gen1 Type-C (Rear)
    4 USB 3.2 Gen1 Type-A (Front)
    4 USB 2.0 (Front)
  • Marvell 10Gbps LAN, 5Gbps LAN
  • Killer 802.11be Wi-Fi 7 + Bluetooth

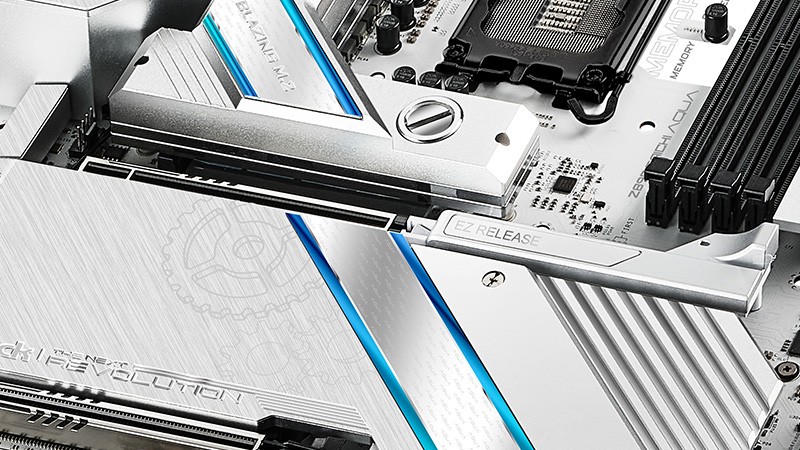

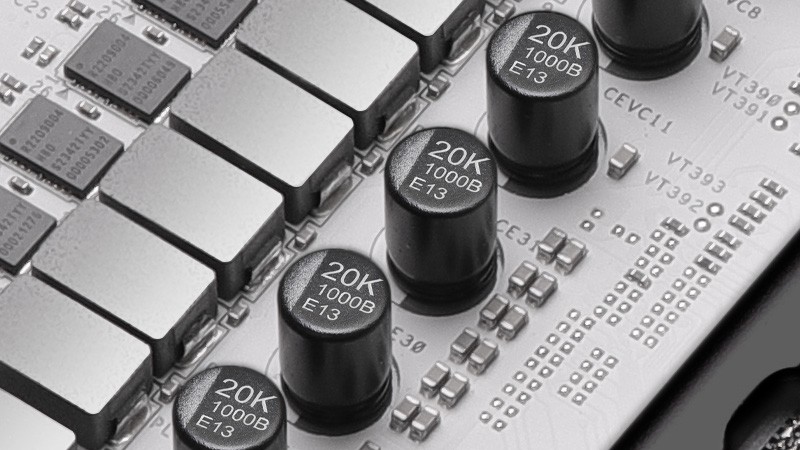

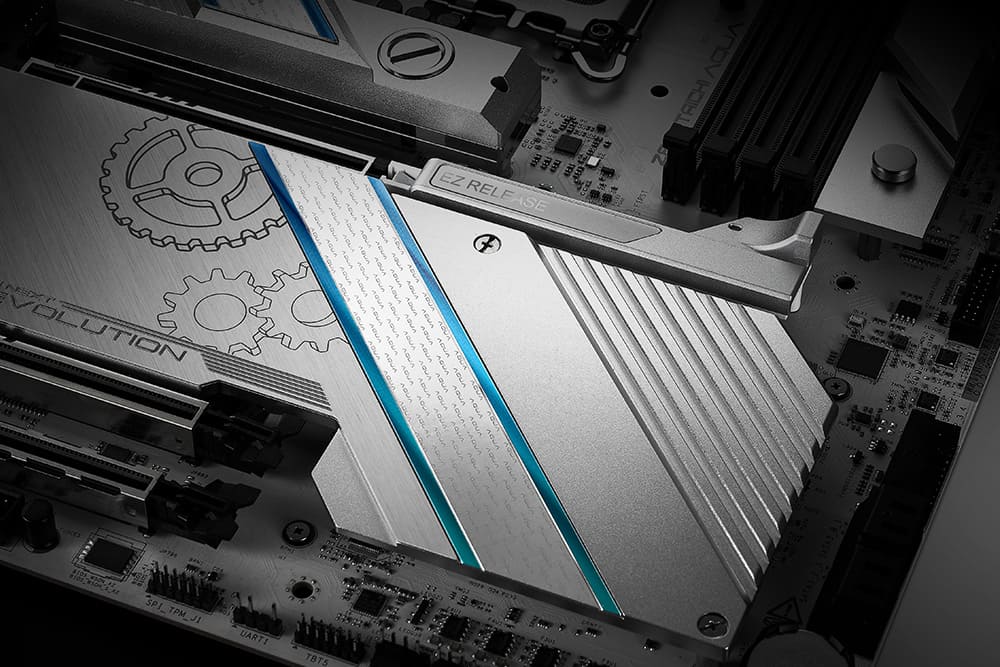

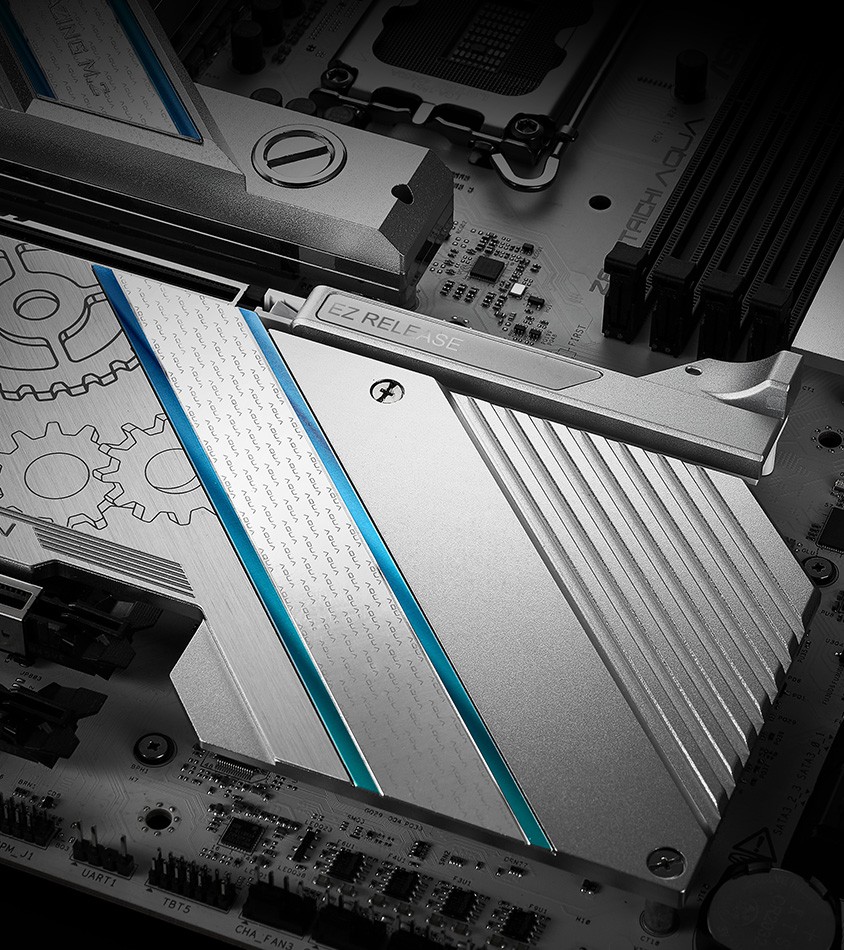

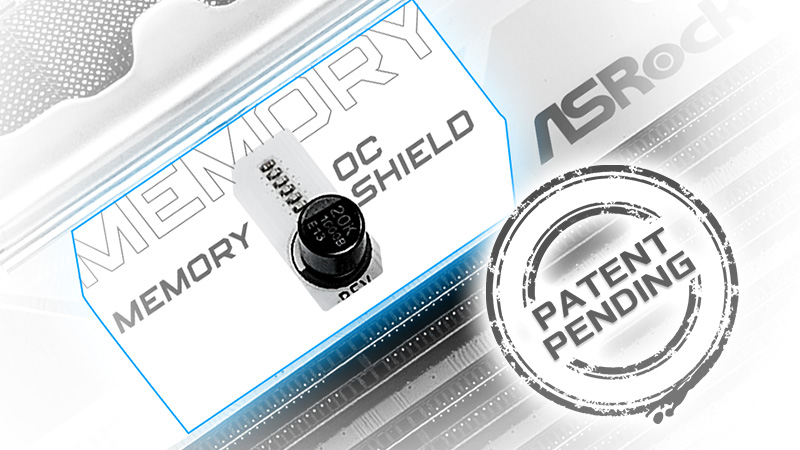

  • Supports Memory OC Shield, 20K Caps with 1000uF Capacitance, EZ Release Design
