关于 Mini-STX

迷你 STX(Mini Socket Technology Extended)接口为迷你 PC 段增加了灵活性,可以支持 Intel® LGA 1151 插槽的 Intel® 处理器。

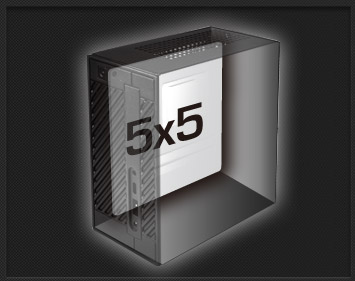

标准 5x5 柜式机箱

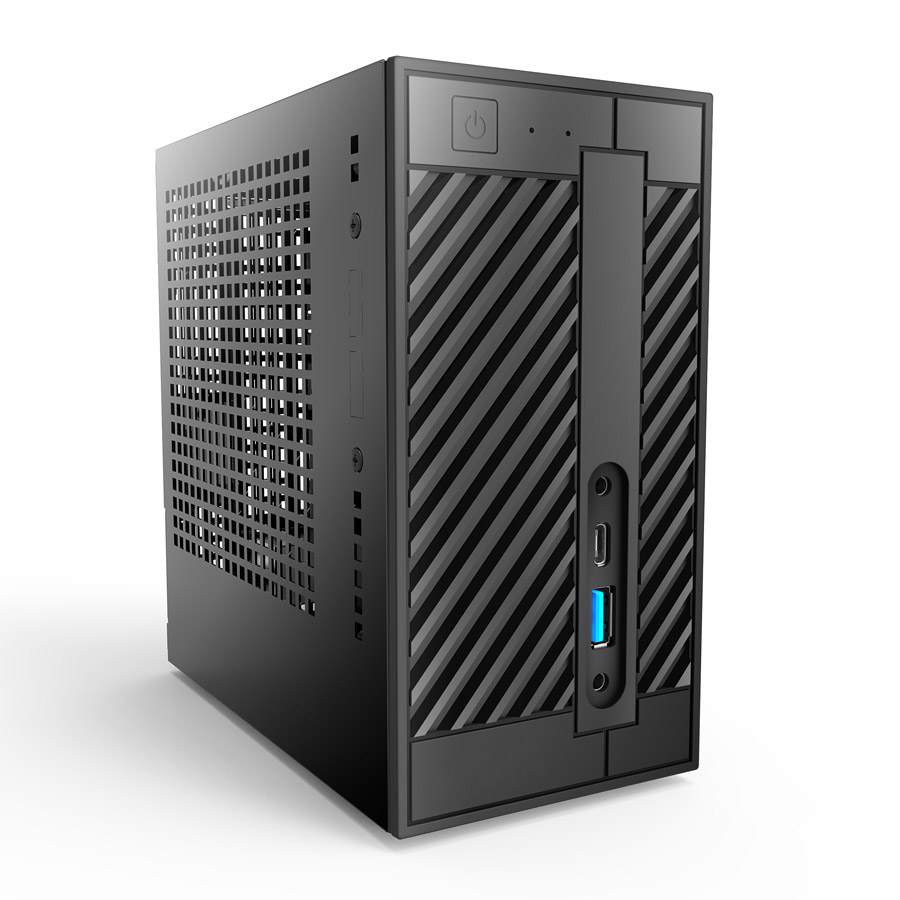

全新迷你 STX 机箱型式

独家功能

体积更小,性能更高

与 T 系列 CPU 相比 DeskMini 110 使用 65W CPU,仍然比其他 HTPC 更小,性能提升 23%。/font>

数值更高,性能更高

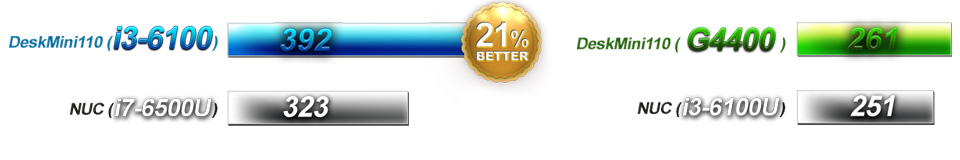

与 U 系列 CPU 相比 DeskMini 110 使用 Intel 标准 CPU,当使用节能的奔腾(Pentium)或酷睿(Core)i3 处理器时性能提升可达 21%。

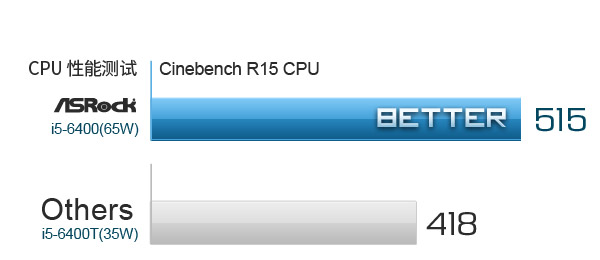

CPU 性能测试(Cinebench R15)

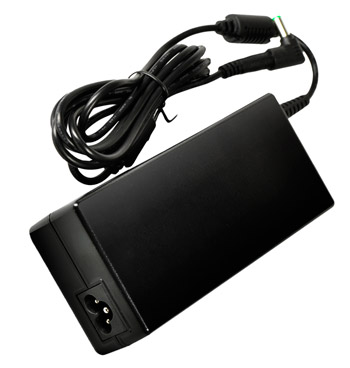

直流电源输入适配器

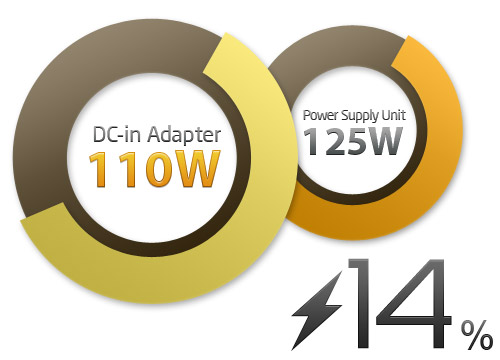

与传统 PSU(电源供应器)设计相比,直流电源适配器为用户节省耗电多达 14%。

大量用户自定义项目

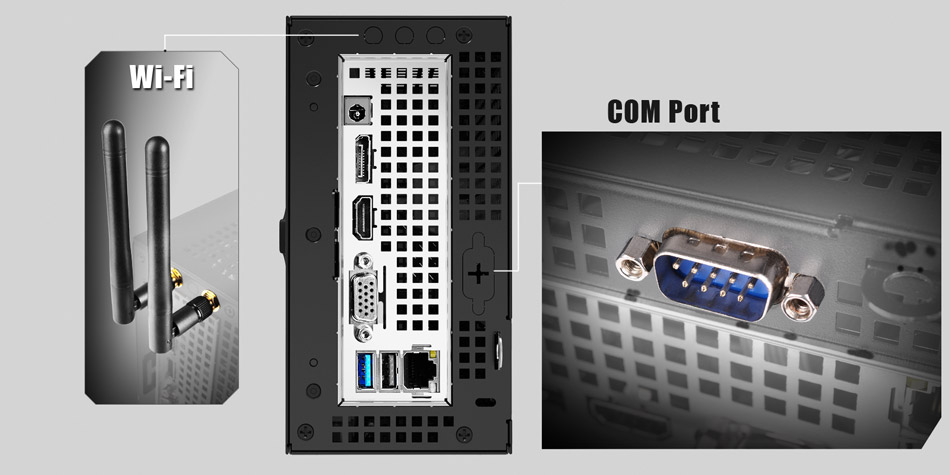

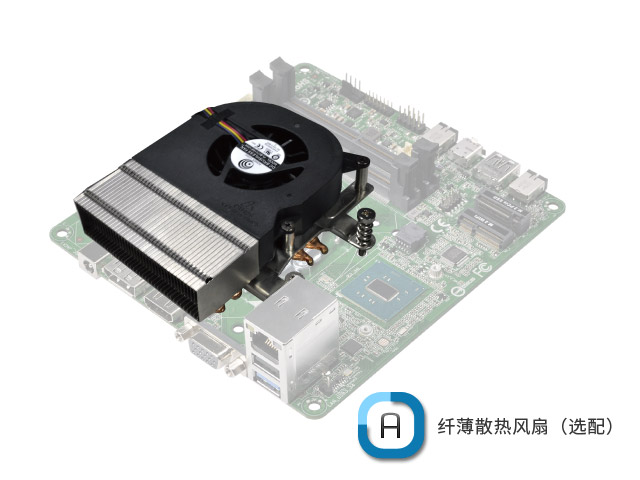

COM 接口、TPM 2.0 芯片、纤薄散热风扇或标准 Intel 盒装风扇。自定义一款属于自己的迷你 STX。

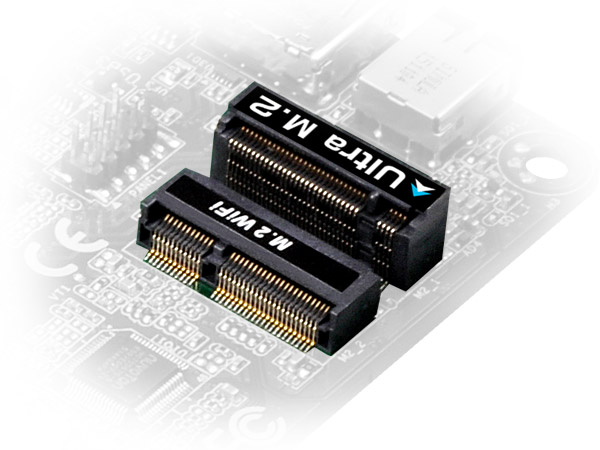

两根 M.2 插槽

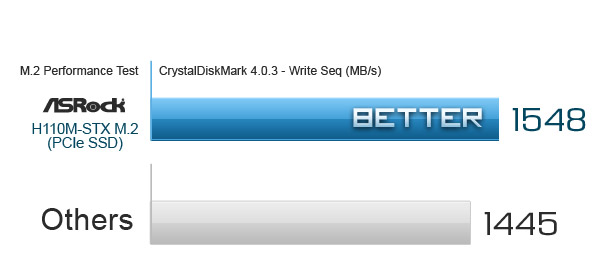

一根 E 2230 M.2 插槽支持连接一个 Wi-Fi + BT 模块,另一跟 2280 M.2 插槽由 CPU 直接供电,因此比其他 M.2 插槽性能提升 7%,可以支持 PCIe Gen3 x4 M.2 固态硬盘。

* SATA type M.2 module is not supported.

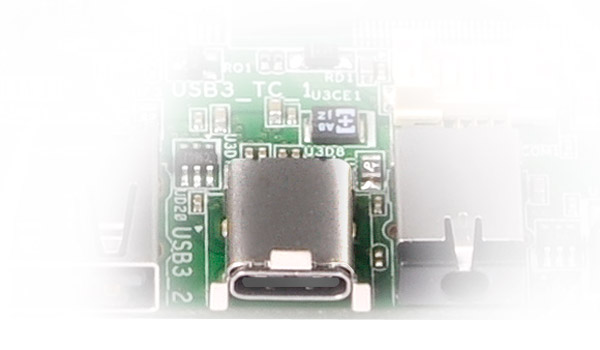

USB 3.0 C-型接口

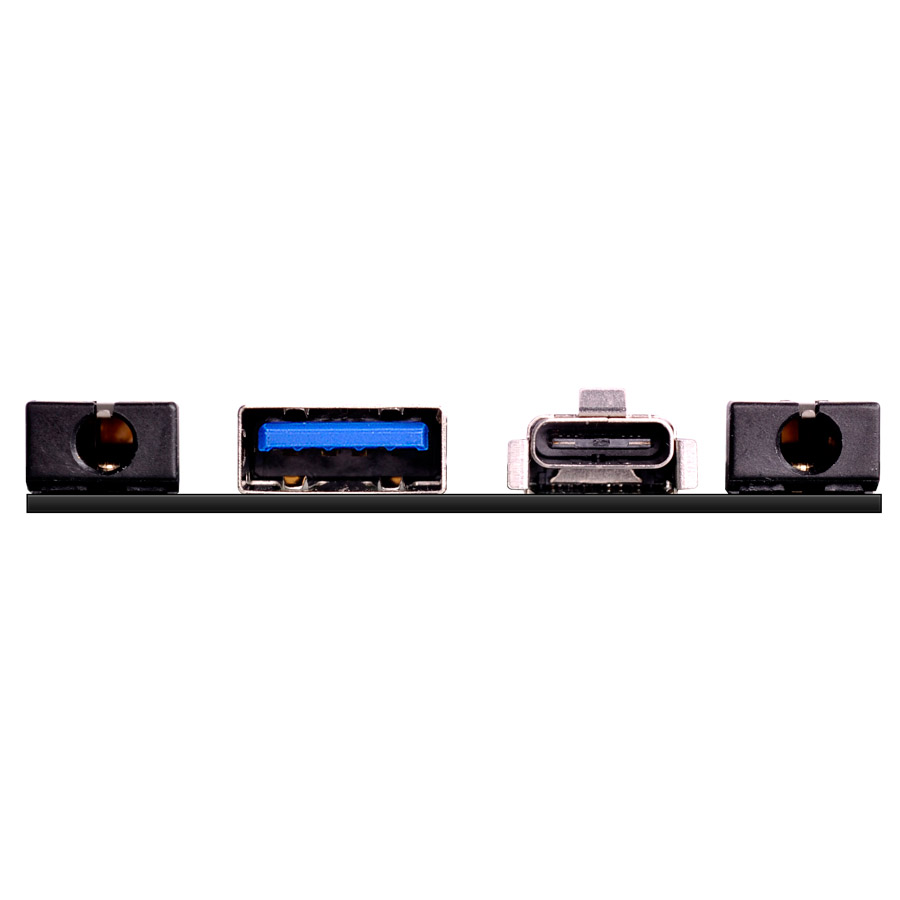

C 型 USB 3.0 接口提供快速充电功能,且数据传输率高达 5Gbps。

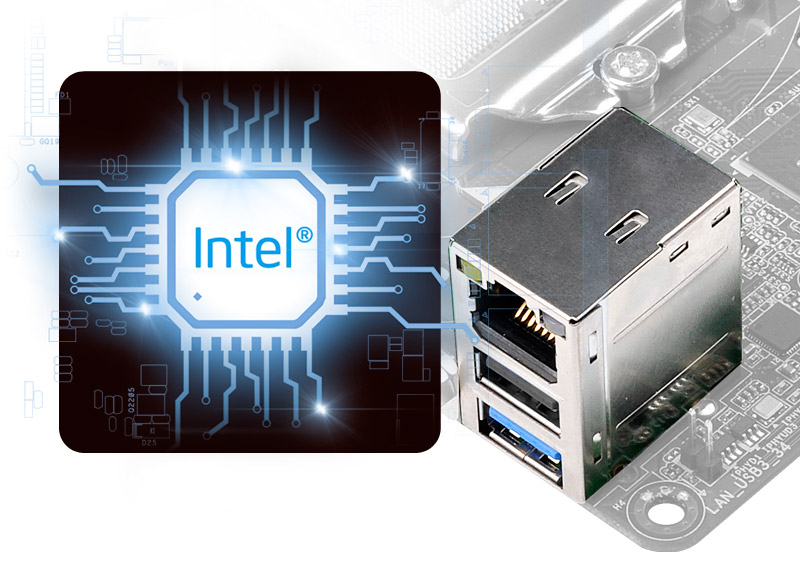

灵活的网络选择

使用默认的 Intel I219V 网卡,或将您的芯片升级至 B150/Q170 以及服务器等级的 Intel I219LM 网卡芯片。

两个 SATA3 接口

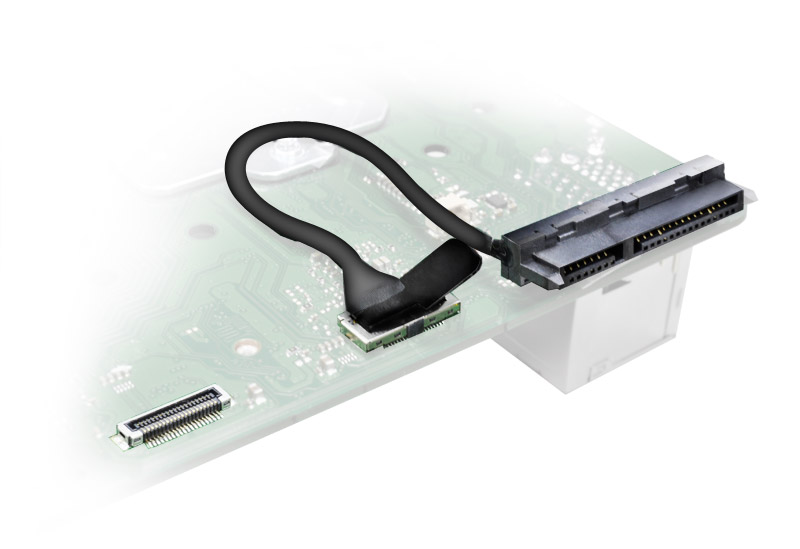

在主板背面配置两个 SATA3 接口,可支持 2.5" 硬盘/固态硬盘。

三种显示输出接口

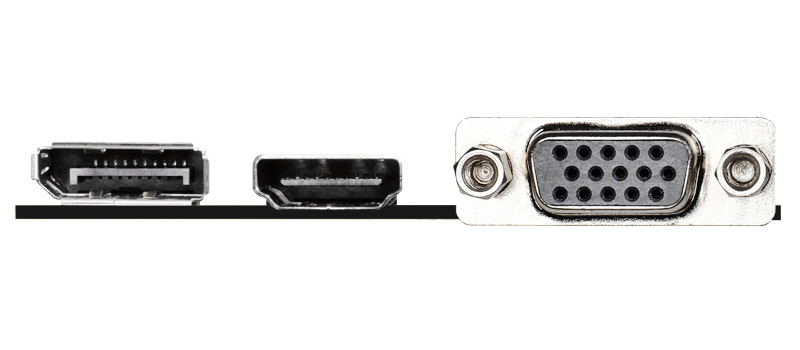

本主板支持 D-Sub、HDMI 与 DP 三种接口显卡

*同时支持 2 台显示器

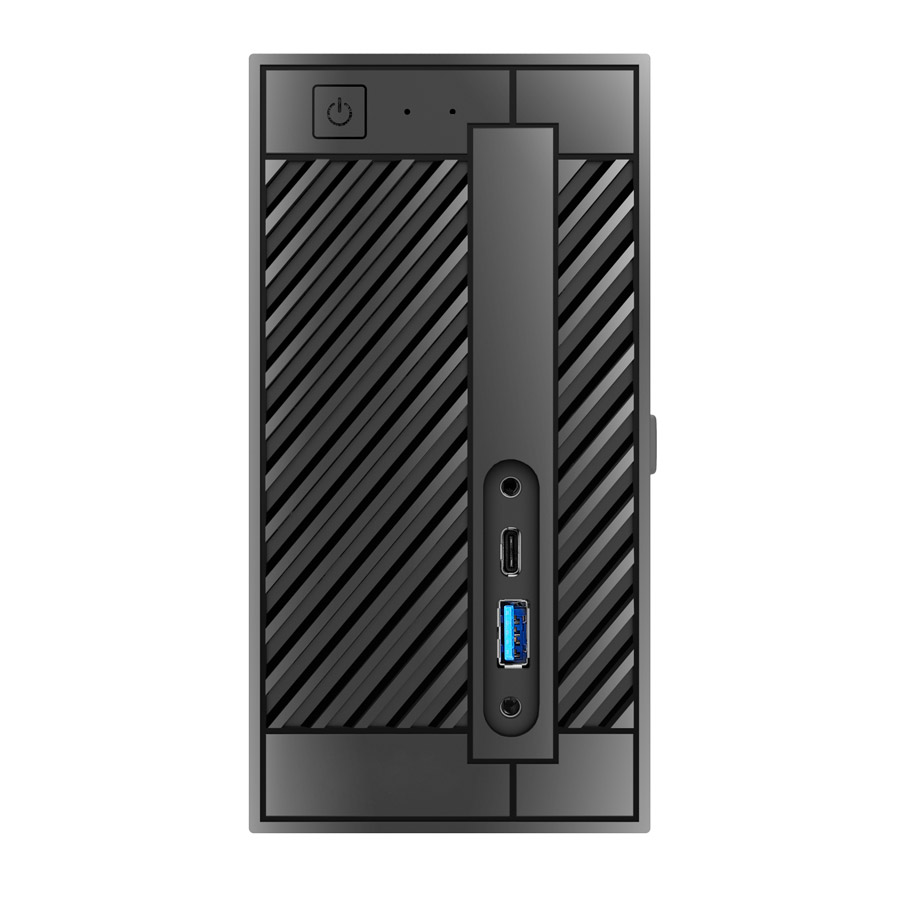

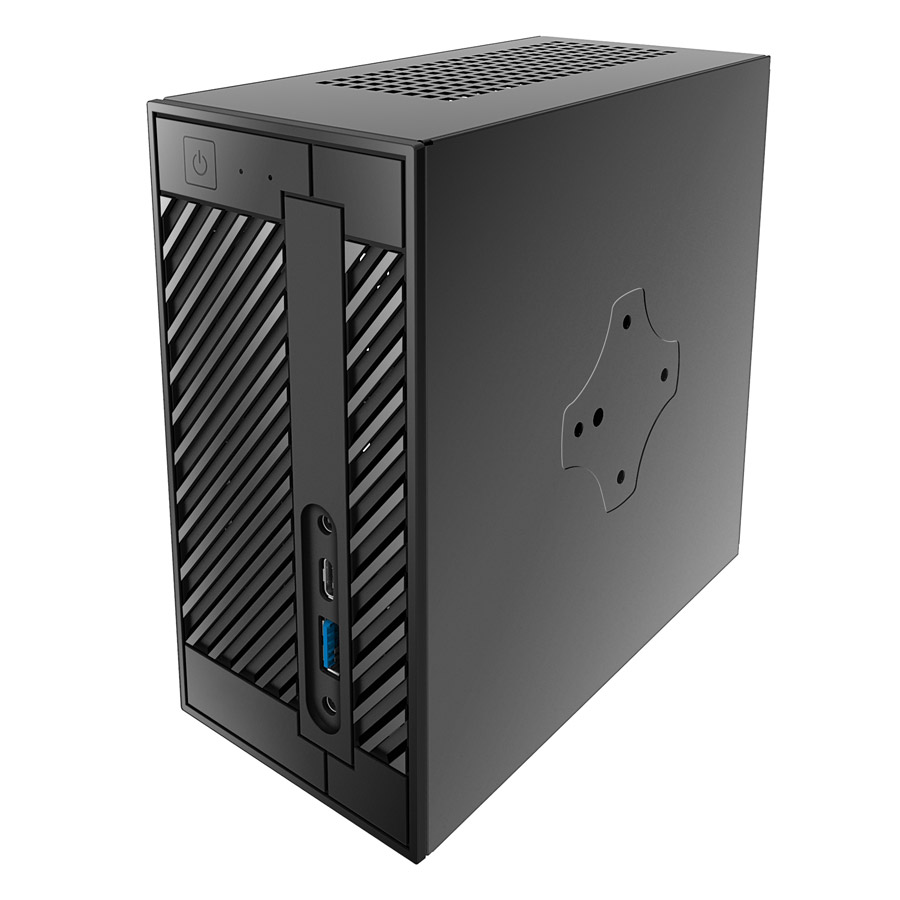

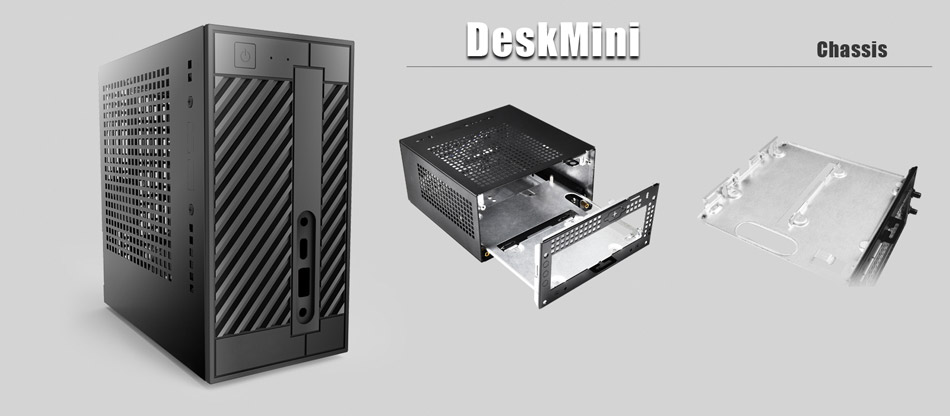

DeskMini

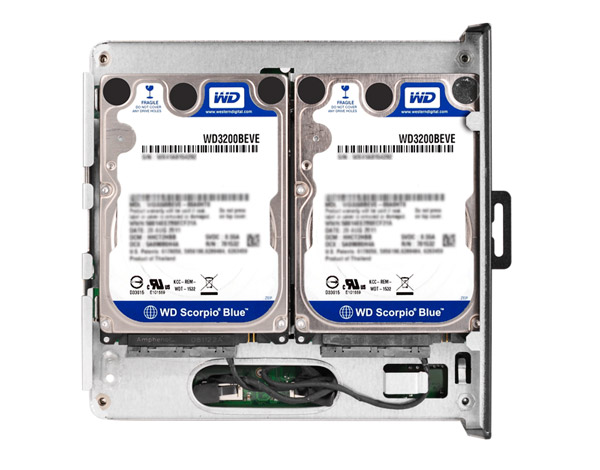

用于安装两块 2.5" 硬盘/固态硬盘的空间

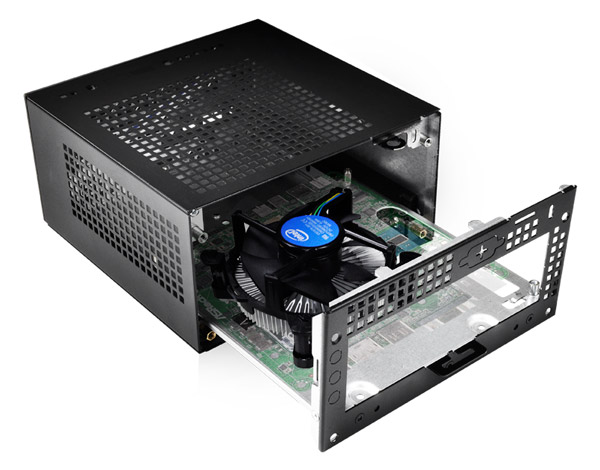

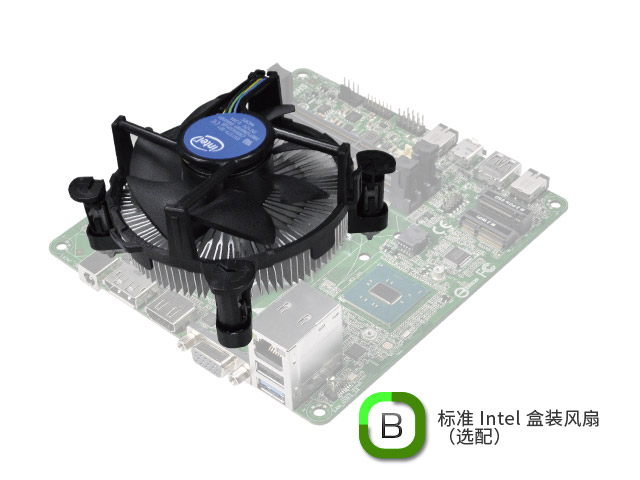

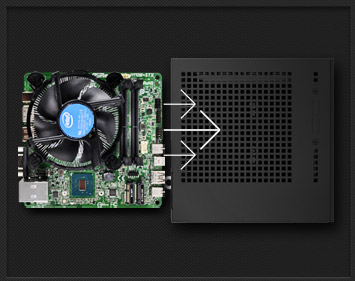

用于安装标准 Intel 盒装风扇的空间

自定义项目

相册



产品规格

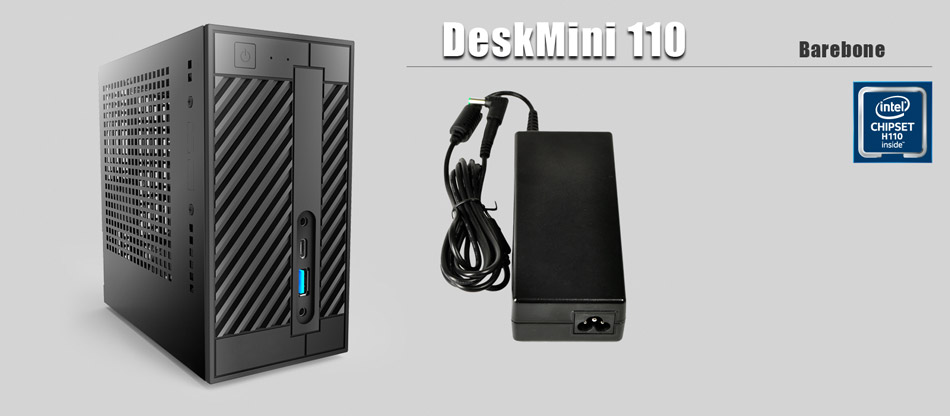

DeskMini 110

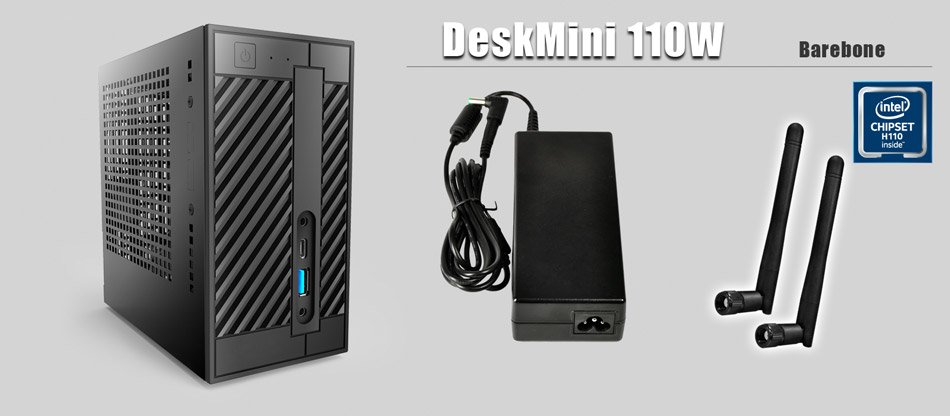

DeskMini 110W

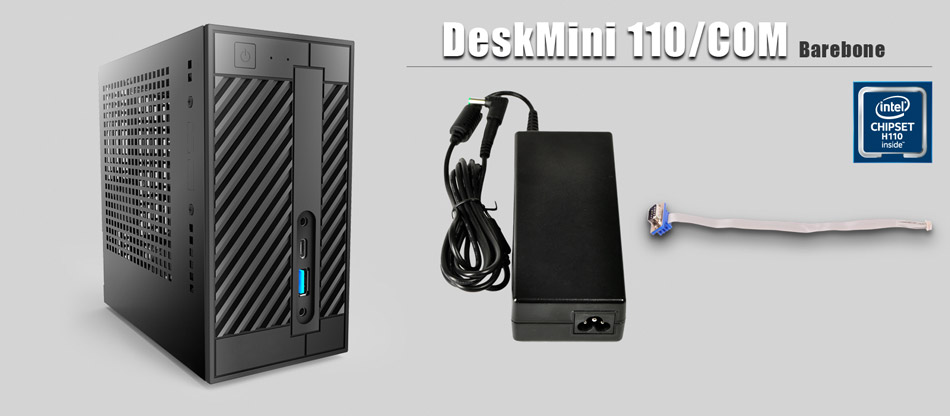

DeskMini 110/COM

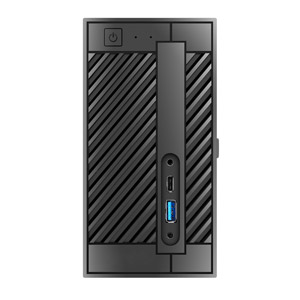

Chassis 1.92L (155 x 155 x 80mm)
CPU Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) (Max. TDP 65W)
CPU cooling Supports Standard Intel Box Fan Coolers

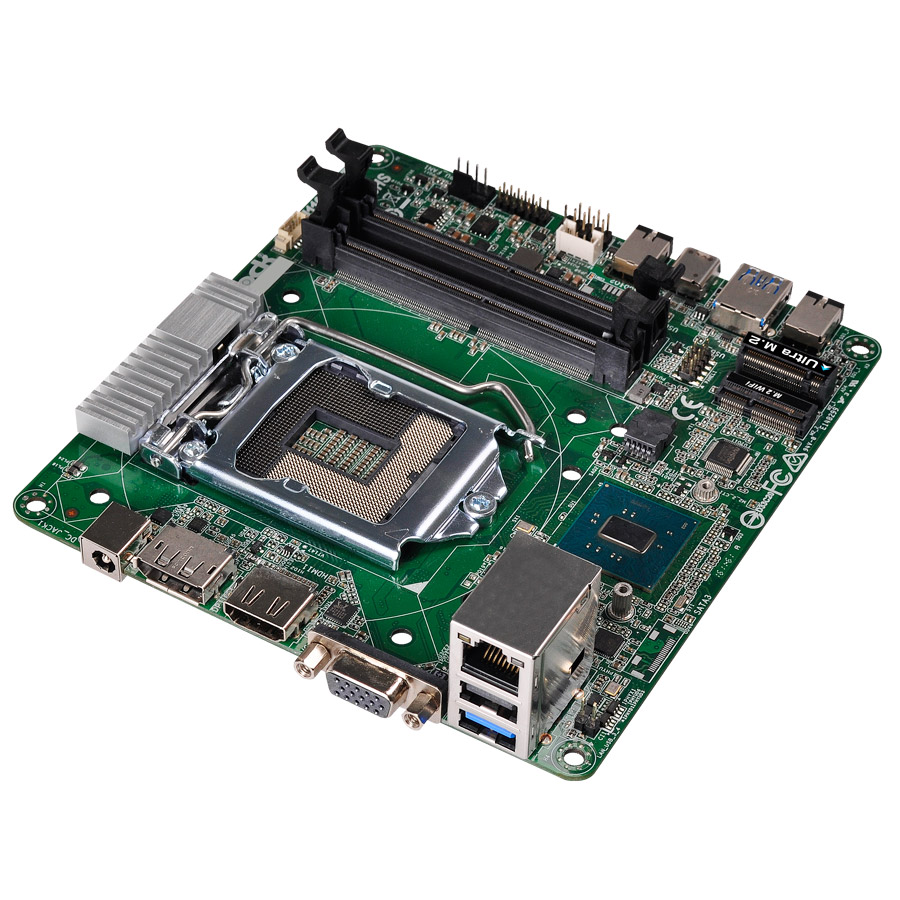

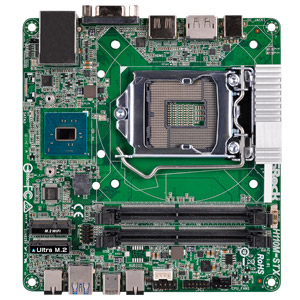

Motherboard ASRock H110M-STX (Mini-STX)
Chipset Intel H110
Graphics Intel HD Graphics
Memory Supports DDR4 2133MHz, 2 x SO-DIMM Slots, Max. 32GB
Audio Realtek ALC283
LAN Intel Gigabit I219V LAN
Expansion Slots 1 x M.2 (key E 2230) Slot for WiFi + BT Module,
1 x M.2 SSD Slot (Supports type 2280 M.2 PCIe Gen3 x4)*
* SATA type M.2 module is not supported.
Front I/O Power Button, Power LED & HDD LED
1 x USB 3.0, 1 x USB 3.0 (Type-C),
1 x Headphone with MIC , 1 x MIC-In

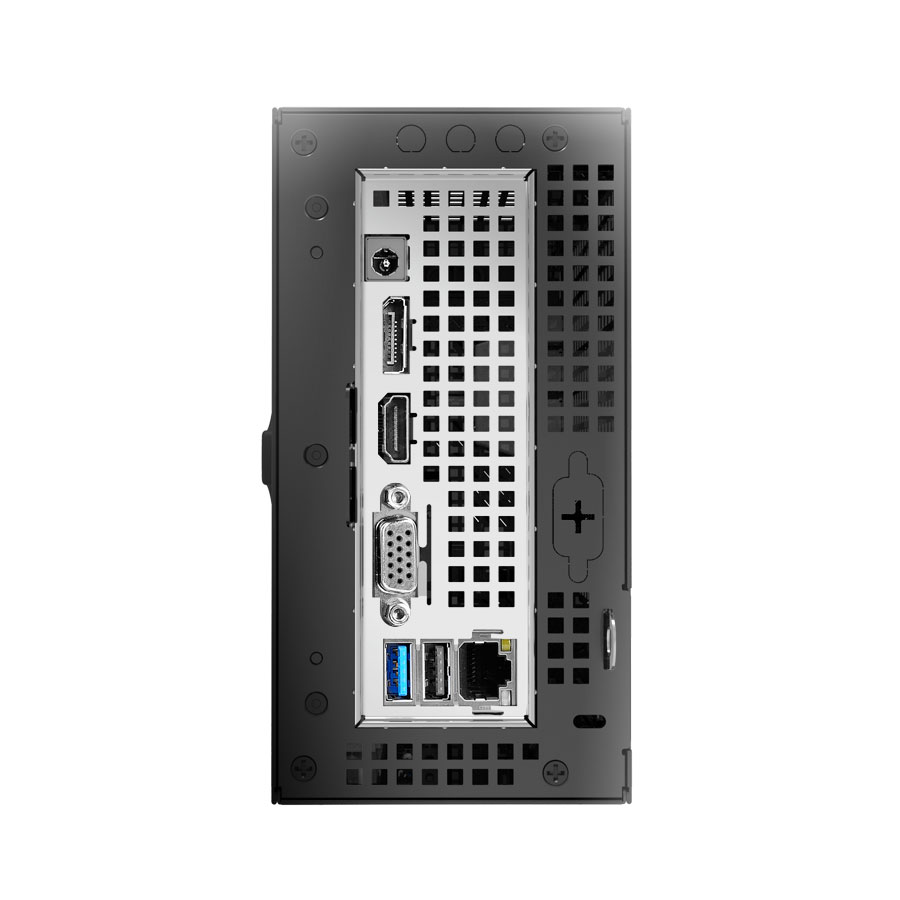

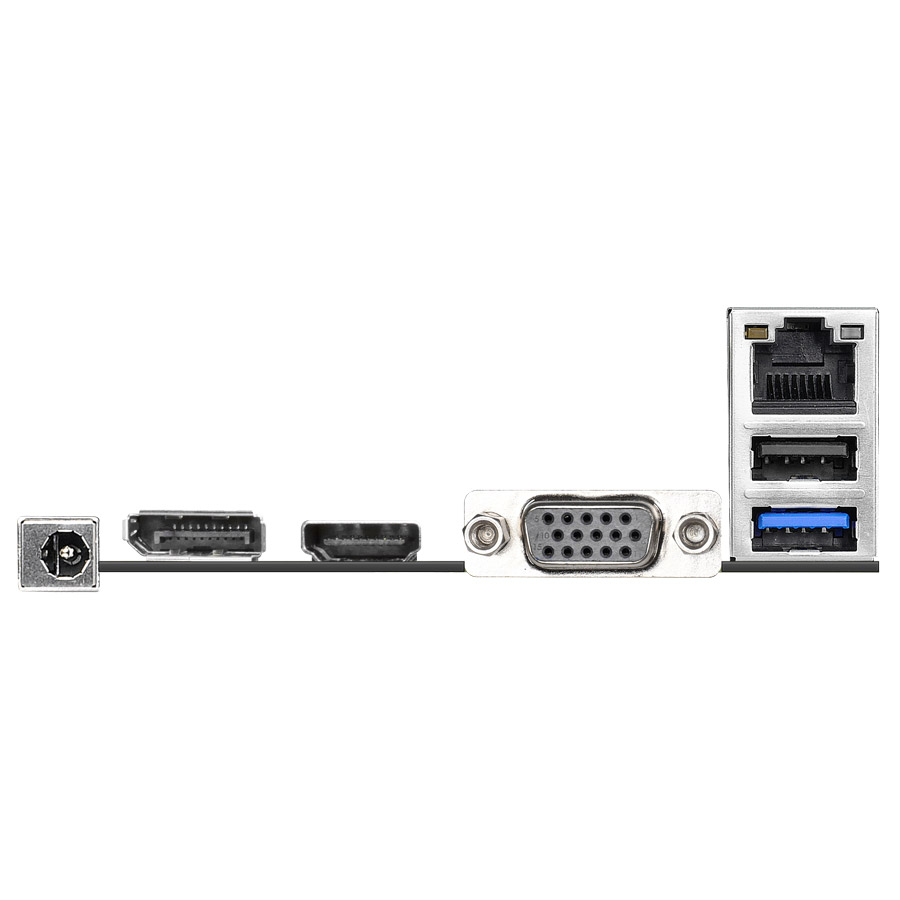

Rear I/O 1 x VGA , 1 x HDMI, 1 x DP, 1 x USB 3.0,
1 x USB 2.0, 1 x LAN, 1 x DC-In Jack
Onboard Connectors 1 x CPU_Fan_1 Connector (4-Pin), 2 x USB 2.0 Headers,
1 x CPU_Fan_2 Connector (5-Pin), 1 x Internal Speaker Header(4-Pin) ,
1 x Front Panel Header
* Optional: Chassis Intrusion (2-Pin)
Drive Bays Supports 2 x 2.5" HDDs or SSDs
* HDD support type: 2.5" SATA hard drive(7mm & 9.5mm)
Power adapter 120W/19V Power Adapter
Operation temp. 0-35°C
Accessory 1 x CD , 1 x QIG , 1 x 120W Power Adapter , 1 x Power Cord(by region) , 2 x SATA Cables
Remark 1 x Kensington Lock, 1 x Key Lock

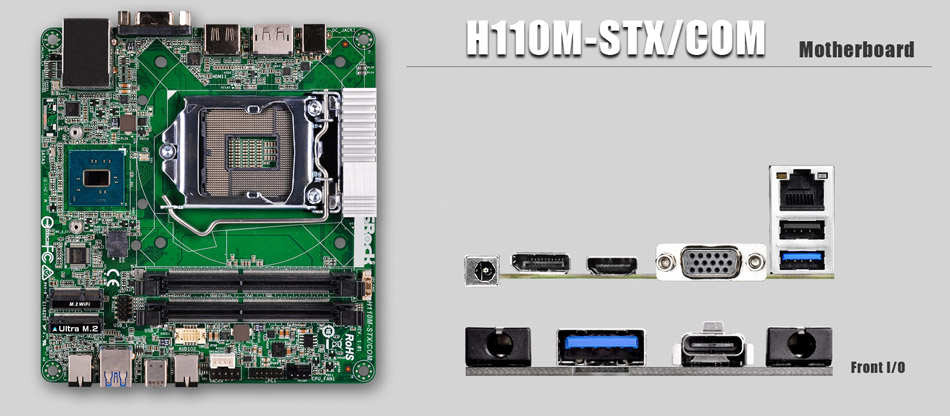

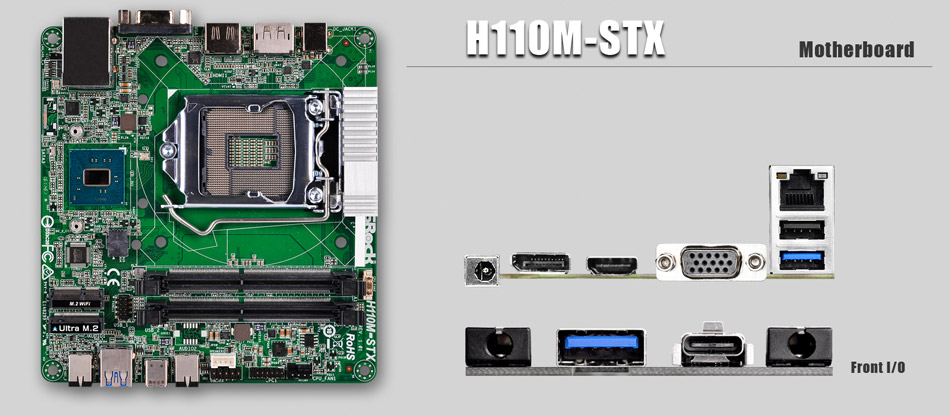

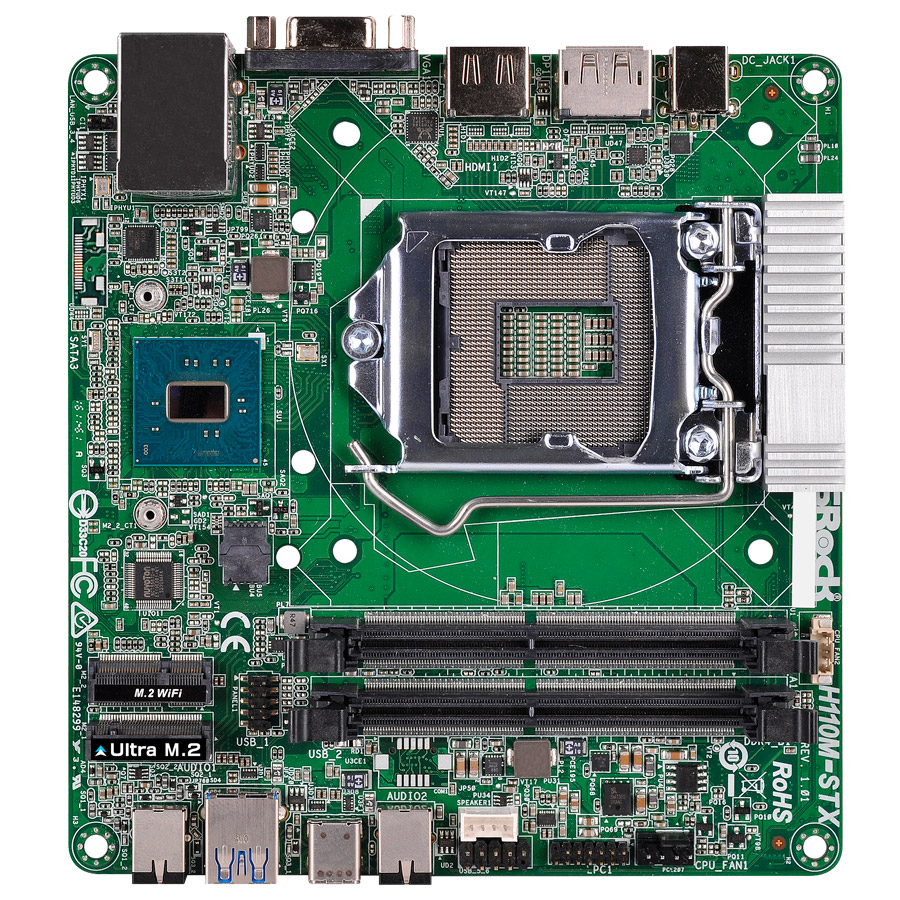

H110M-STX

H110M-STX/COM

Q170M-STX

Form Factor Mini-STX
CPU Supports Intel 6th Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151) (Max. TDP 65W)
Chipset Intel H110
Memory Supports DDR4 2133MHz, 2 x SO-DIMM Slots, Max. 32GB
Graphics Intel HD Graphics
Graphics Outputs 1 x HDMI, 1 x DP, 1 x VGA
Wi-Fi Slot 1 x M.2 (key E 2230) Slot for WiFi + BT Module
Storage 2 x SATA3 with Power connectors, 1 x M.2 SSD Slot
(Supports Type 2280 M.2 PCIe Gen3 x4)*
* SATA type M.2 module is not supported.
Audio 1 x Head Phone with MIC Jack, 1 x MIC-In, (Realtek ALC283 Codec)
USB 1 x USB 2.0 Type-A (Rear), 2 x USB 3.0 Type-A (1*Front, 1*Rear),
1 x USB 3.0 Type-C (Front)
LAN Intel Gigabit I219V LAN (I219LM is Optional)
Onboard Connectors 2 x USB 2.0 Headers 1 x Front Panel Header,
1 x CPU_Fan_1 Connector (4-Pin), 1 x CPU_Fan_2 Connector (5-Pin),
1 x DC-In Jack (Supports 19V 120W Power Adapters),
1 x Internal Speaker Header (4-Pin), 1 x Chassis Intrusion Header (2-Pin)
Remark CPU_Fan_1 Connector (4-Pin) supports Intel Box Fan Coolers
CPU_Fan_2 Connector (5-Pin) supports Intel 1L Thermal Modules
Supports TPM 2.0 (Optional)




Chassis 1.92L (155 x 155 x 80mm)
Color Black
Material Steel Body + Plastic Bezel
MB Form Factor Supports Standard Intel Mini-STX MB
CPU Cooling Supports Standard Intel 65W CPU & Intel Box Fan Cooler
Drive Bays Supports 2 x 2.5" HDD or SSD
* HDD support type: 2.5" SATA hard drive(7mm & 9.5mm)
Front I/O Power Button, Power LED & HDD LED, 1 x Space for Head
Phone / MIC, Jack, 1 x Space for MIC Jack, 1 x Space for USB
Connector (Type-A), 1 x Space for USB Connector (Type-C)
Rear I/O Supports Standard Mini-STX I/O Rear Plate
Remarks 1 x Kensington Lock, 1 x Key Lock

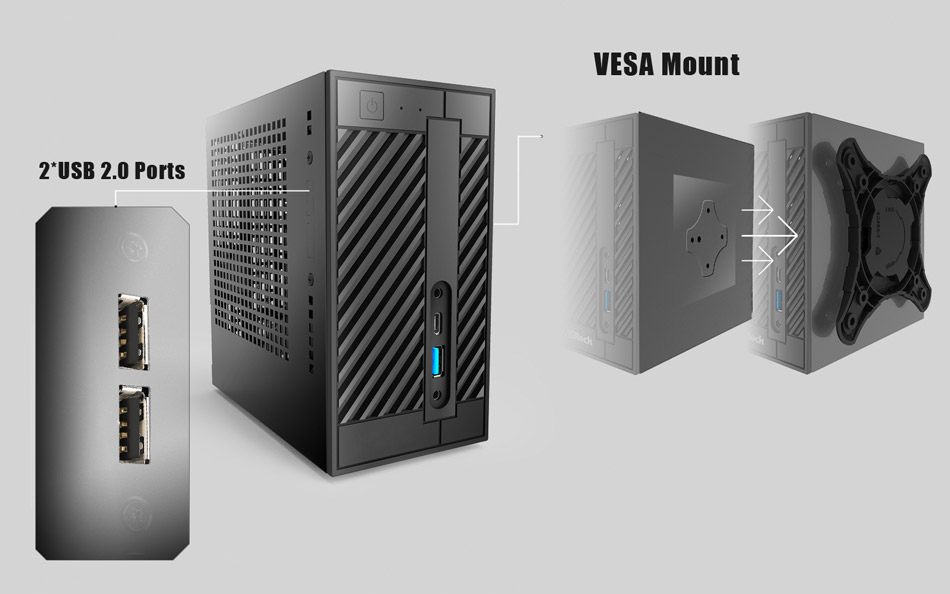

*Optional: 3 x External Antennas, 2 x USB Side Ports, 1 x COM Port , Chassis Intrusion, VESA Mount
