*Features may vary by model.
New Z890 Series Motherboards
- EATX
- 28+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs
- 2 PCIe 5.0 x16, 1 PCIe 4.0 x16
- 2 Blazing M.2 (PCIe Gen5 x4)
3 Hyper M.2 (PCIe Gen4 x4)

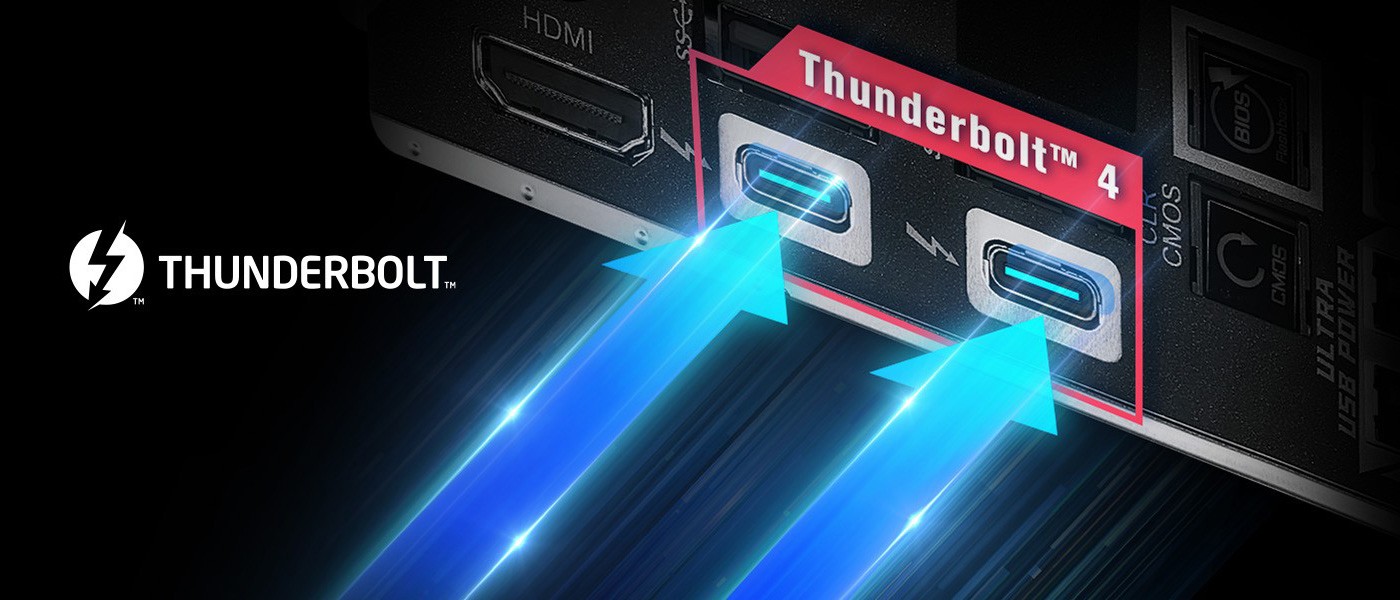

1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (Front)
4 USB 3.2 Gen2 Type-C (Rear)
4 USB 3.2 Gen1 Type-C (Rear)
4 USB 3.2 Gen1 Type-A (Front) - Marvell 10Gbps LAN, 5Gbps LAN

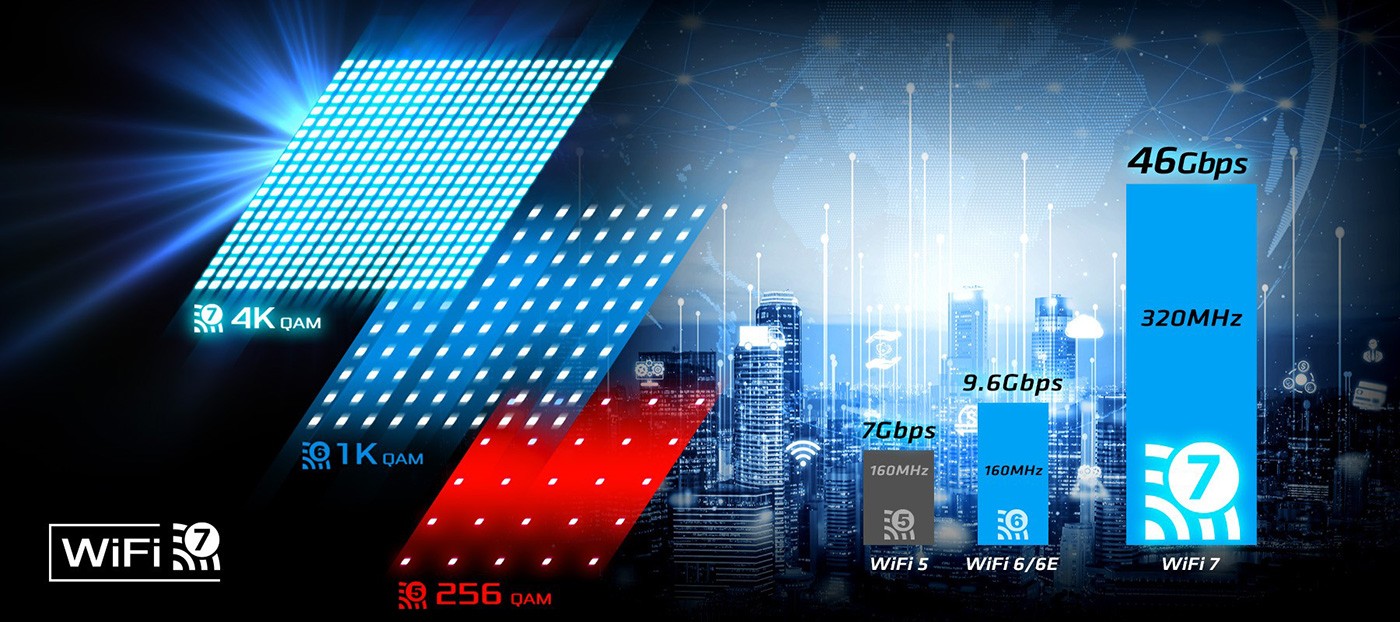

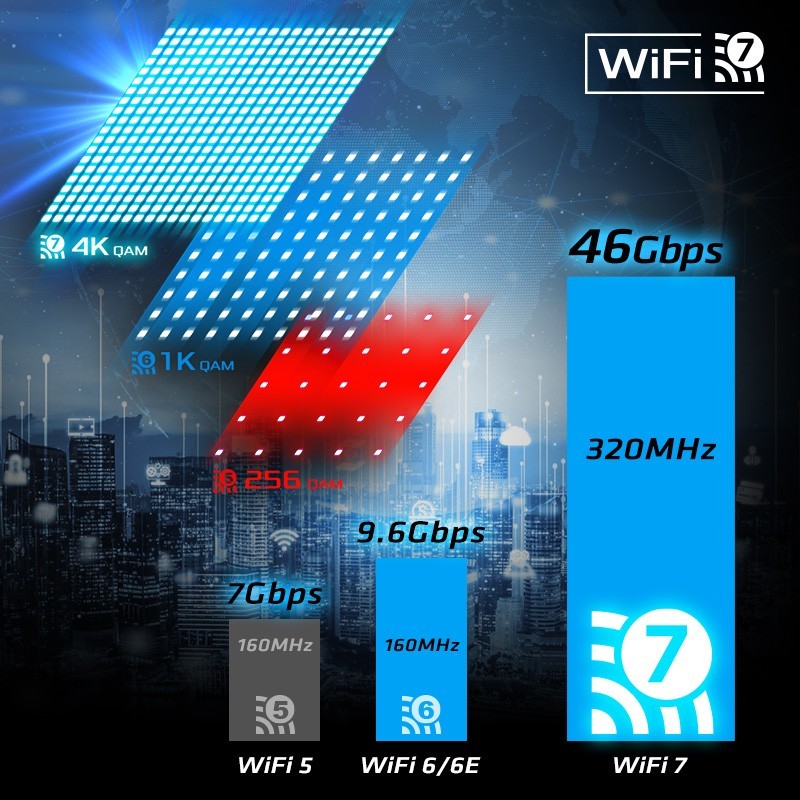

- Killer 802.11be Wi-Fi 7
- Realtek ALC4082 5.1 CH HD Audio Codec, ESS DAC, WIMA Audio Cap, Nahimic Audio

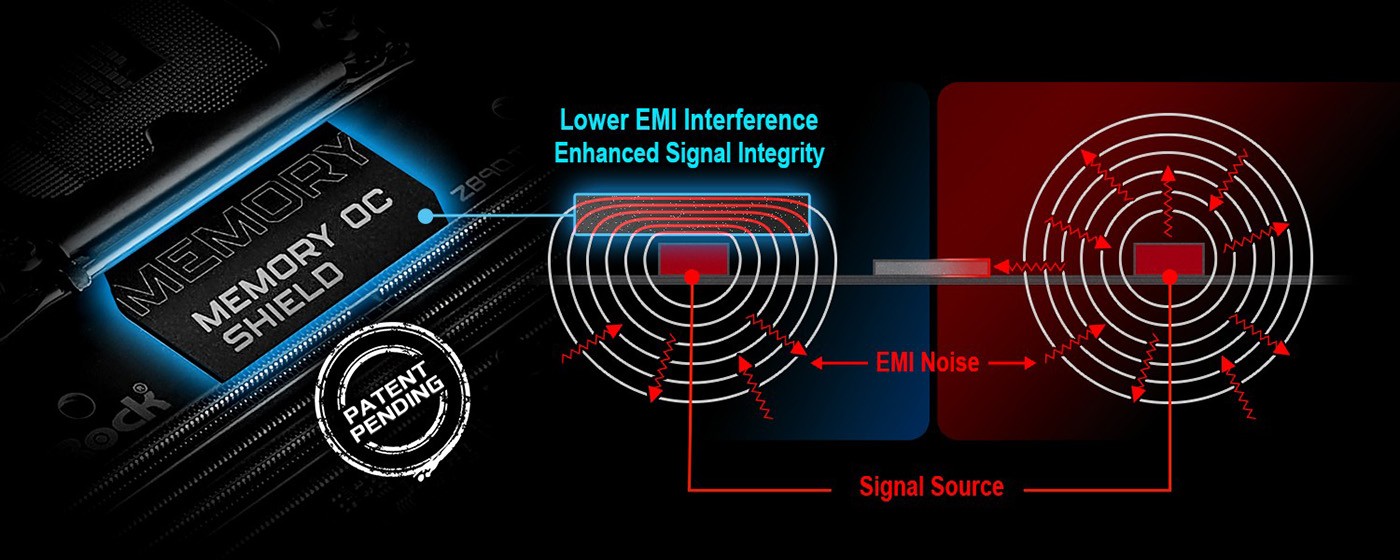

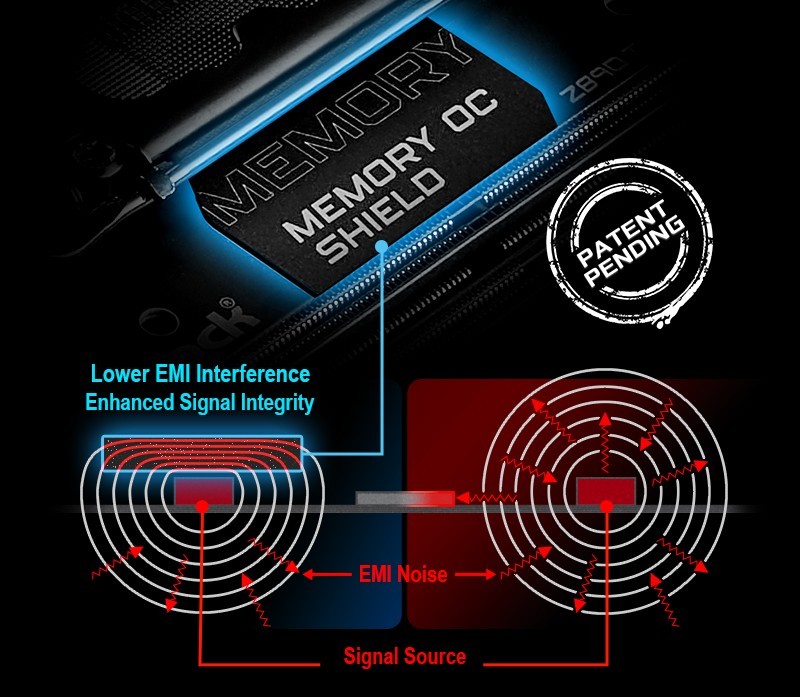

- Memory OC Shield, EZ Release Design
- ATX

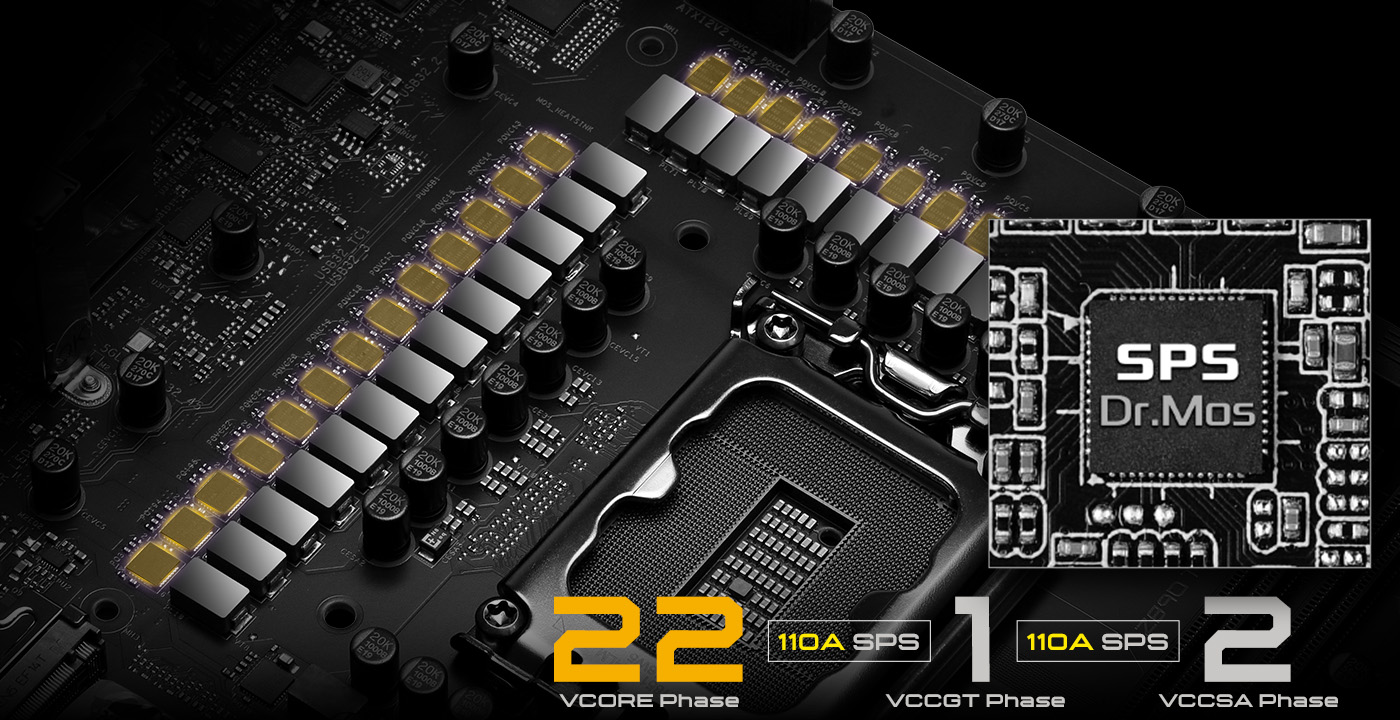

- 22+1+2+1+1 Power Phase, 110A SPS for VCore
- 2 x DDR5 DIMMs
- 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4)
2 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
4 USB 3.2 Gen2 Type-A (Rear)
5 USB 3.2 Gen1 (1 Rear, 4 Front) - 5Gbps LAN & 802.11be WiFi 7
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, Professional Overclocking Toolkit, EZ Release Design
- ATX
- 20+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- 1 Blazing M.2 (PCIe Gen5x4)
4 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
7 USB 3.2 Gen1 (3 Rear, 4 Front) - 5Gbps LAN, 2.5Gbps LAN
- 802.11be WiFi 7
- Realtek ALC4082 5.1 CH HD Audio Codec, ESS DAC, WIMA Audio Cap, Nahimic Audio

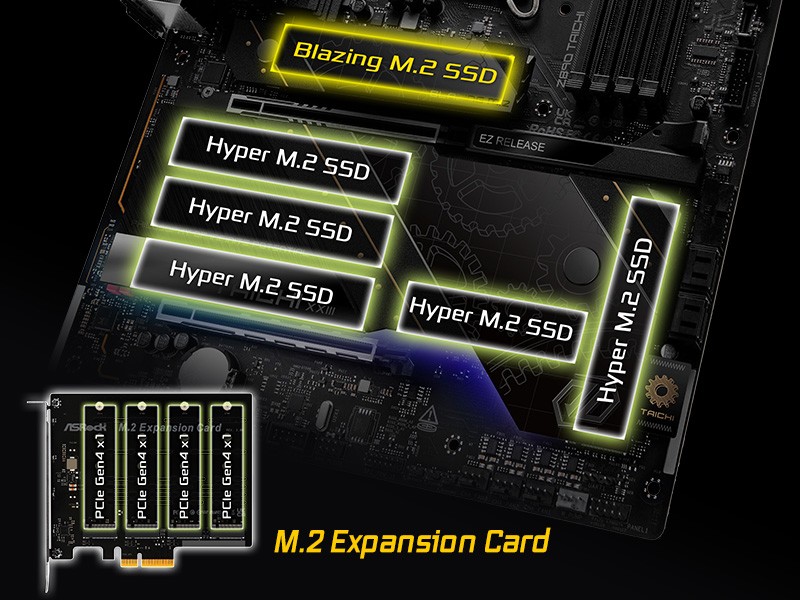

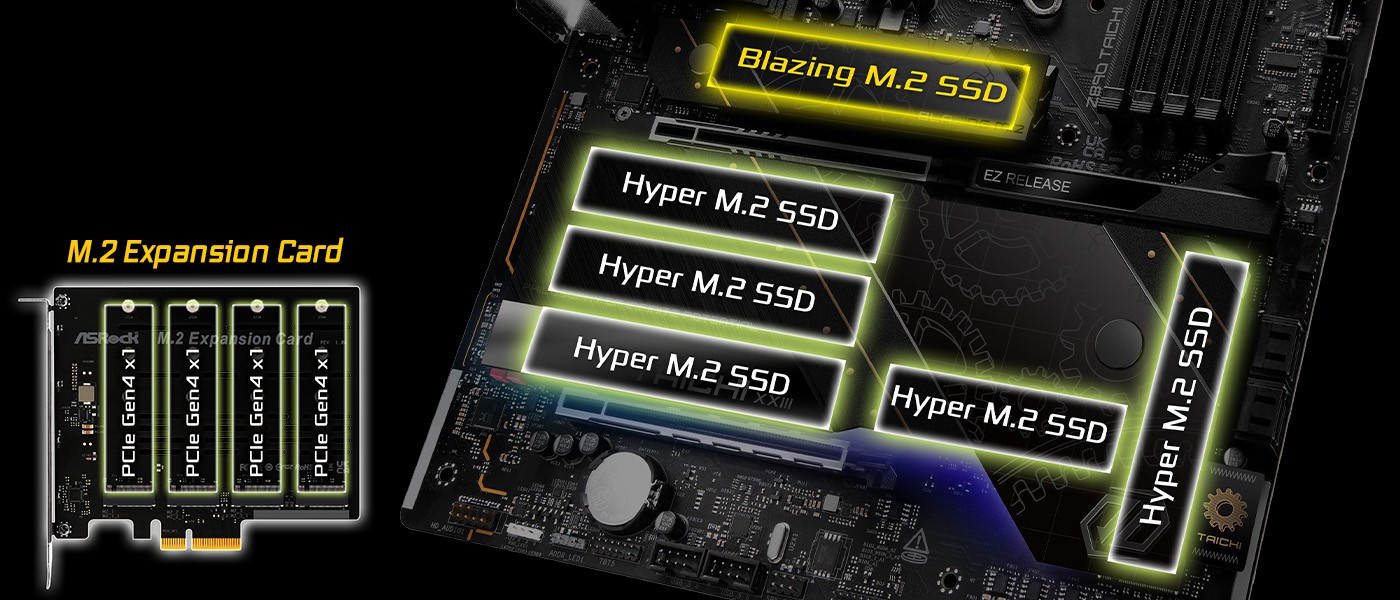

- Memory OC Shield, EZ Release Design, M.2 Expansion Card
- ATX
- 20+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- 1 Blazing M.2 (PCIe Gen5x4)
4 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
7 USB 3.2 Gen1 (3 Rear, 4 Front) - 5Gbps LAN, 2.5Gbps LAN
- 802.11be WiFi 7
- Realtek ALC4082 5.1 CH HD Audio Codec, ESS DAC, WIMA Audio Cap, Nahimic Audio

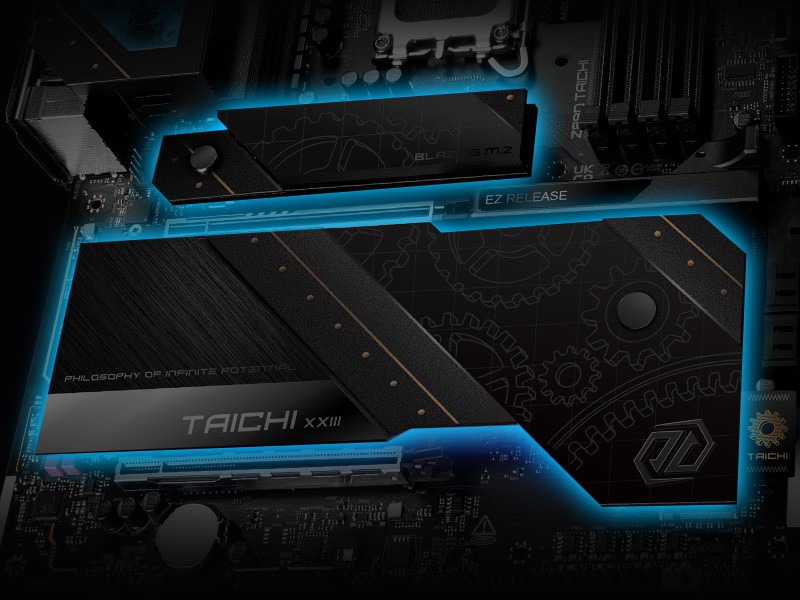

- Memory OC Shield, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
- ATX
- 20+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- 1 Blazing M.2 (PCIe Gen5x4)
4 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
7 USB 3.2 Gen1 (3 Rear, 4 Front) - 5Gbps LAN, Killer E3100G LAN
- 802.11be WiFi 7
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, EZ Release Design, M.2 Expansion Card
- ATX
- 18+1+1+1+1 Power Phase, 80A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - Killer E3100G LAN & 802.11be WiFi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
- ATX
- 18+1+1+1+1 Power Phase, 80A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - Killer E3100G LAN & 802.11be WiFi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

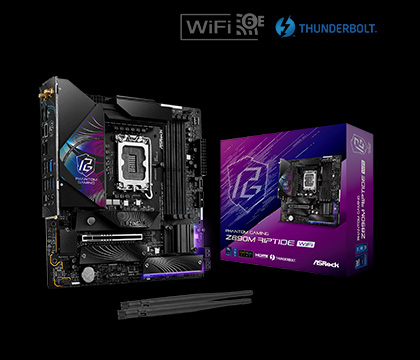

- Micro ATX
- 20+1+2+1+1 Power Phase, 80A Dr.MOS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (4 Rear, 2 Front) - Killer E3100G LAN & 802.11axe WiFi 6E
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

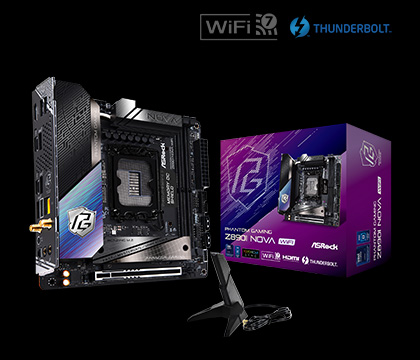

- Mini-ITX
- 12+1+1+1+1 Power Phase, 110A SPS for VCore
- 2 x DDR5 DIMMs
- 1 PCIe 5.0 x16
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
6 USB 3.2 Gen2 Type-A (Rear) - 5Gbps LAN & 802.11be WiFi 7
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio

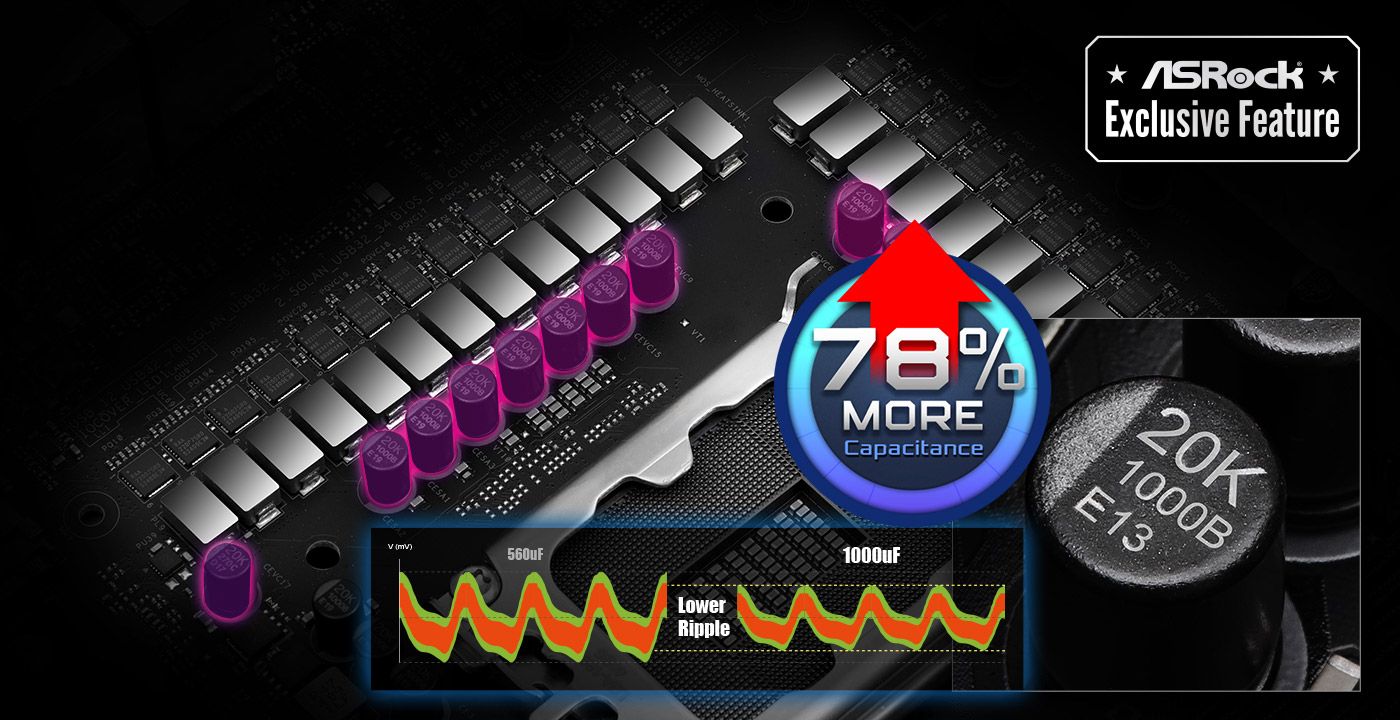

- Memory OC Shield, 20K Cap with 1000uF Capacitance, BIOS Flashback
- ATX
- 18+1+1+1+1 Power Phase, 80A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - 2.5Gbps LAN & 802.11be WiFi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio

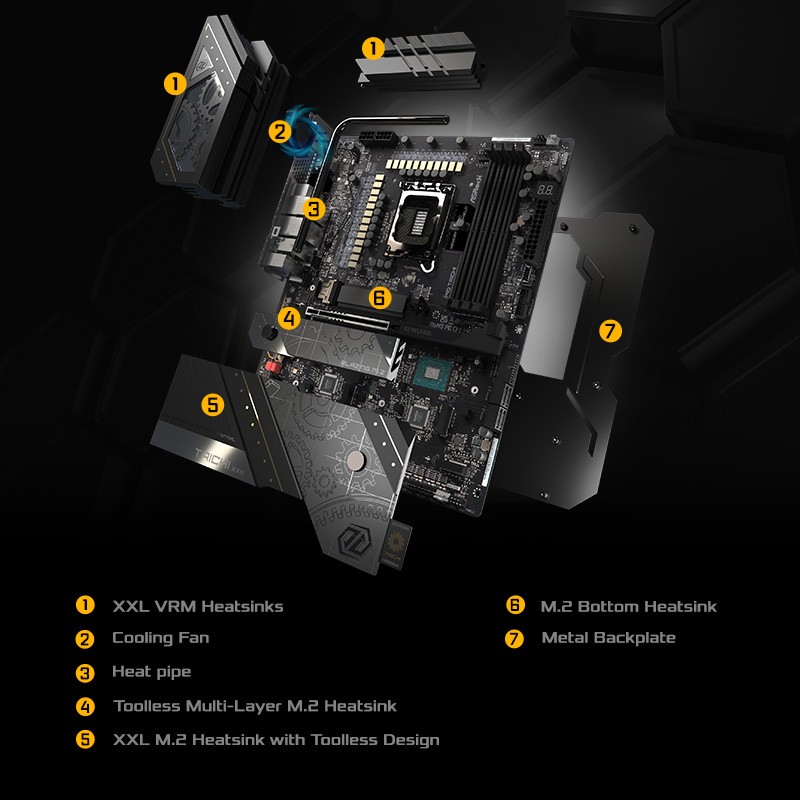

- Memory OC Shield, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
- ATX
- 18+1+1+1+1 Power Phase, 80A SPS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
14 USB 3.2 Gen1 (10 Rear, 4 Front) - 2.5Gbps LAN & 802.11be WiFi 7
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, Toolless Multi-Layer M.2 Heatsink, BIOS Flashback
- ATX
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5Gbps LAN & 802.11axe WiFi 6E
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, M.2 Bottom Heatsink, BIOS Flashback
- ATX
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5Gbps LAN & 802.11axe WiFi 6E
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, M.2 Bottom Heatsink, BIOS Flashback
- ATX
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5Gbps LAN
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- Memory OC Shield, M.2 Bottom Heatsink, BIOS Flashback
- ATX
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5Gbps LAN & 802.11axe WiFi 6E
- Realtek ALC897 7.1 CH HD Audio Codec
- Memory OC Shield, M.2 Bottom Heatsink, BIOS Flashback
- ATX
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore
- 4 x DDR5 DIMMs
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-A (Rear)
6 USB 3.2 Gen1 (2 Rear, 4 Front) - 2.5Gbps LAN
- Realtek ALC897 7.1 CH HD Audio Codec
- Memory OC Shield, M.2 Bottom Heatsink, BIOS Flashback
