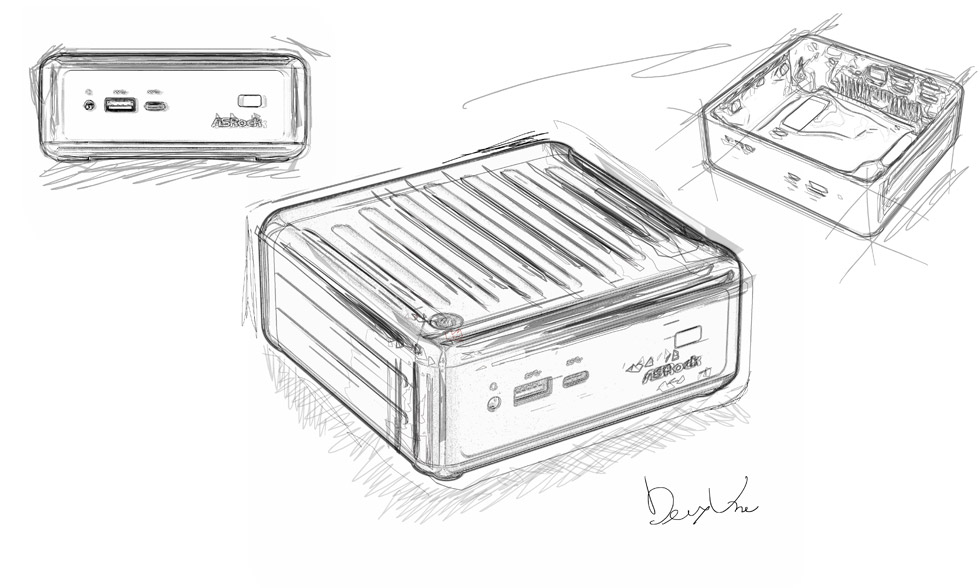

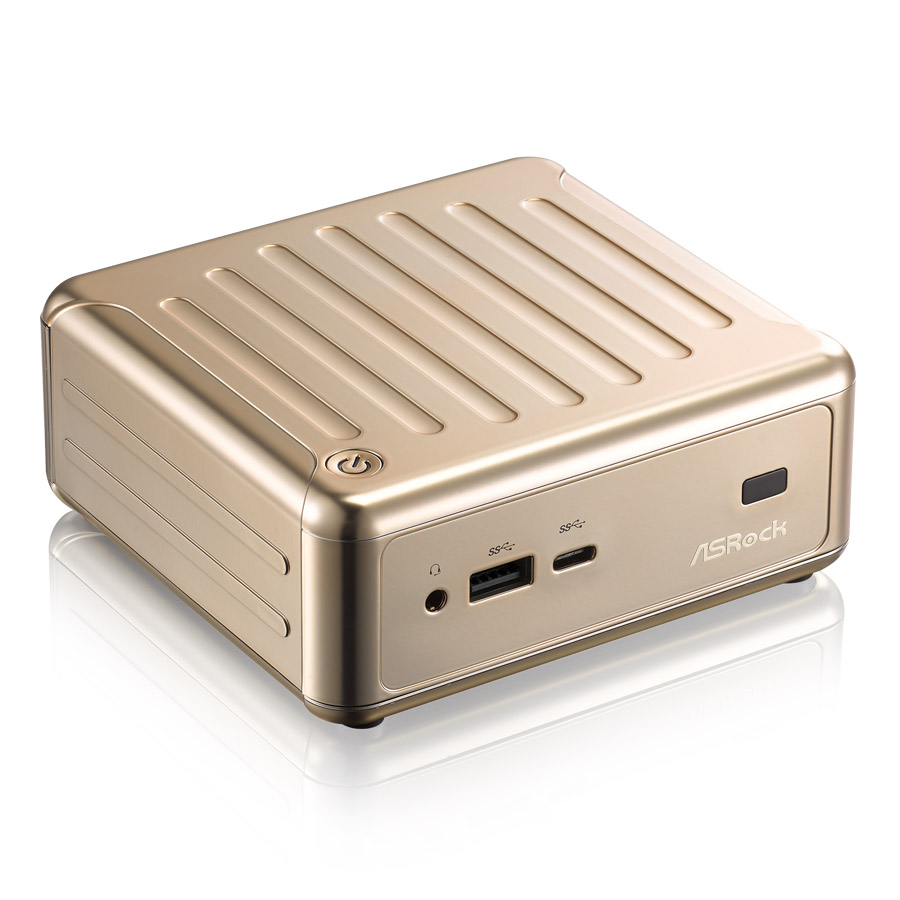

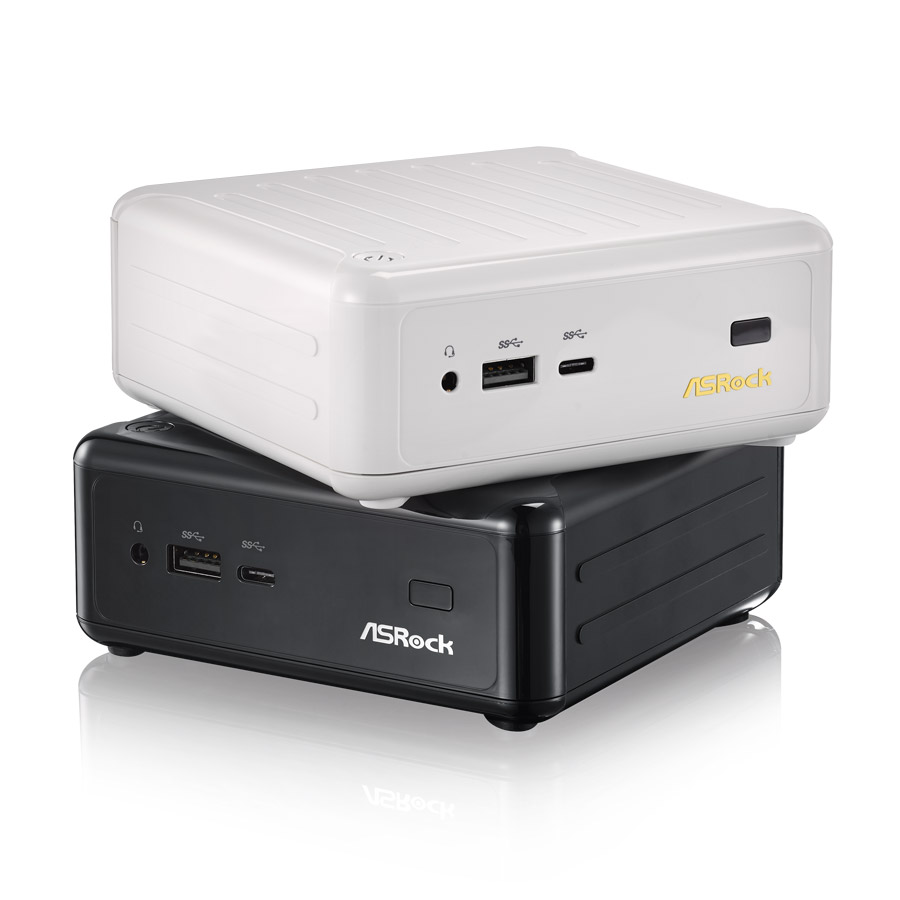

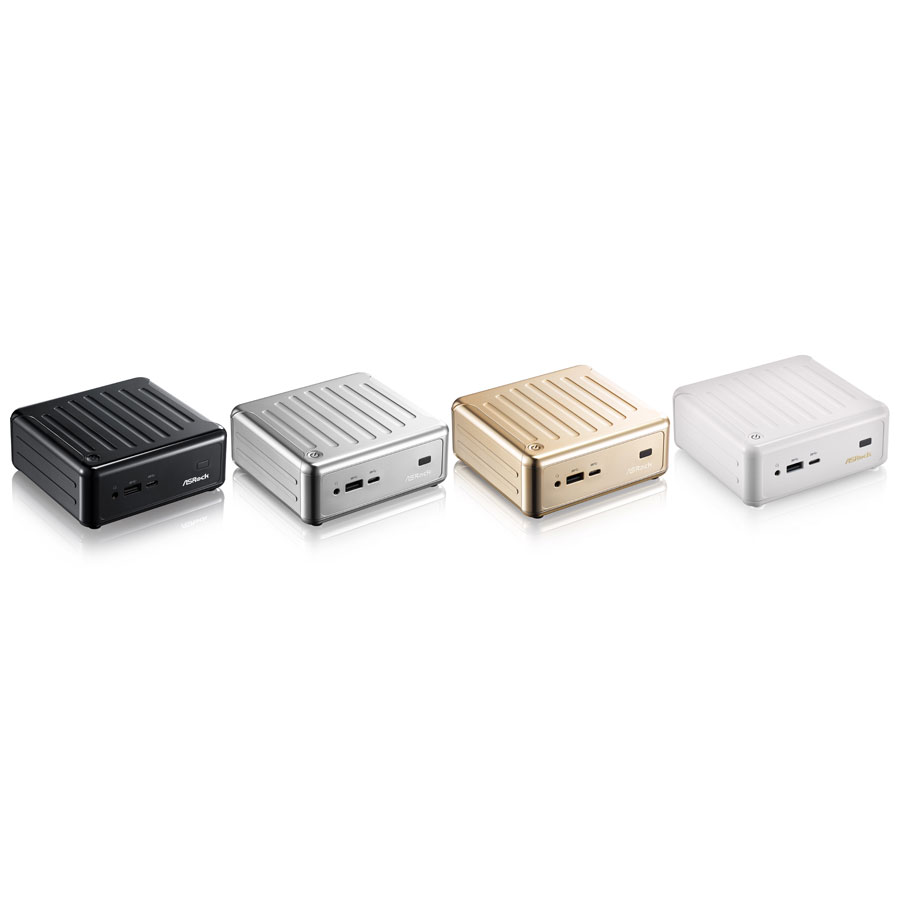

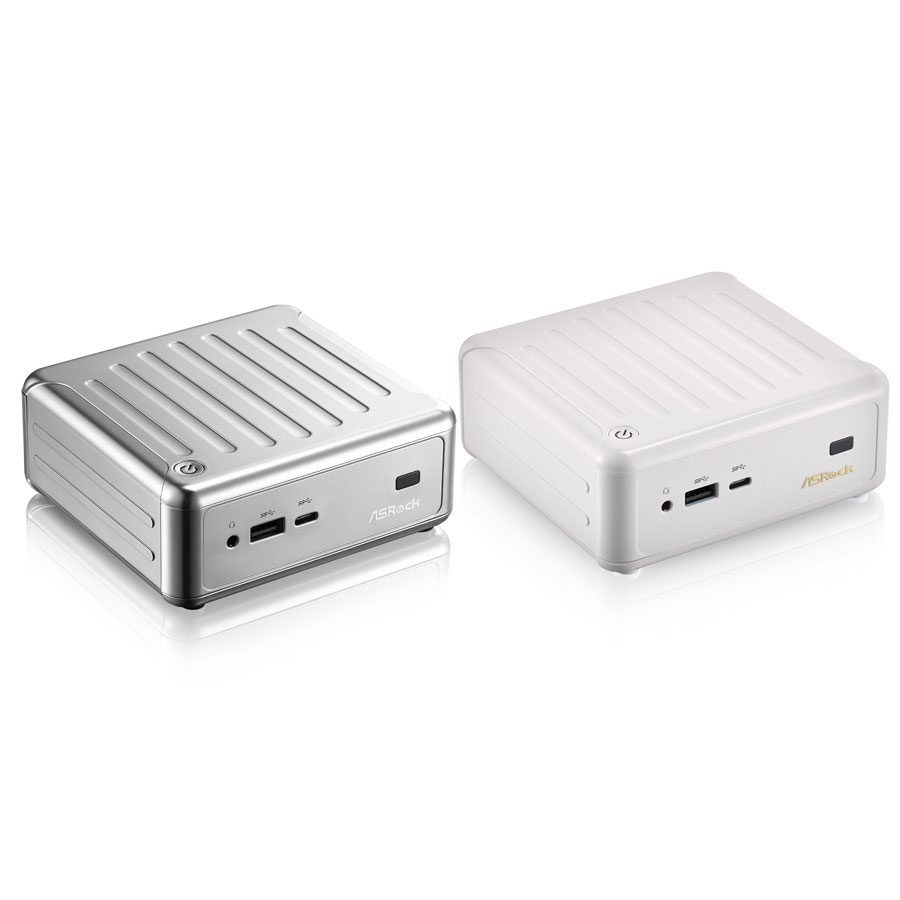

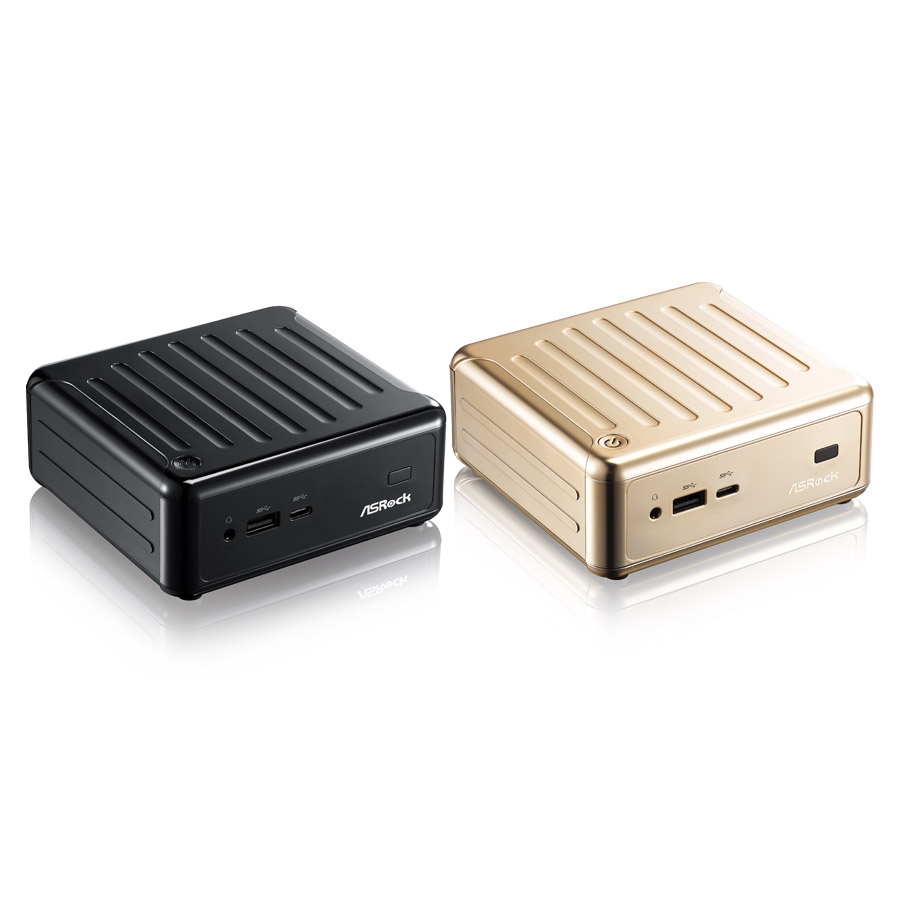

The design concept of ASRock Beebox originated from one of the most common insects – Bees. By squeezing a cutting edge Intel N3000 Series SoC powered motherboard and other peripherals into a compact chassis, Beebox is small, fast, hard working just like a bee, all but the distracting buzzing noise.
Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
※ This DisplayPort only supports DP to D-Sub dongles. DP to HDMI dongles and DP to DVI dongles are not supported.
※ To power up three monitors, please connect your monitors to 2*HDMI and 1*DP ports or 2*HDMI and 1*D-Sub ports via a DP to D-Sub dongle.
The only system in the segment that supports dual channel memory for supporting 4K video playback.
*Dual channel memory is required for 4K video playback. Please install a pair of identical memory DIMMs.
Supports Up to 48CH H.265 IP Cameras
Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704x576) resolution.
The World's First NUC with a USB Type-C Port
USB Type-C doubles the charge speed!

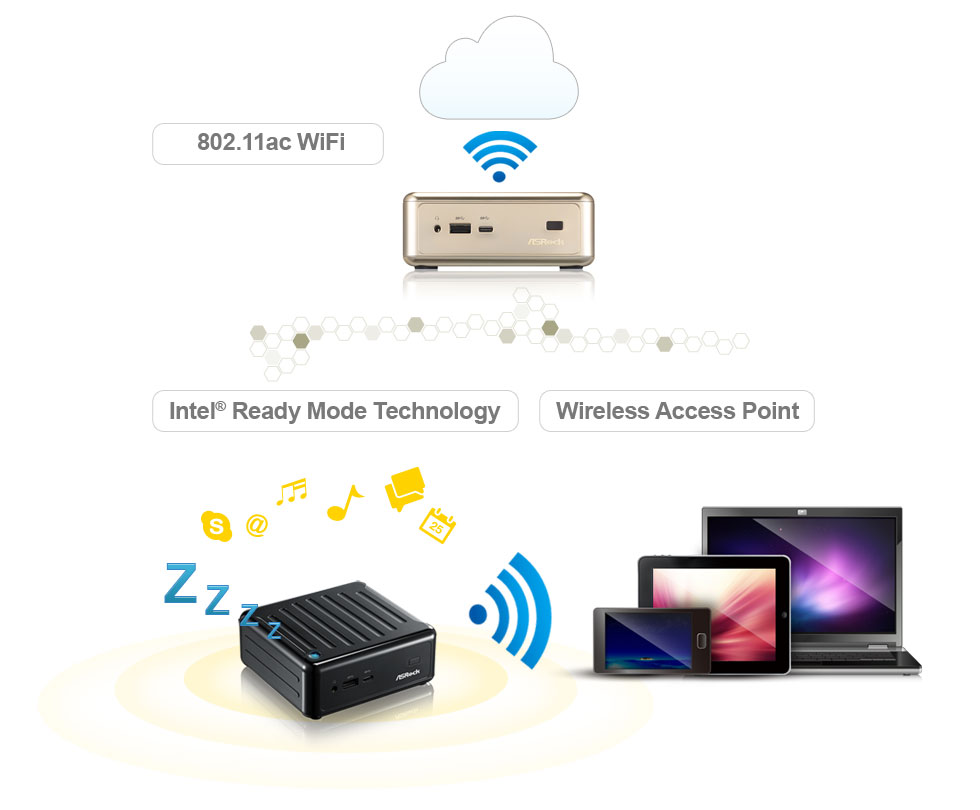

Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module and also works as a wireless access point. With Intel® Ready Mode Technology (RMT), Beebox may remain silent, display off, but still actively receive incoming emails, updates, social media alerts, and continue to serve as a wireless access point while minimizing power consumption.
A special design that produces absolutely zero noise.

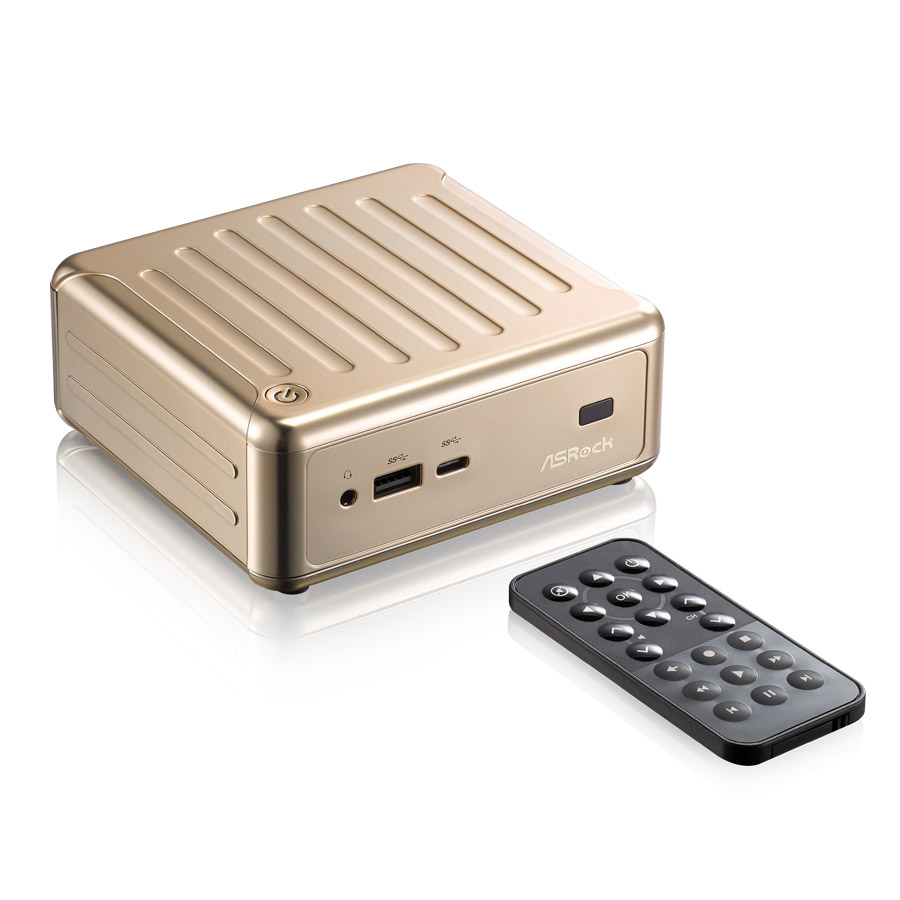

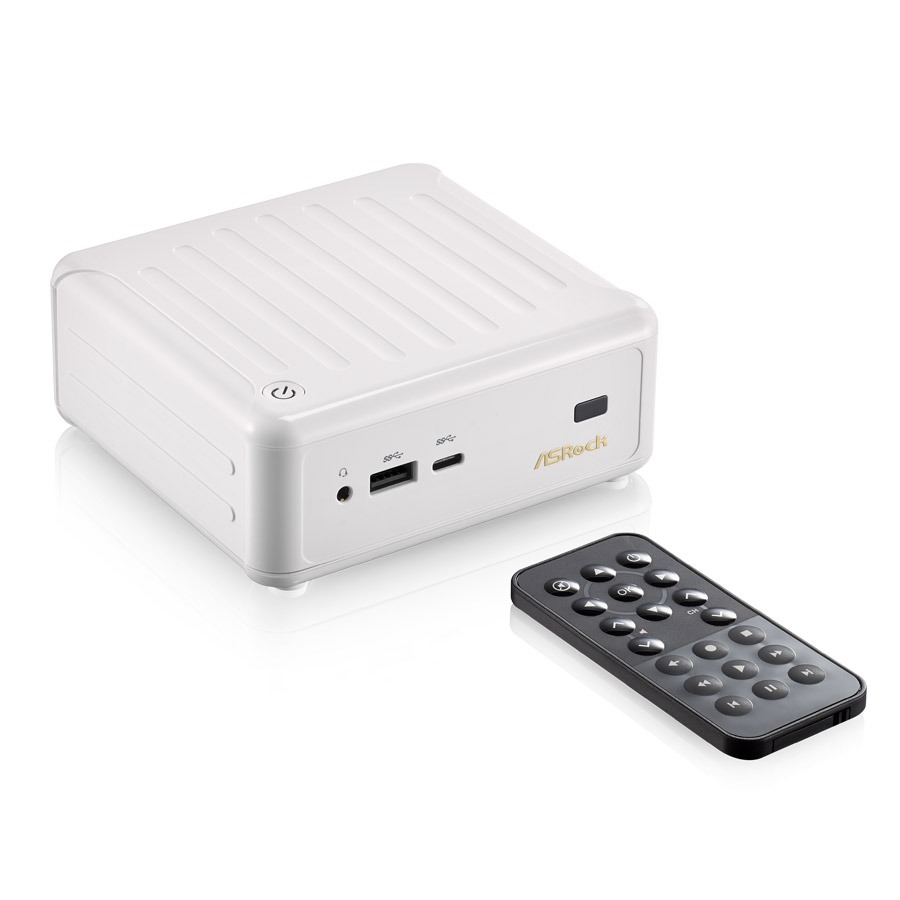

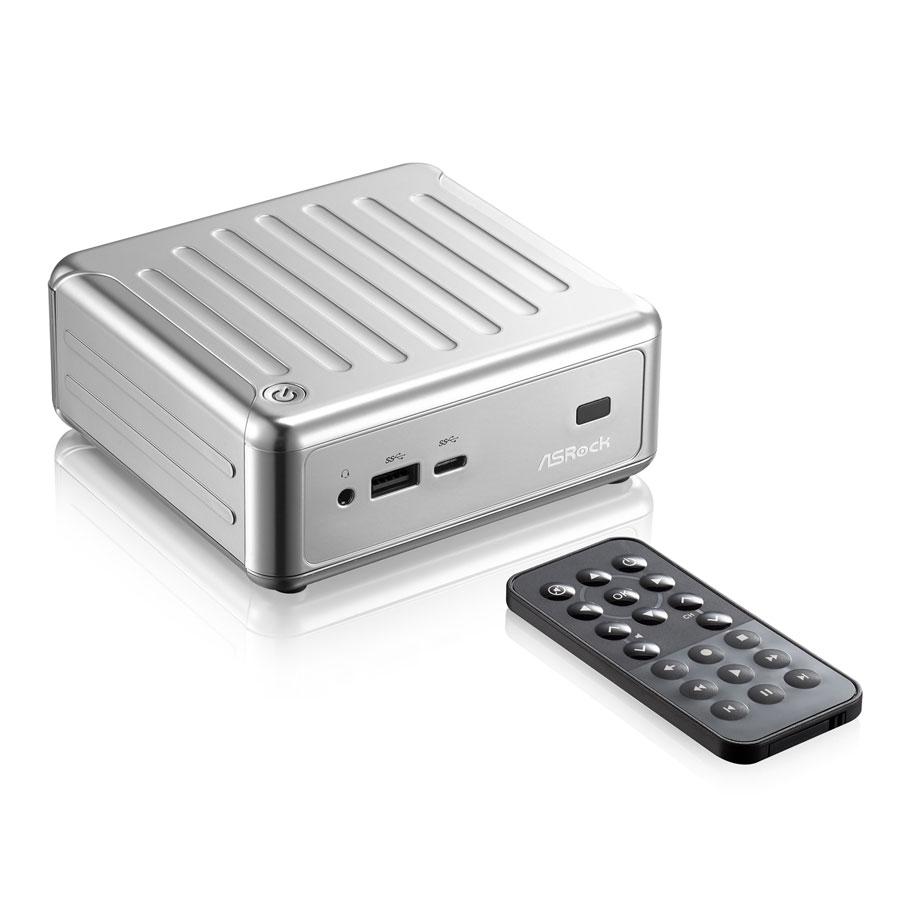

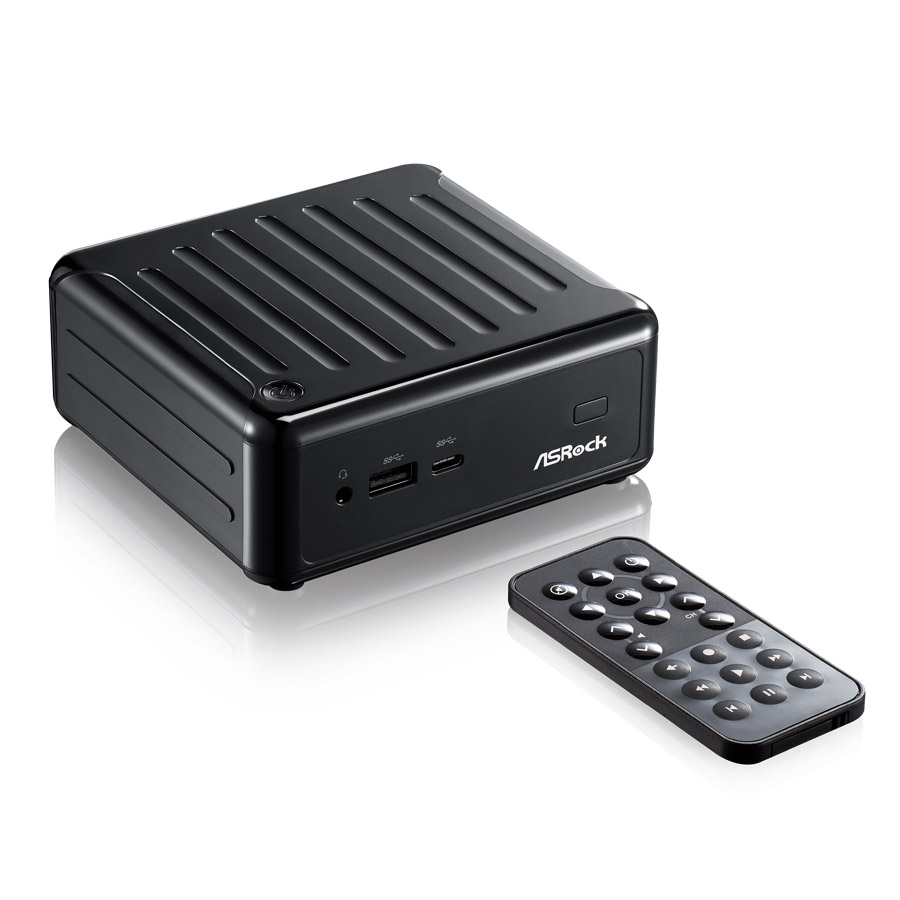

A free bundled remote controller for Beebox.
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
|Model||Full System (With OS)||Full System
Intel® Quad-Core Processor J3160
(Up to 2.24GHz)
Intel® Quad-Core Processor N3150
(Up to 2.08GHz)
Intel® Dual-Core Processor N3050
(Up to 2.16GHz)
|Intel® Quad-Core Processor J3160 (Up to 2.24GHz)
Intel® Quad-Core Processor N3150 (Up to 2.08GHz)
Intel® Dual-Core Processor N3000 (Up to 2.16GHz)
|OS||Windows® 10 Home||Windows® 10 32-bit / 10 64-bit / 8.1 64-bit / 7 64-bit compliant|
|mSATA slot||Supports 1 x mSATA slot||128GB mSATA SSD||Supports 1 x mSATA slot|
|2.5"HDD||Supports 1 x 2.5" SATA HDD/SSD|
|Wi-Fi Slot||802.11ac + BT 4.0|

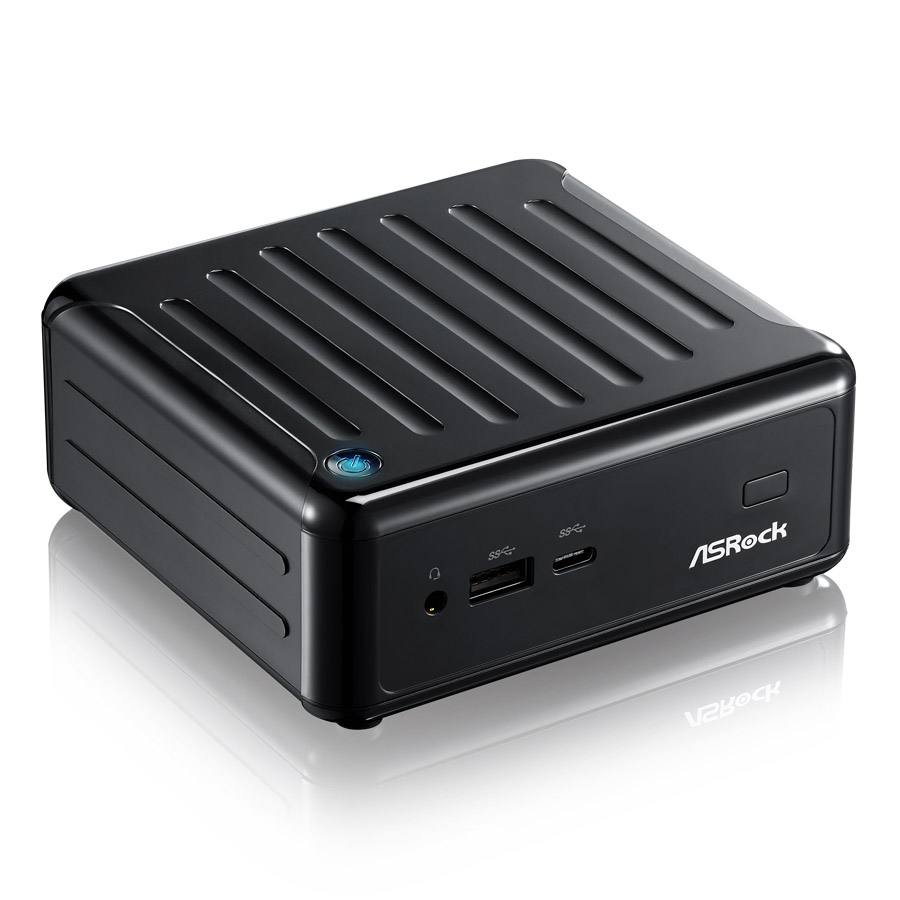

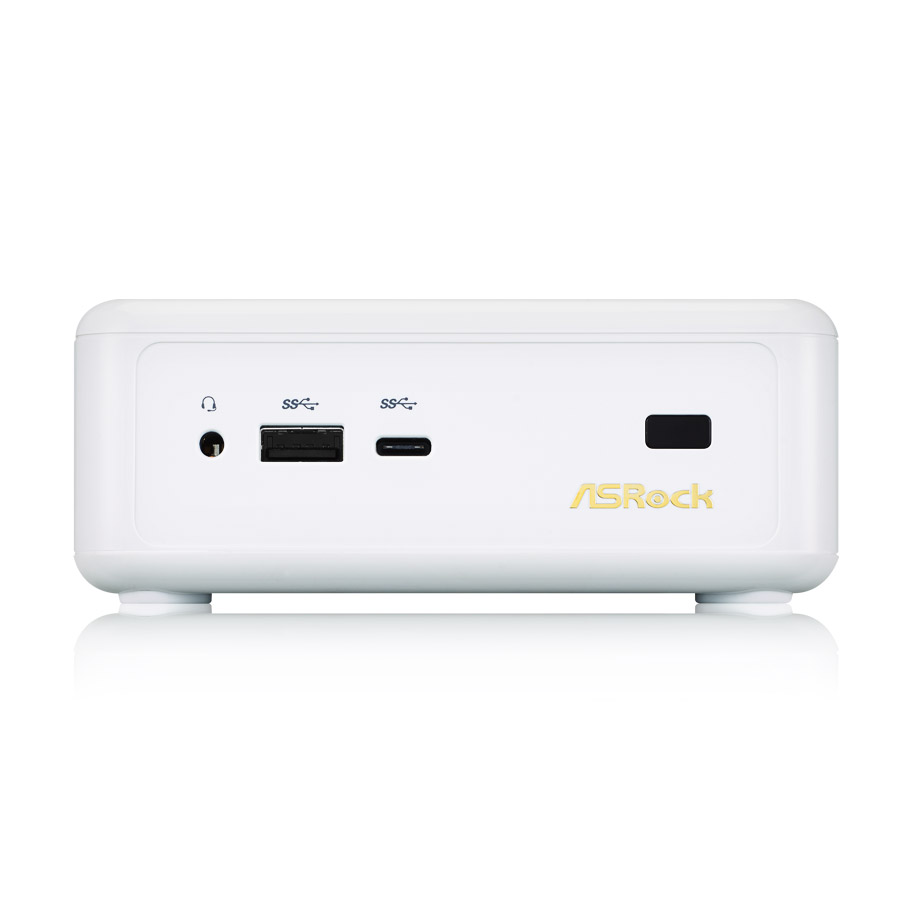

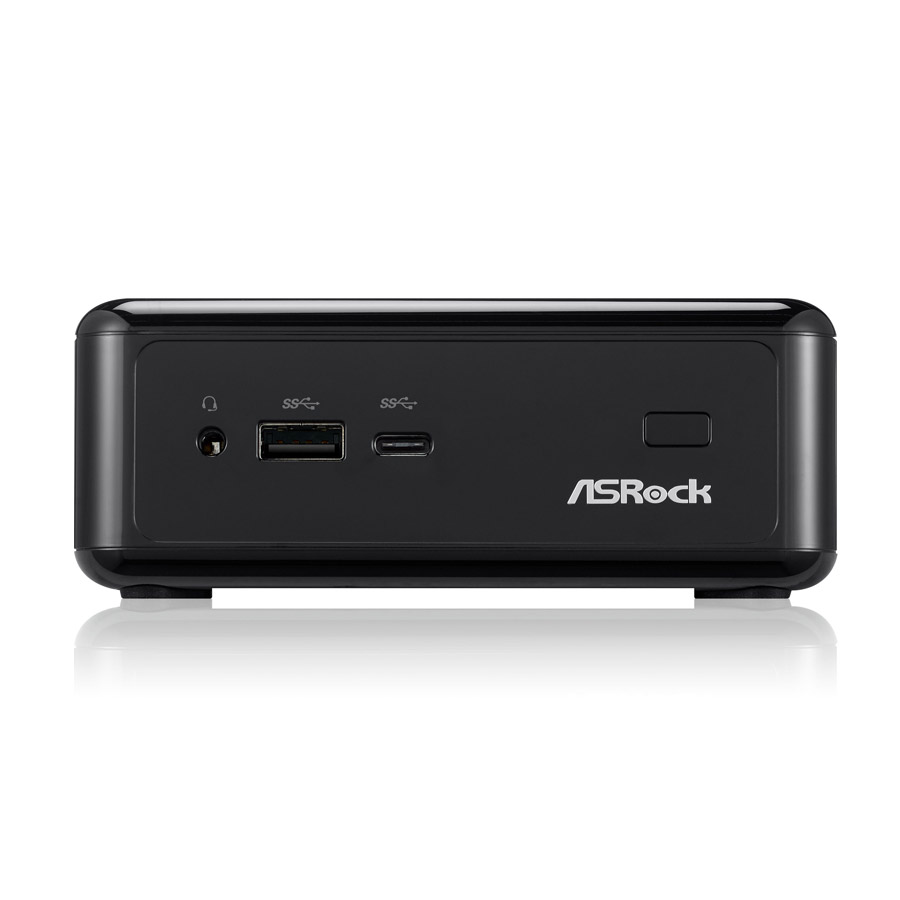

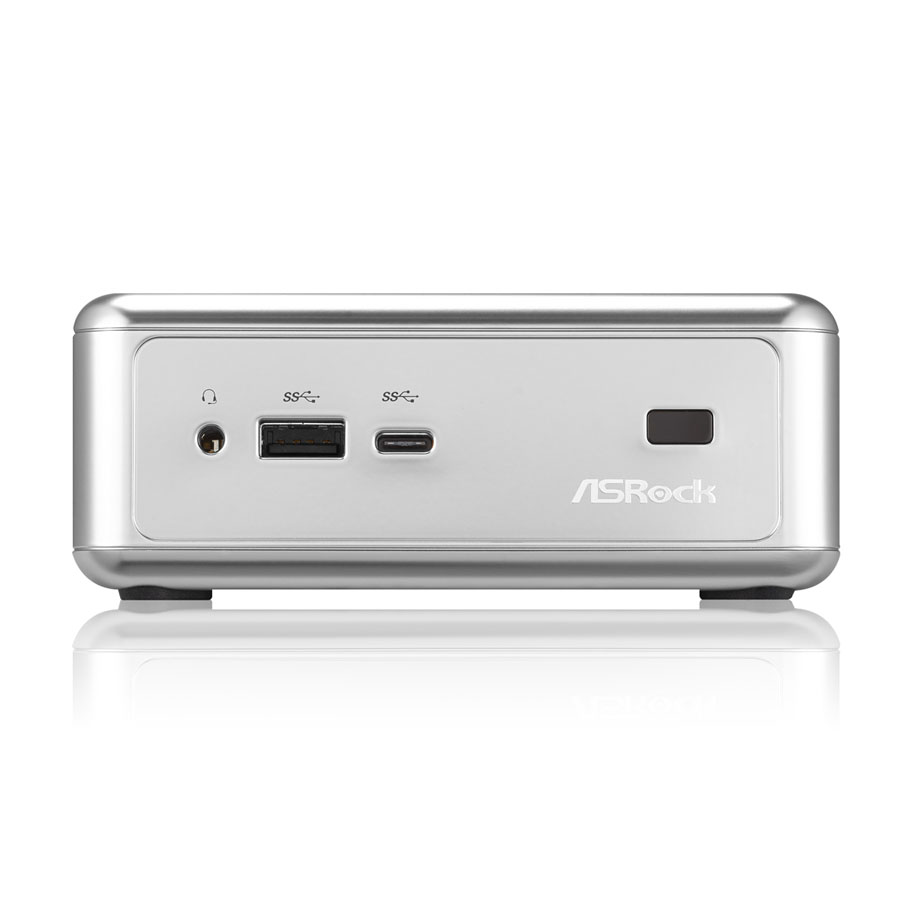

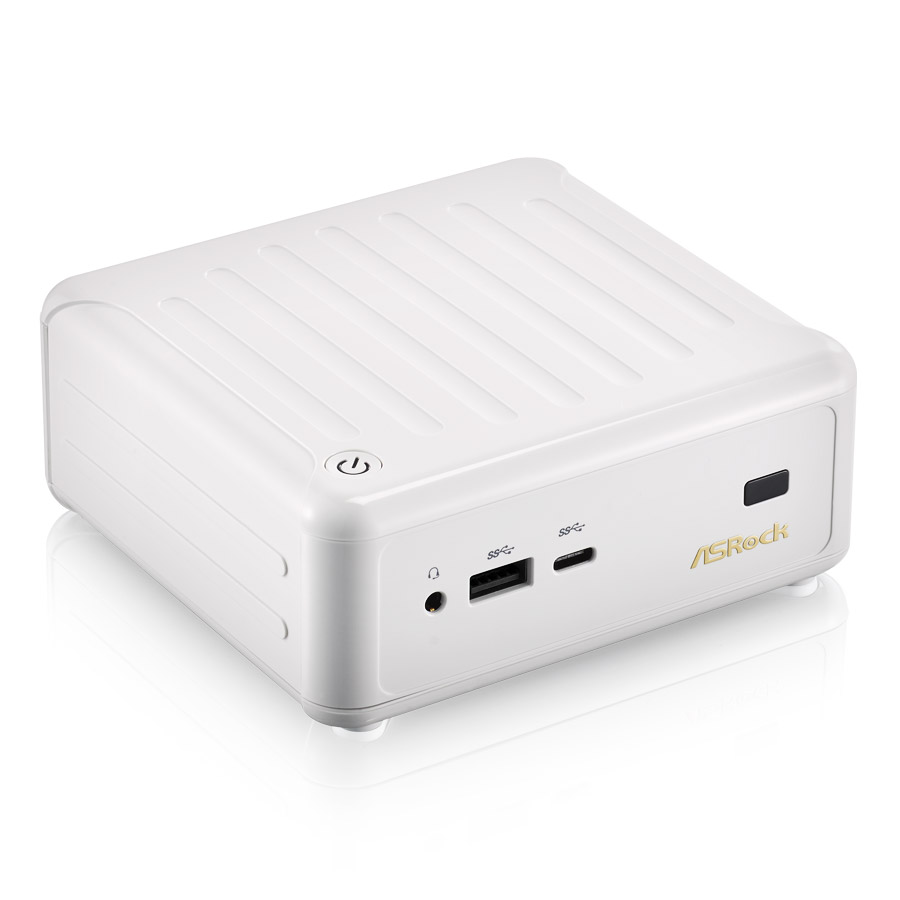

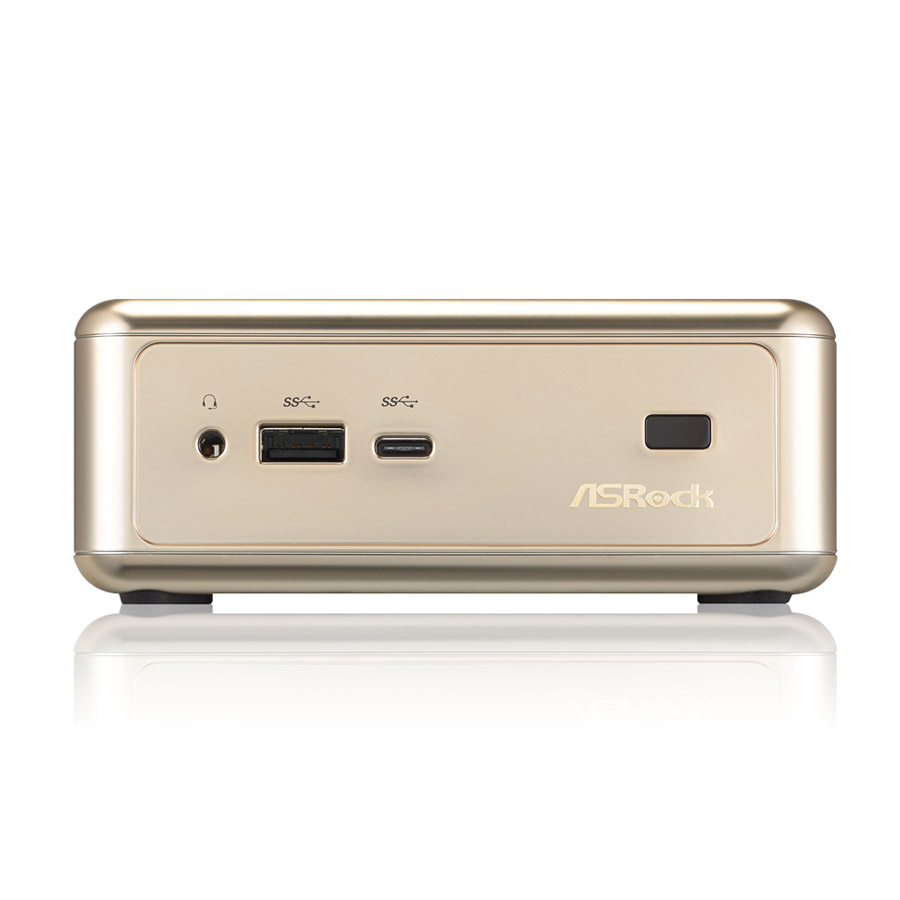

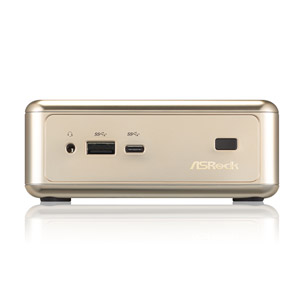

|Front I/O||1 x USB 3.0, 1 x USB 3.0 (Type C), 1 x IR, 1 x Audio-Out with MIC-In|

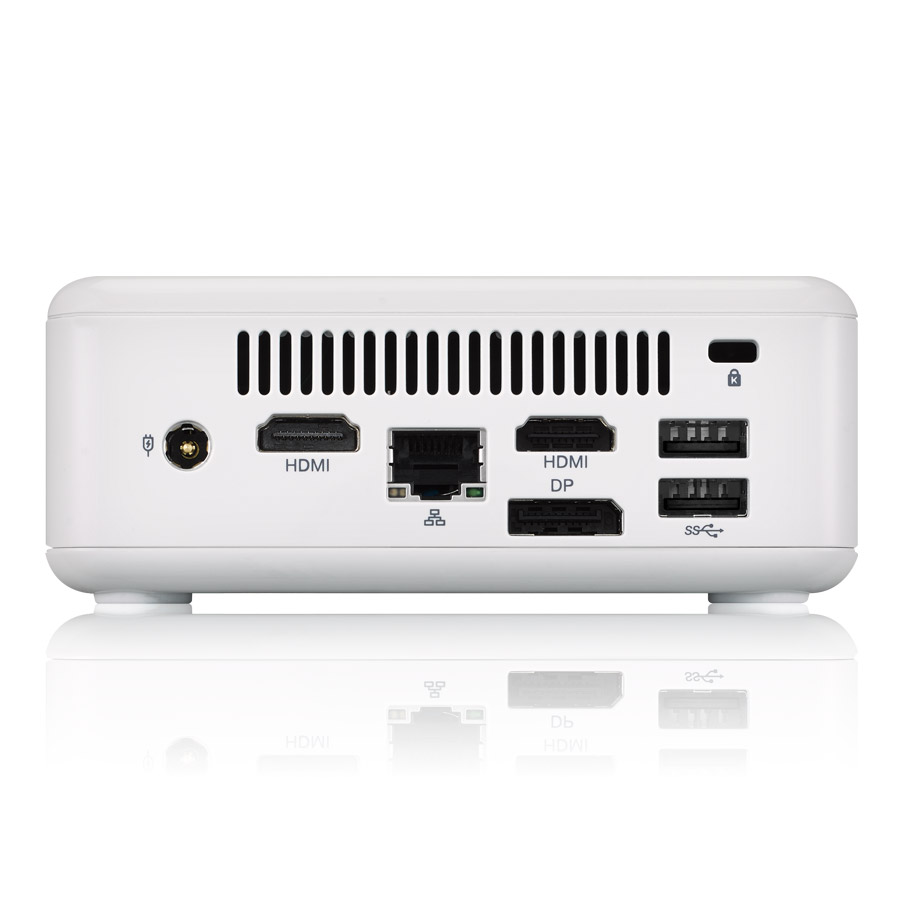

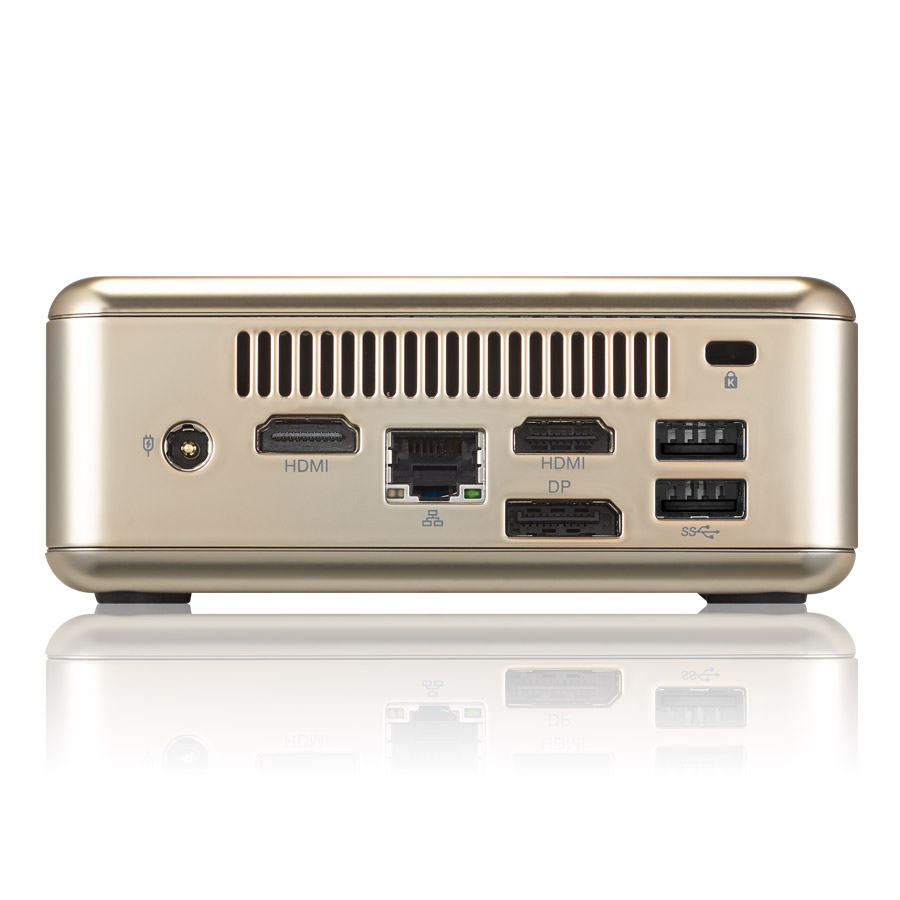

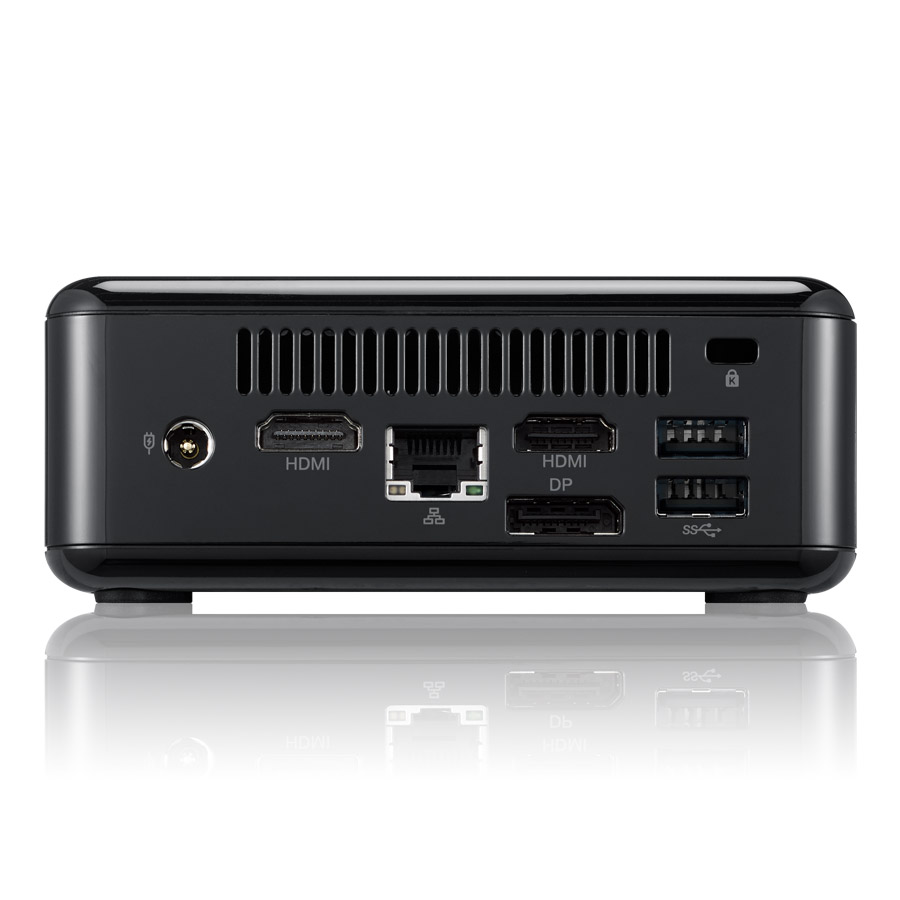

|Rear I/O||2 x HDMI, 1 x DP, 2 x USB 3.0, 1 x LAN, 1 x Kensington lock|
|Power Unit||36W/12V Adapter|
|Dimension||110mm (W) x 46mm (H) x 118.5mm (L)|
|VESA||Bracket included, supports 75 x 75 and 100 x 100 mm|
